Instrument Panel Bulb: Service and Repair

REMOVAL AND INSTALLATION

Instrument Cluster Illumination Lamps:

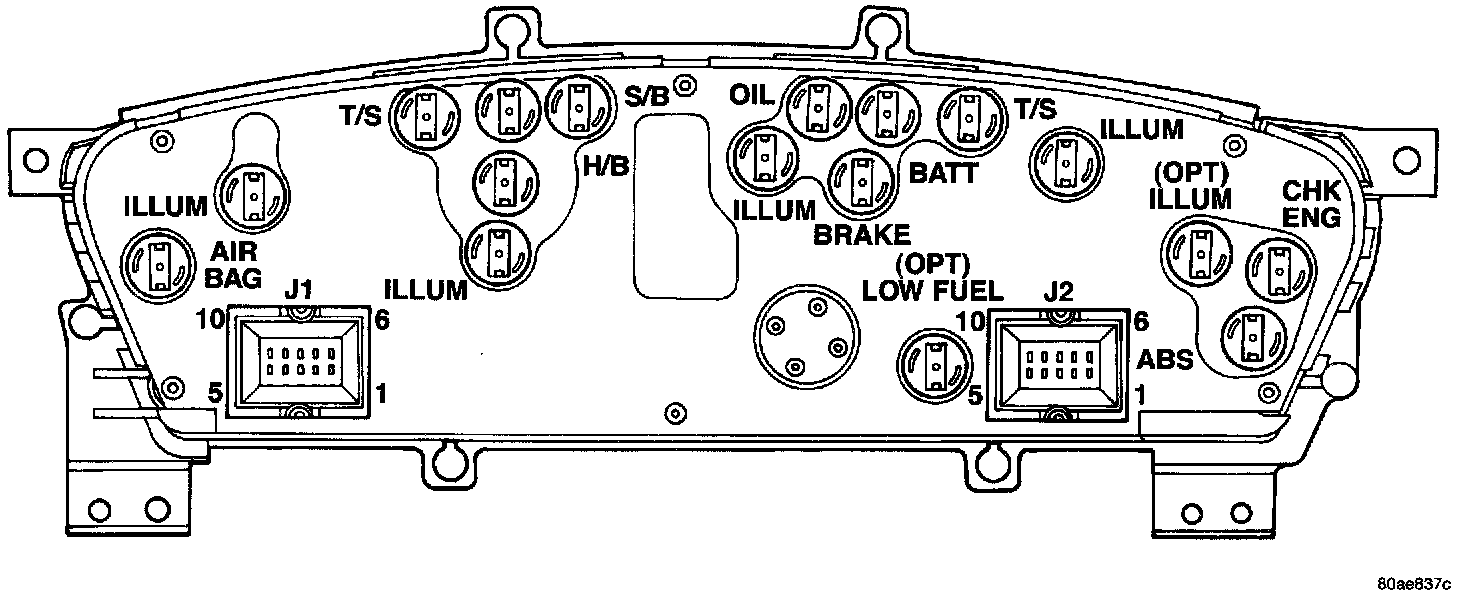

The Instrument Cluster illumination Lamps location as shown. The cluster is viewed from the rear. To replace lamp(s), the cluster must be removed. Refer to Cluster Replacement.
