Home >> Dodge >> 1999 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Testing and Inspection >> Blower Motor Electrical Diagnosis

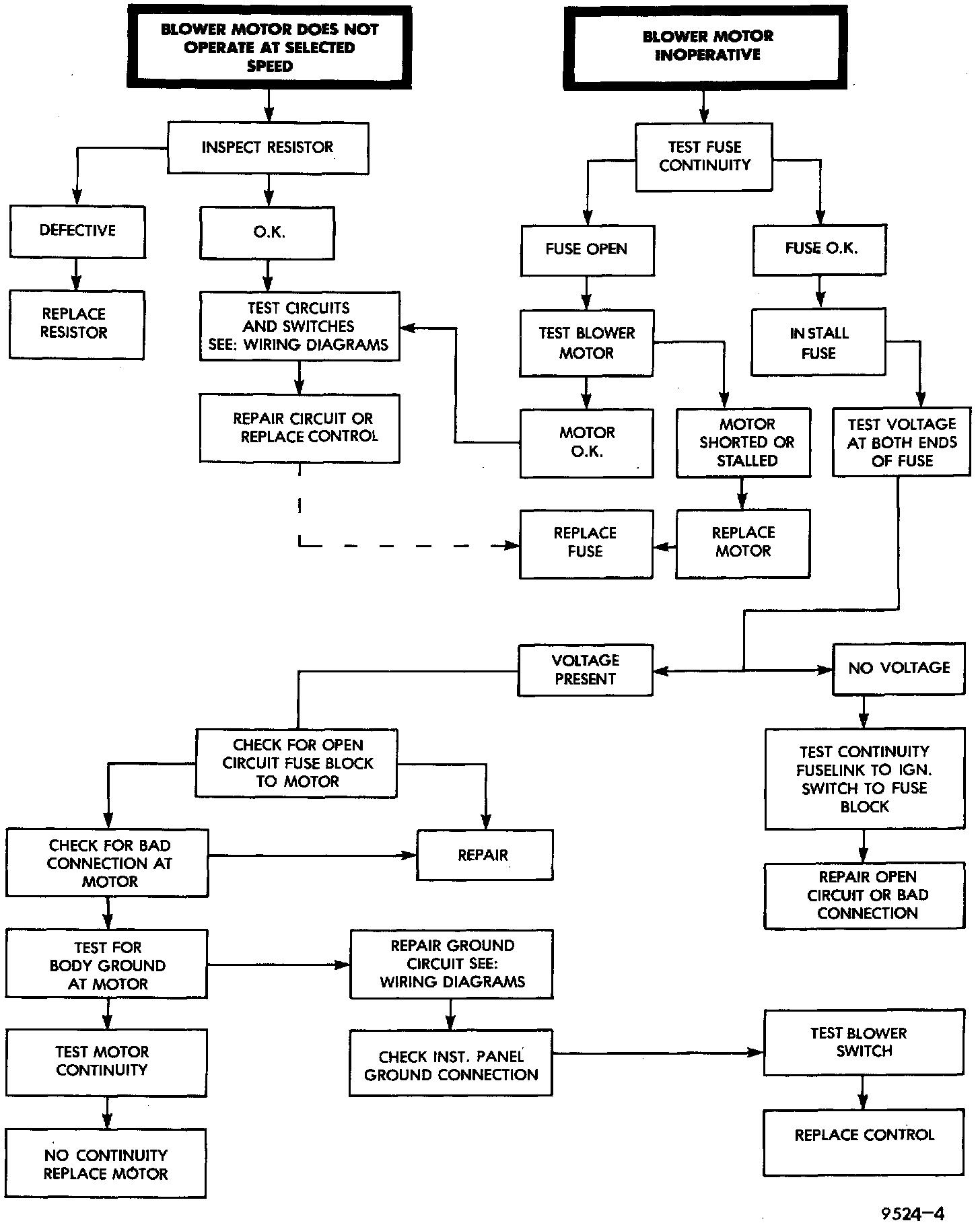

Blower Motor Electrical Diagnosis

Blower Motor Electrical Diagnosis:
