Blower Motor and Wheel Assembly Replacement

The blower motor is located on the bottom right side of the unit housing. The blower motor can be removed from the vehicle without having to remove the unit housing assembly.

With Air Conditioning
REMOVAL
1. Remove right side scuff plate.
2. Pull back carpet.
3. Cut wheel housing silencer in line with blower motor wiring.
4. Disconnect blower motor wiring connector.

Blower Motor Retaining Screws:

5. Remove three blower motor retaining screws.
6. Lower blower motor assembly from unit housing.

INSTALLATION
For installation, reverse the above procedures. Then tape silencer into position.

Without Air Conditioning
REMOVAL
1. Disconnect blower motor wiring connector.

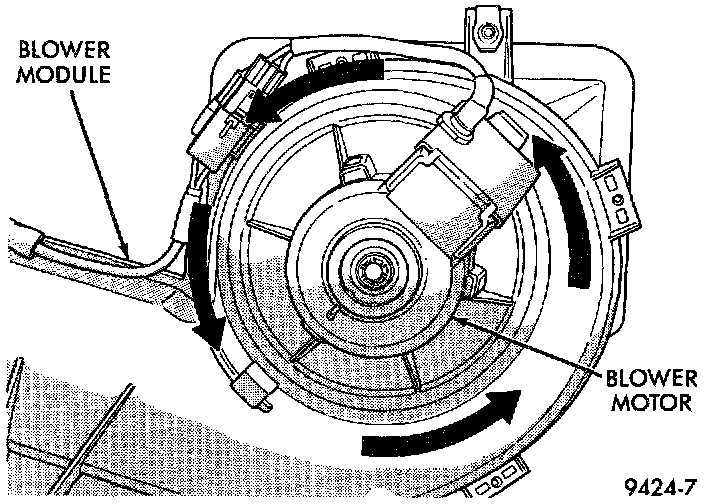

Blower Motor And Module:

2. Grasp the blower motor while pulling down tab. Turn approximately 1/8 turn counterclockwise and remove blower motor assembly from unit housing.

INSTALLATION
For installation, reverse the above procedures.
