Blower Motor Resistor: Description and Operation

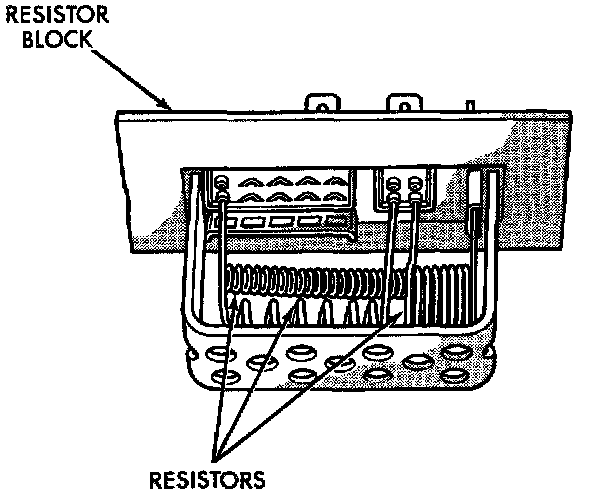

Resistor Block:

SYSTEM OPERATION
The blower motor resistor is located in the cowl, at the base of the windshield. There are two different resistor blocks depending on whether the vehicle is equipped with A/C or not. The blower motor resistors will get hot when in use. Do not touch resistor block if the blower motor has been running.
