Mode Control Cable Replacement

The Mode Control Cable can be removed and installed without having to remove the instrument panel from the vehicle.

REMOVAL
1. Remove instrument panel upper cowl panel.

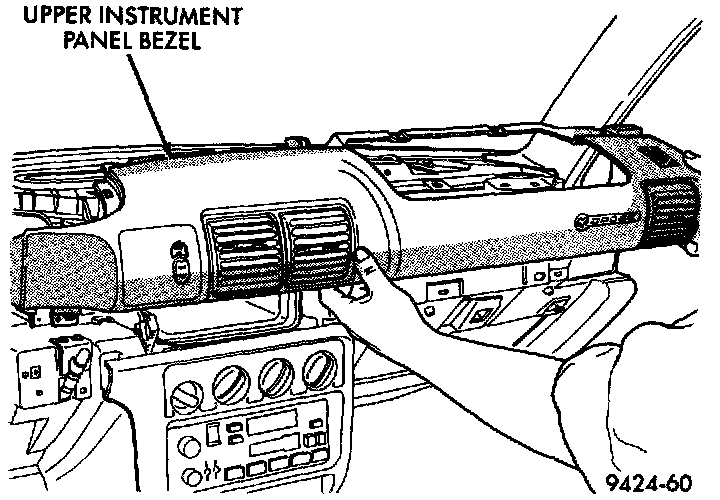

Bezel Removal:

2. Remove right side upper instrument panel bezel.

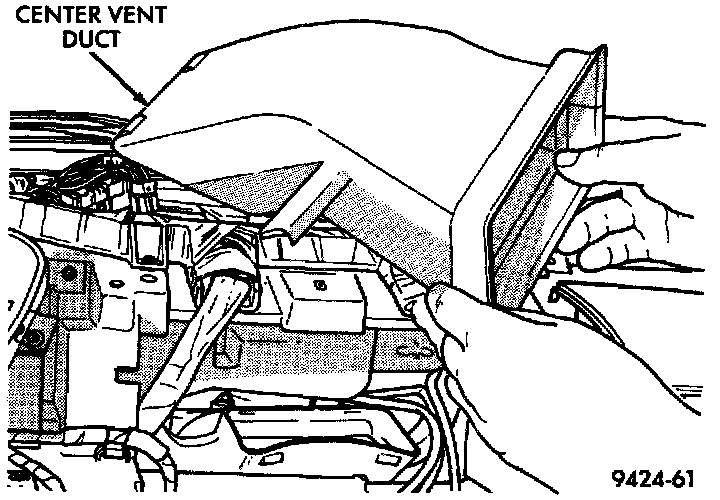

Instrument Panel Center Vent:

3. Remove center vent duct.

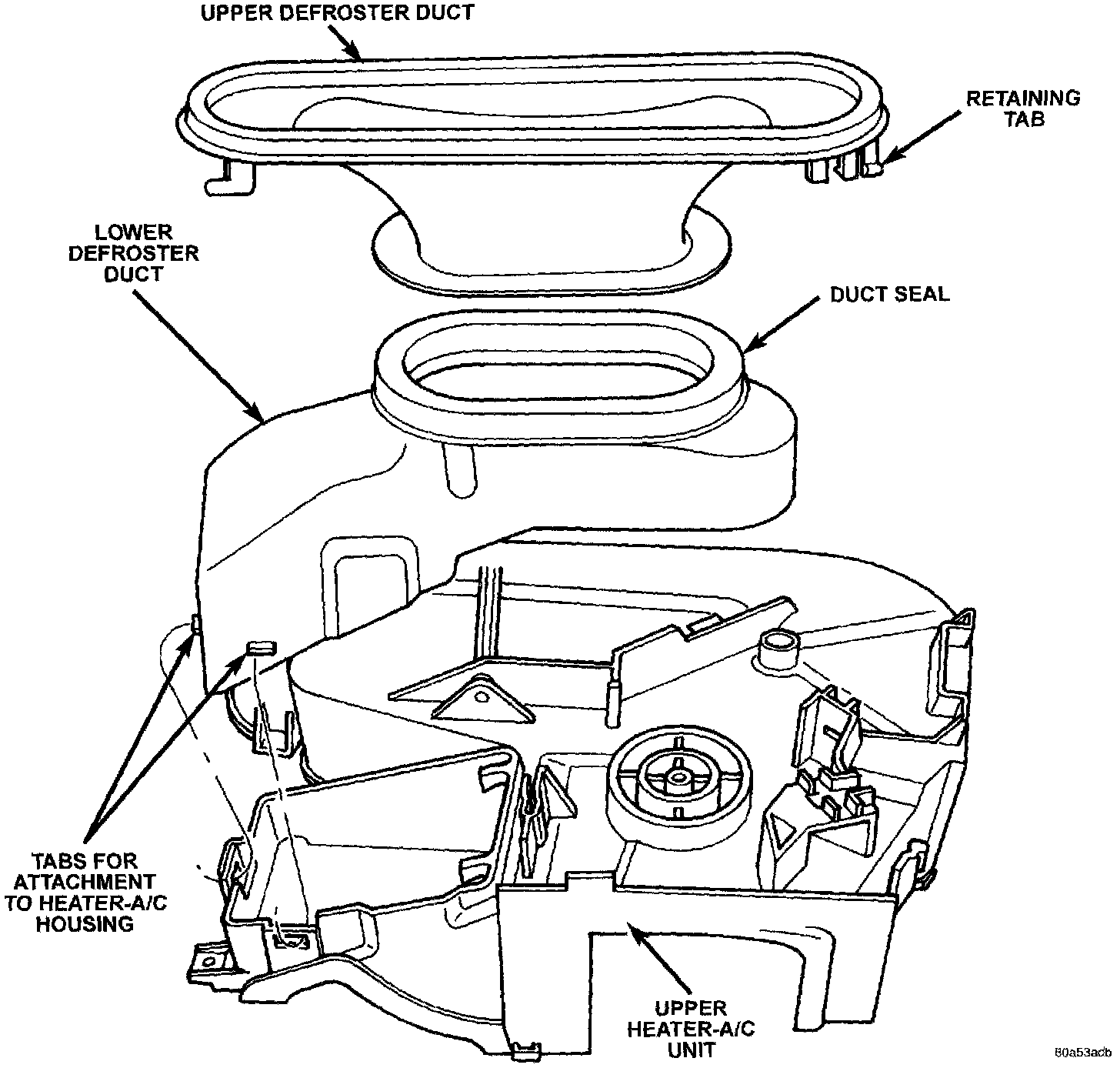

Instrument Panel Defrost Duct:

4. Remove upper defrost duct.

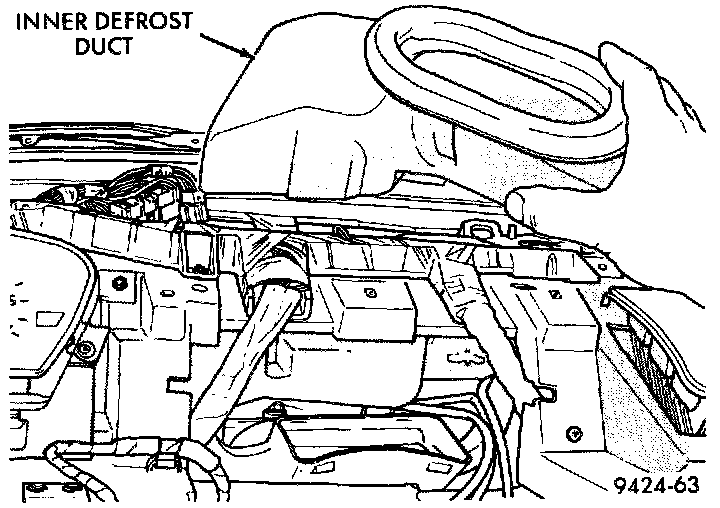

Instrument Panel Inner Defrost Duct:

5. Remove inner defrost duct.
6. Disconnect cable at heater unit.
7. Disconnect cable at control panel.
8. Remove cable from vehicle.

INSTALLATION
- For installation, reverse the above procedures, adjust cable and test.
