REMOVAL
1. Remove front timing belt cover.
2. Remove timing belt.

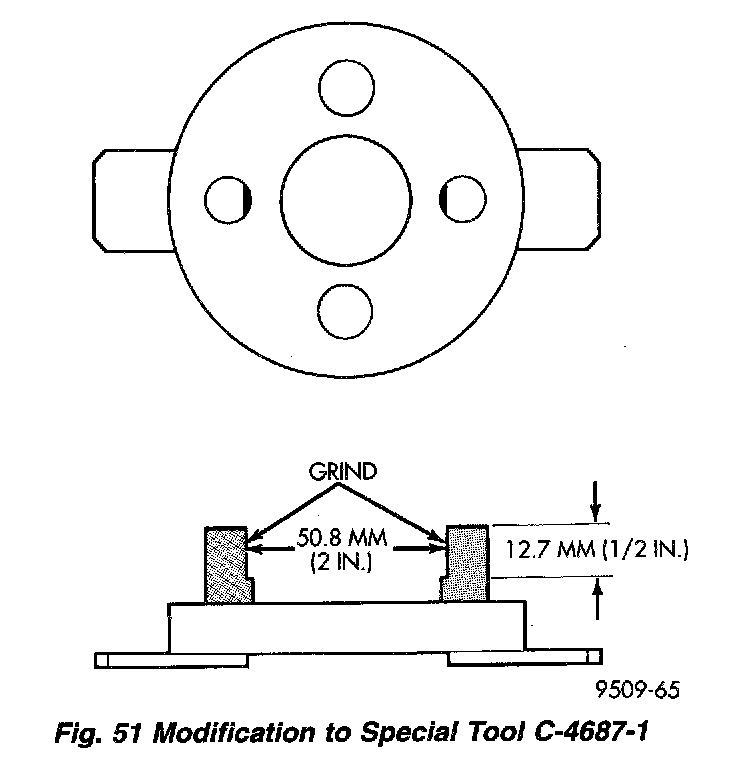

Figure 51:

3. Hold camshaft sprocket with Special Tools C-4687 and modified Adapter C-4687-1 (Fig. 51), while removing attaching bolts. Remove camshaft sprocket.
4. Remove timing belt tensioner assembly.
5. Remove rear timing cover attaching screws.
6. Remove rear timing cover.

INSTALLATION
1. Install rear timing cover.
2. Install camshaft sprockets. While holding sprockets with Special Tools C-4687 and modified Adapter C-4687-1, tighten attaching bolts to 101 Nm (75 ft. lbs.).
3. Install timing belt tensioner assembly.
4. Install timing belt.
5. Install front timing belt cover.
