REMOVAL
1. Remove accessory drive belts.

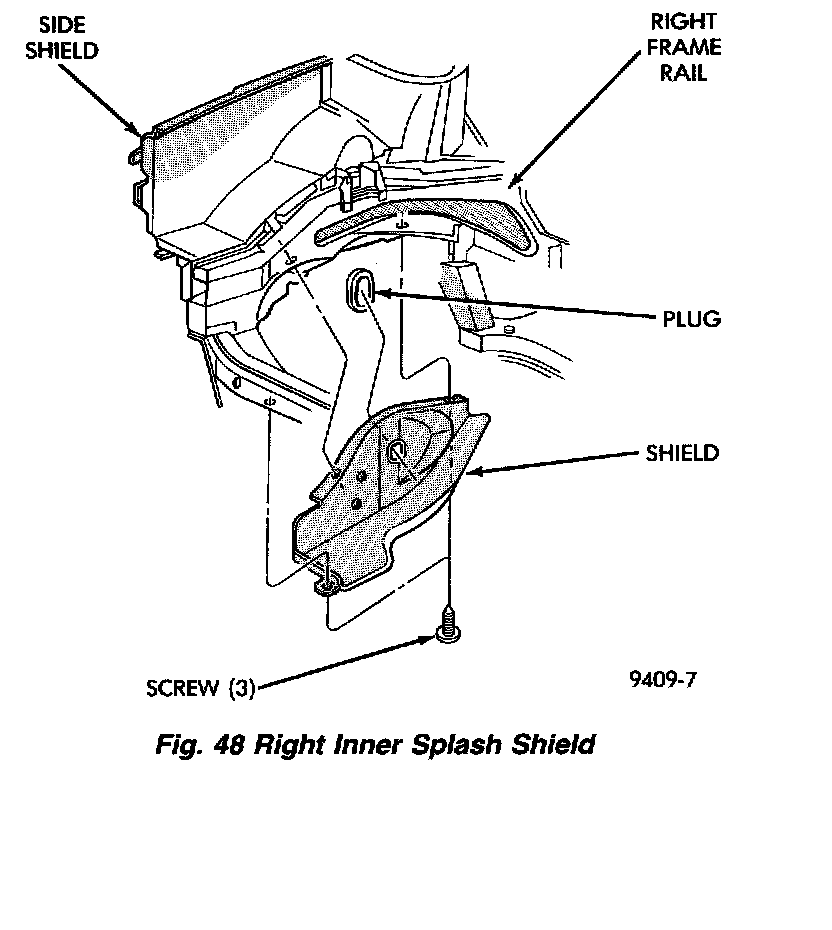

Figure 48:

2. Raise vehicle on a hoist and remove right inner splash shield (Fig. 48).
3. Remove crankshaft damper.
4. Lower vehicle and place a jack under engine.
5. Remove right engine mount.
6. Remove power steering pump assembly and set aside.

Figure 49:

7. Remove right engine mount bracket (Fig 49).

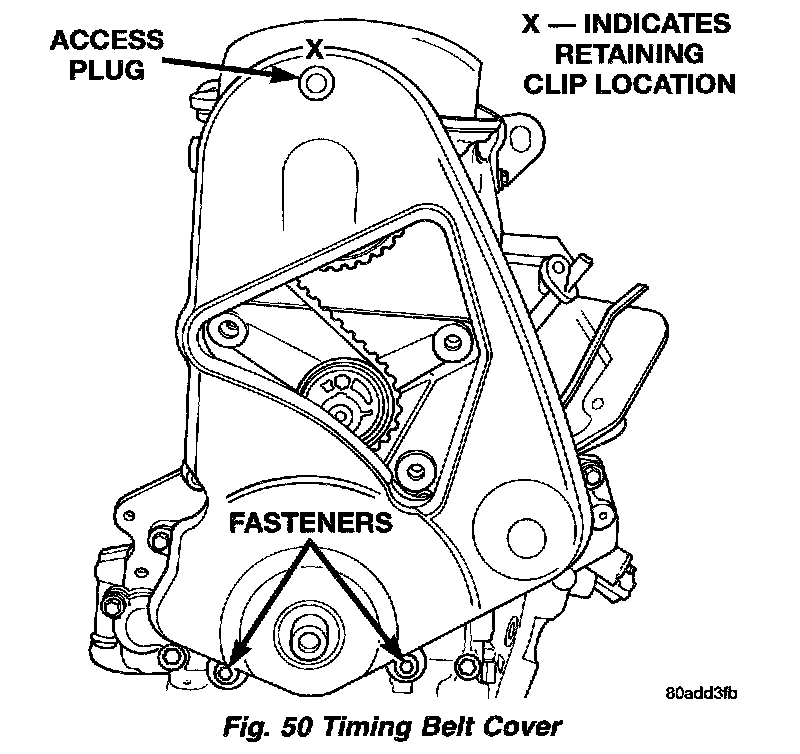

Figure 50:

8. Remove front timing belt cover (Fig. 50).

INSTALLATION
1. Install front timing cover.
2. Install engine mount bracket.
3. Install power steering pump assembly.
4. Install right engine mount.
5. Remove jack from under engine.
6. Install crankshaft damper
7. Install accessory drive belts.
8. Raise vehicle on hoist and install right inner splash shield.
