Right Mount

1. Remove the purge duty solenoid from engine mount bracket.

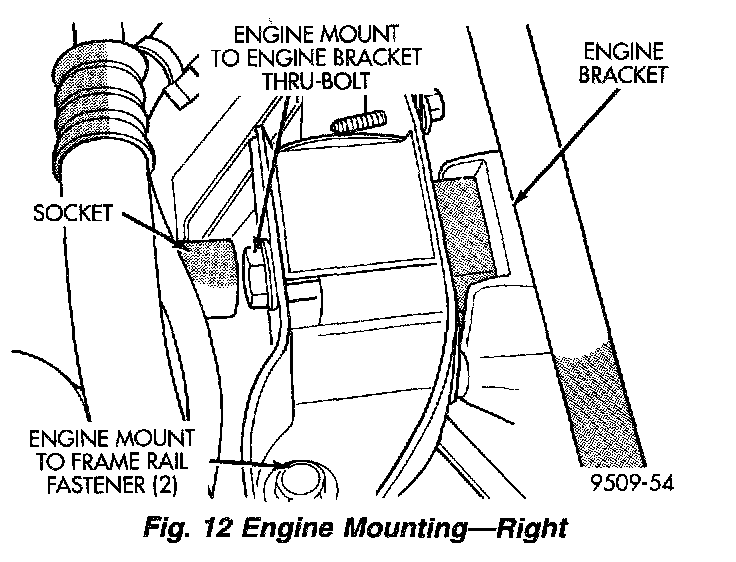

Figure 12:

2. Remove the right engine mount insulator vertical fasteners from frame rail (Fig. 12).
3. Remove the load on the engine mounts by carefully supporting the engine and transmission assembly with a floor jack.
4. Remove the thru-bolt access hole cover. Remove the thru-bolt from the insulator assembly. Remove insulator.
5. Reverse removal procedure for installation. Tighten engine mount to rail fasteners to 54 Nm (40 ft. lbs.), then tighten engine mount to engine bracket thru-bolt to 108 Nm (80 ft. lbs.).
