Left Mount

1. Raise vehicle on hoist and remove left front wheel.
2. Remove the Power Distribution Center (PDC) on manual transaxle model, from battery tray mount and lay aside.
3. Support the transmission with a transmission jack.

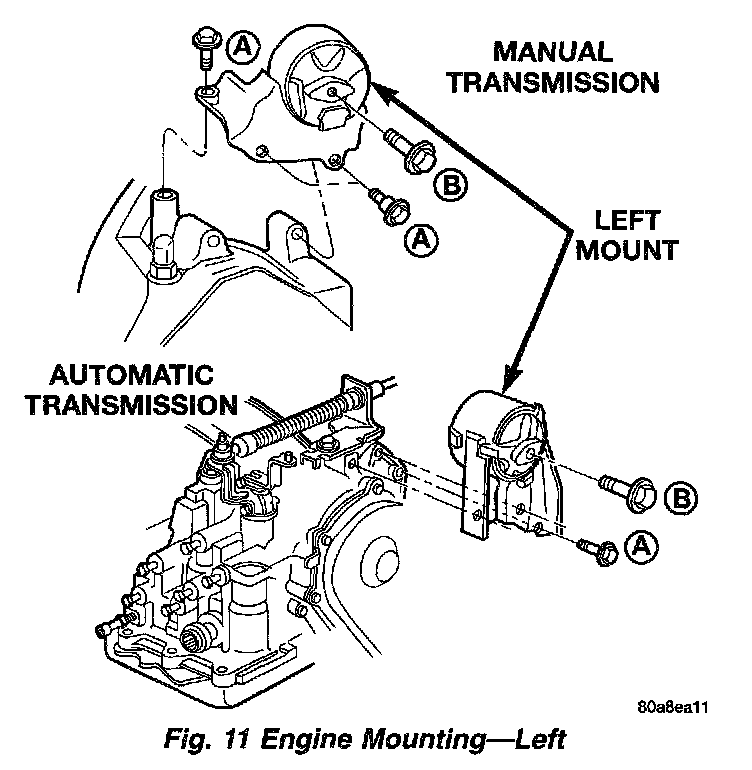

Figure 11:

4. Remove the thru-bolt access hole cover. Remove the insulator thru-bolt from the mount (Fig. 11).
5. Remove the transmission mount fasteners and remove mount.
6. Reverse removal procedure for installation. Tighten fasteners in this order:
a. 55 Nm (40 ft. lbs.)
b. 108 Nm (80 ft. lbs.)
