Front Mount

1. Raise vehicle on hoist.
2. Support the engine and transmission assembly with a floor jack so it will not rotate.

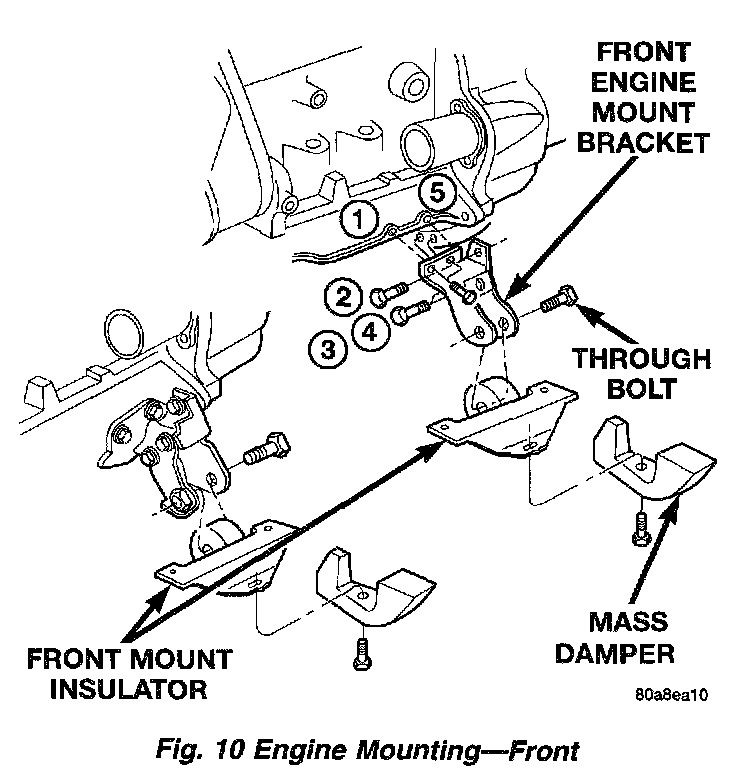

Figure 10:

3. Remove the front engine mount thru-bolt from the insulator and engine mount bracket (Fig. 10).
4. Remove the mass damper. Remove the front mount nuts and remove insulator assembly.
5. Remove the engine mount bracket, if necessary.
6. Reverse removal procedure for installation and tighten fasteners in this order.
a. If engine mount bracket was removed, tighten bolt 1 to 3 Nm (20 inch lbs.) and bolts 2, 3 and 4 to 108 Nm (80 ft. lbs.).
b. If engine mount bracket was removed, tighten bolts 5 and 1 to 54 Nm (40 ft. lbs.).
c. Tighten engine mount bracket to insulator assembly thru-bolt to 54 Nm (40 ft. lbs.).
d. Tighten insulator assembly nuts to the lower radiator crossmember torque to 54 Nm (40 ft. lbs.).
e. Install mass damper and tighten to 54 Nm (40 ft. lbs.).
