Engine Torque Strut: Service and Repair

NOTE: Power hop damper is used on manual transmission vehicle only.

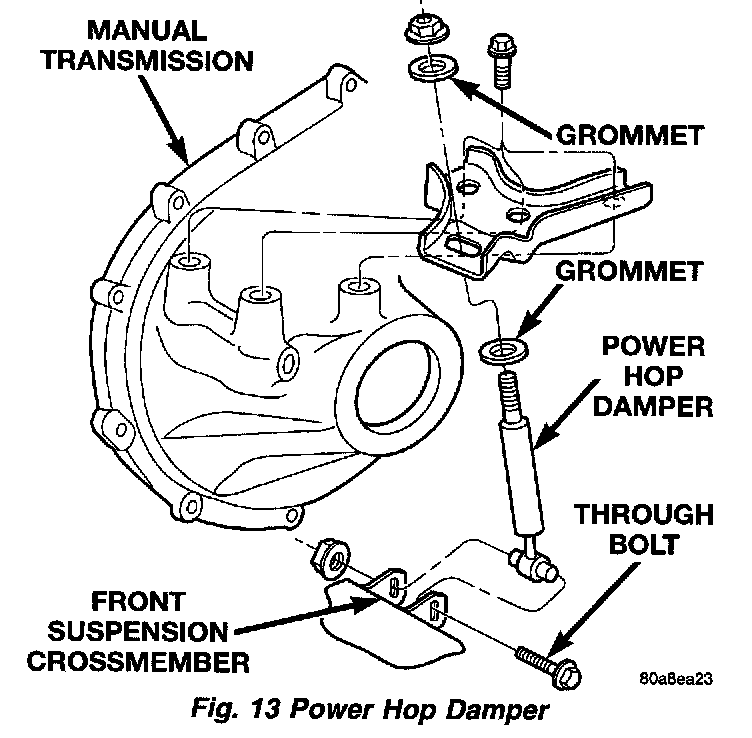

Figure 13:

1. Remove the thru-bolt and nut from the front suspension crossmember (Fig. 13).
2. Remove the damper nut and grommets. Remove the damper.
3. Remove the power hop damper bracket, if necessary.
4. Reverse removal procedure for installation. Tighten all bolts and nuts to 54 Nm (40 ft. lbs.).
