Home >> Dodge >> 1999 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Crankshaft >> Service and Repair >> Service Procedures >> Fitting Bearings

Fitting Bearings

Refer to Measuring Main Bearing Clearance in Standard Service Procedures found under Engine, Service and Repair. Refer to Crankshaft Specification Chart for specifications.

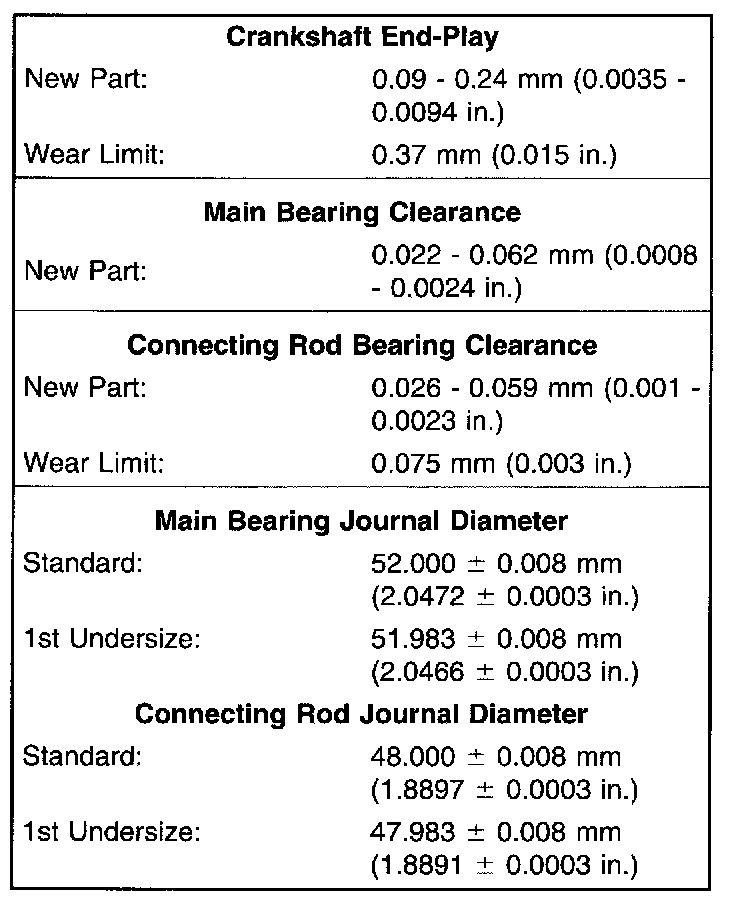

CRANKSHAFT SPECIFICATION CHART
