Home >> Dodge >> 1999 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> ** Symptom Charts

** Symptom Charts

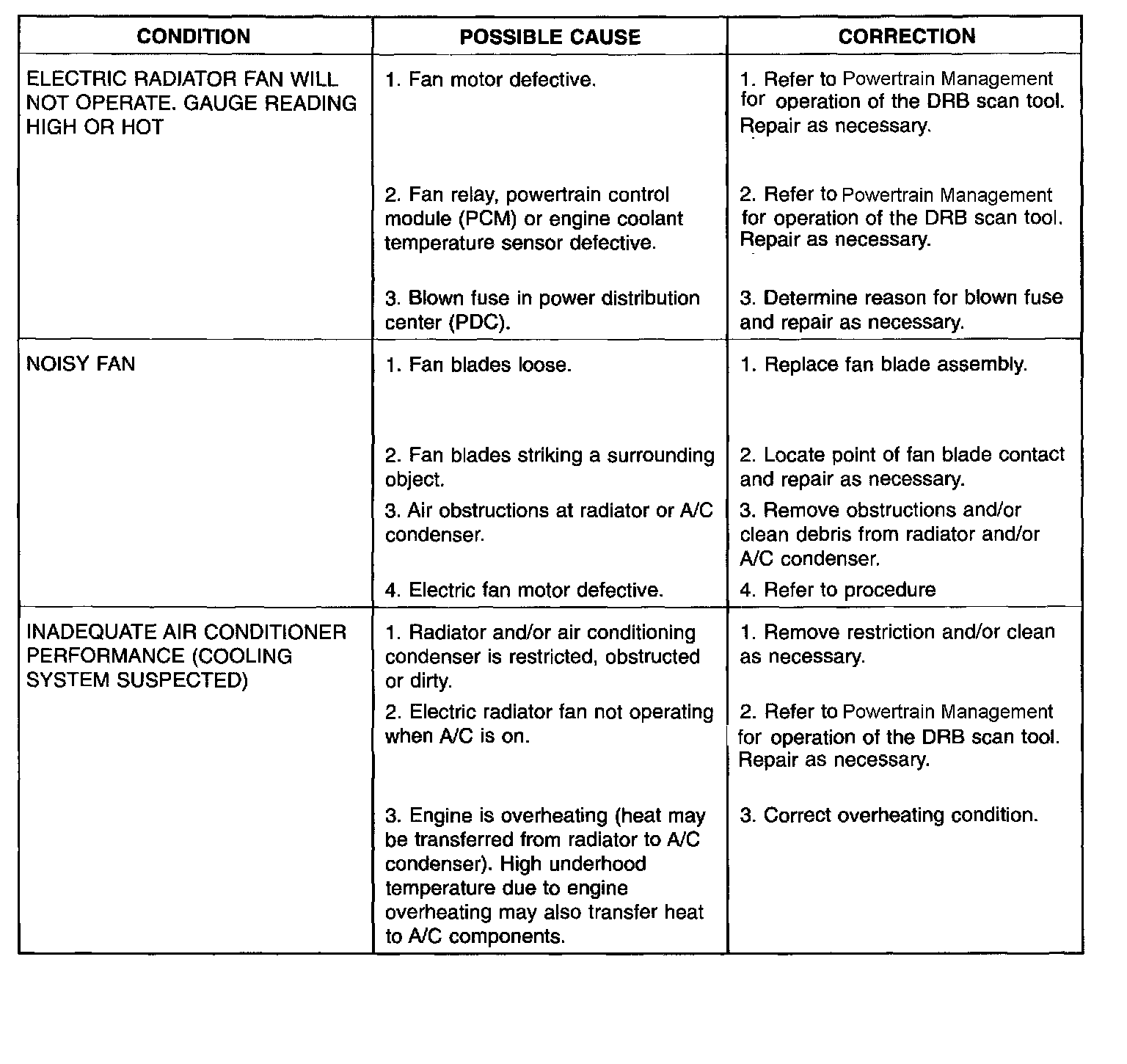

Part 1 Of 7:

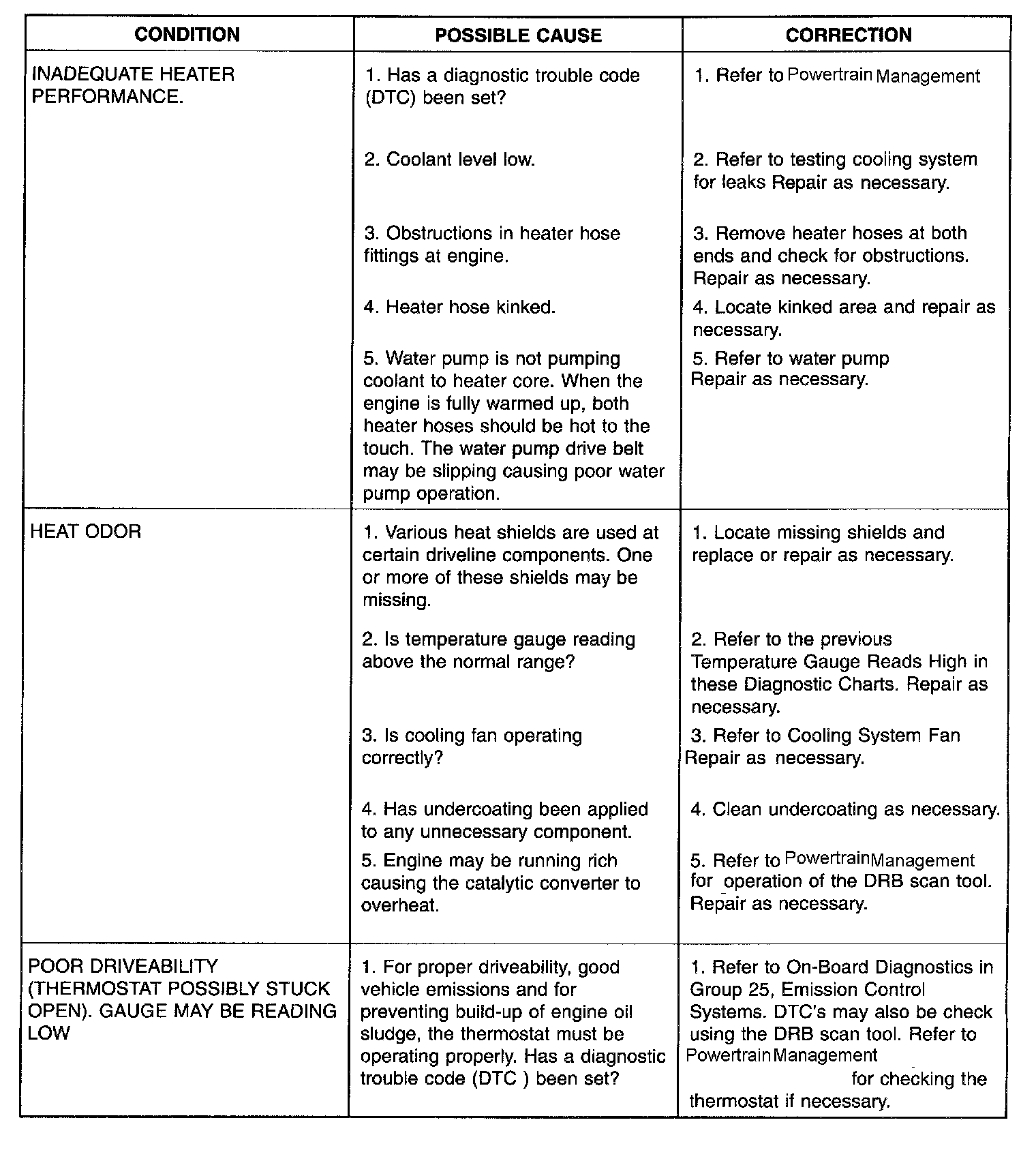

Part 2 Of 7:

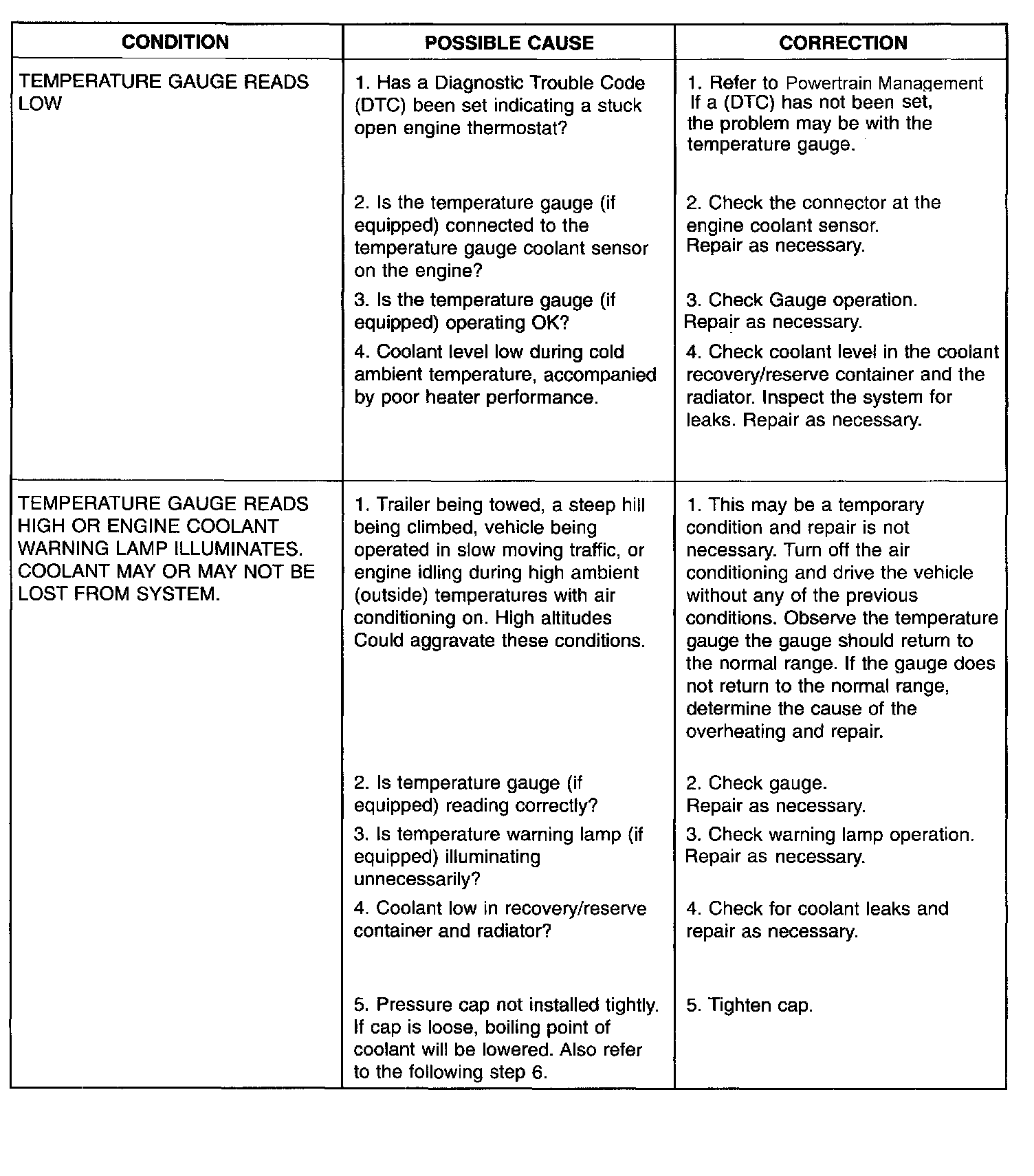

Part 3 Of 7:

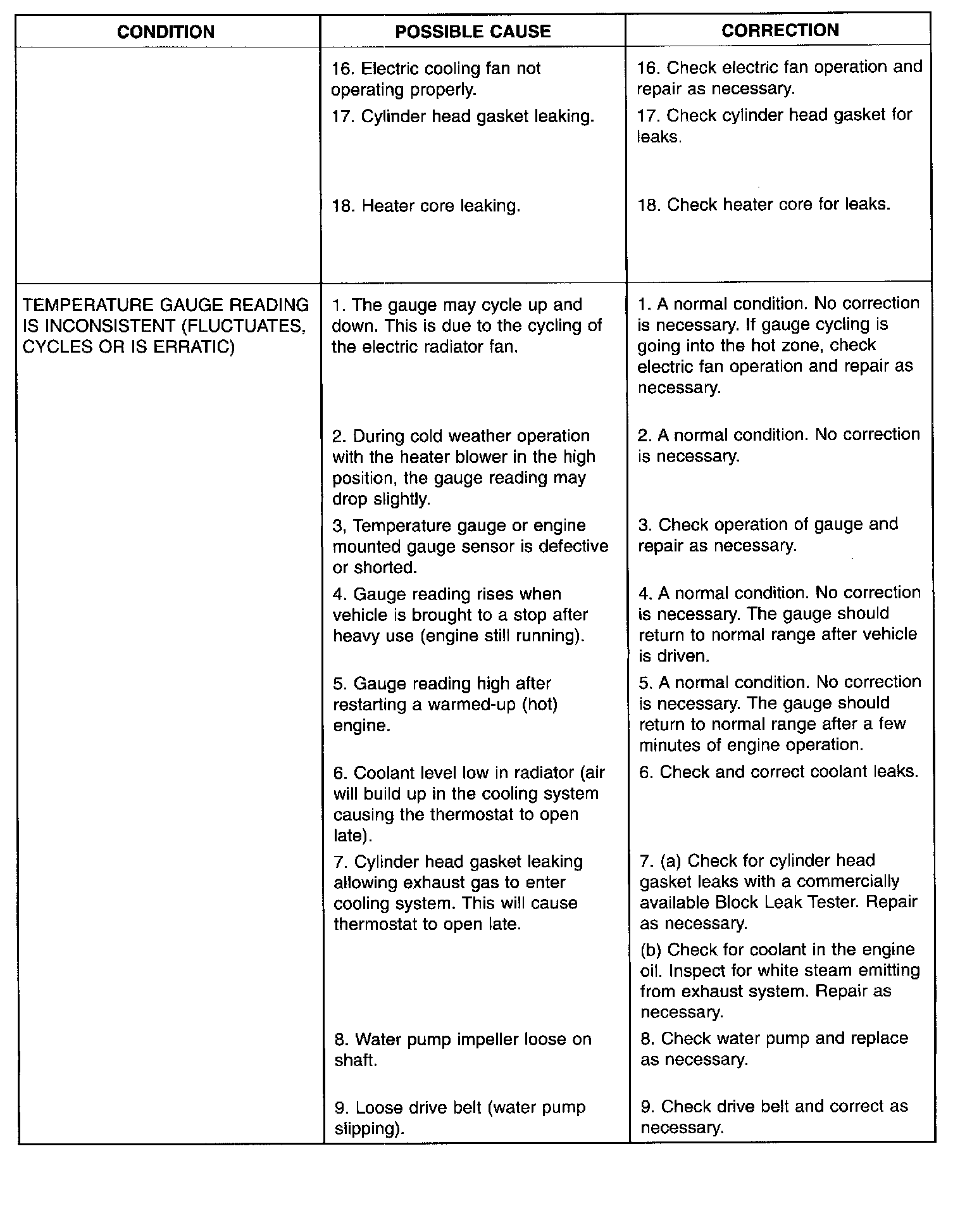

Part 4 Of 7:

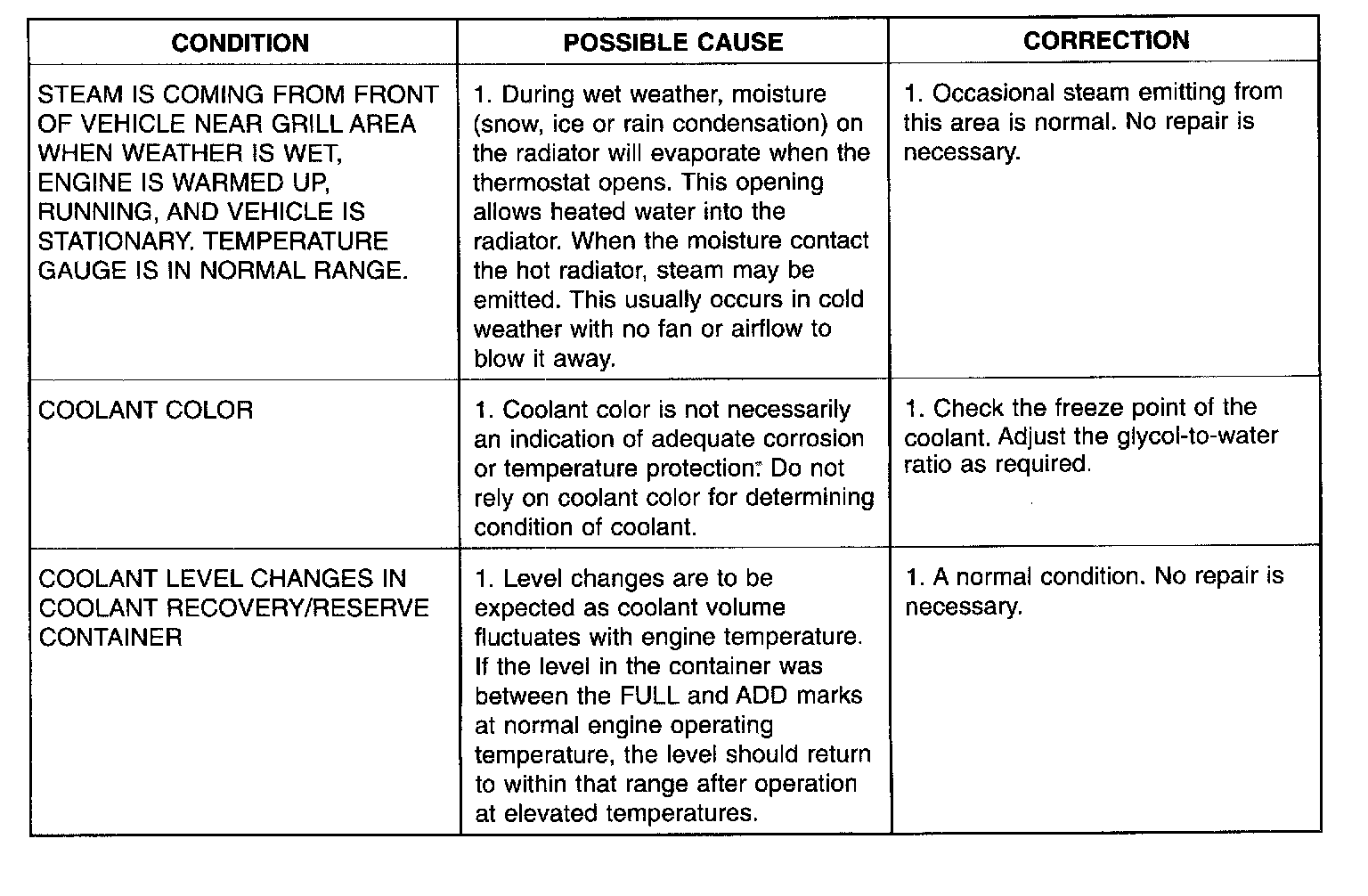

Part 5 Of 7:

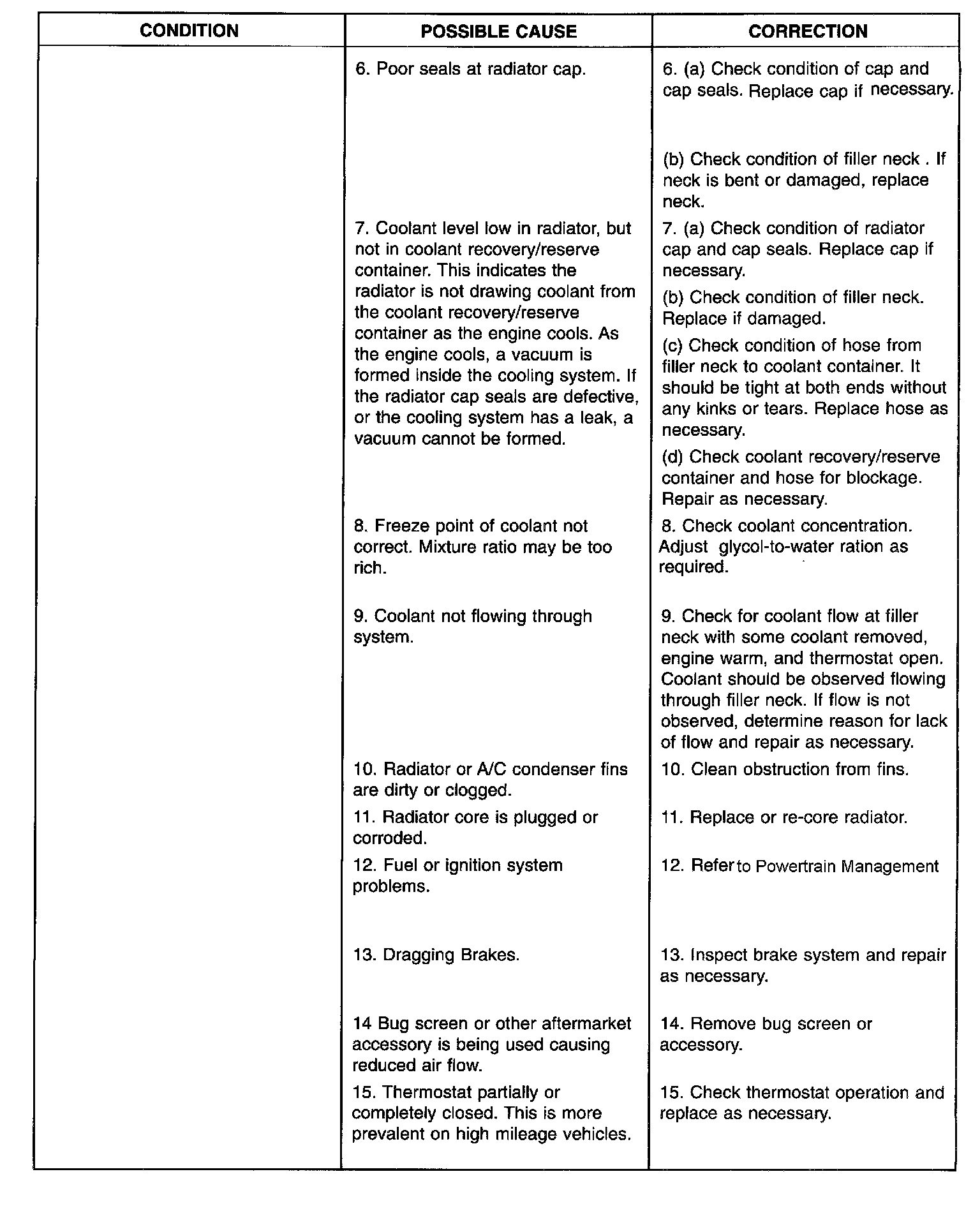

Part 6 Of 7:

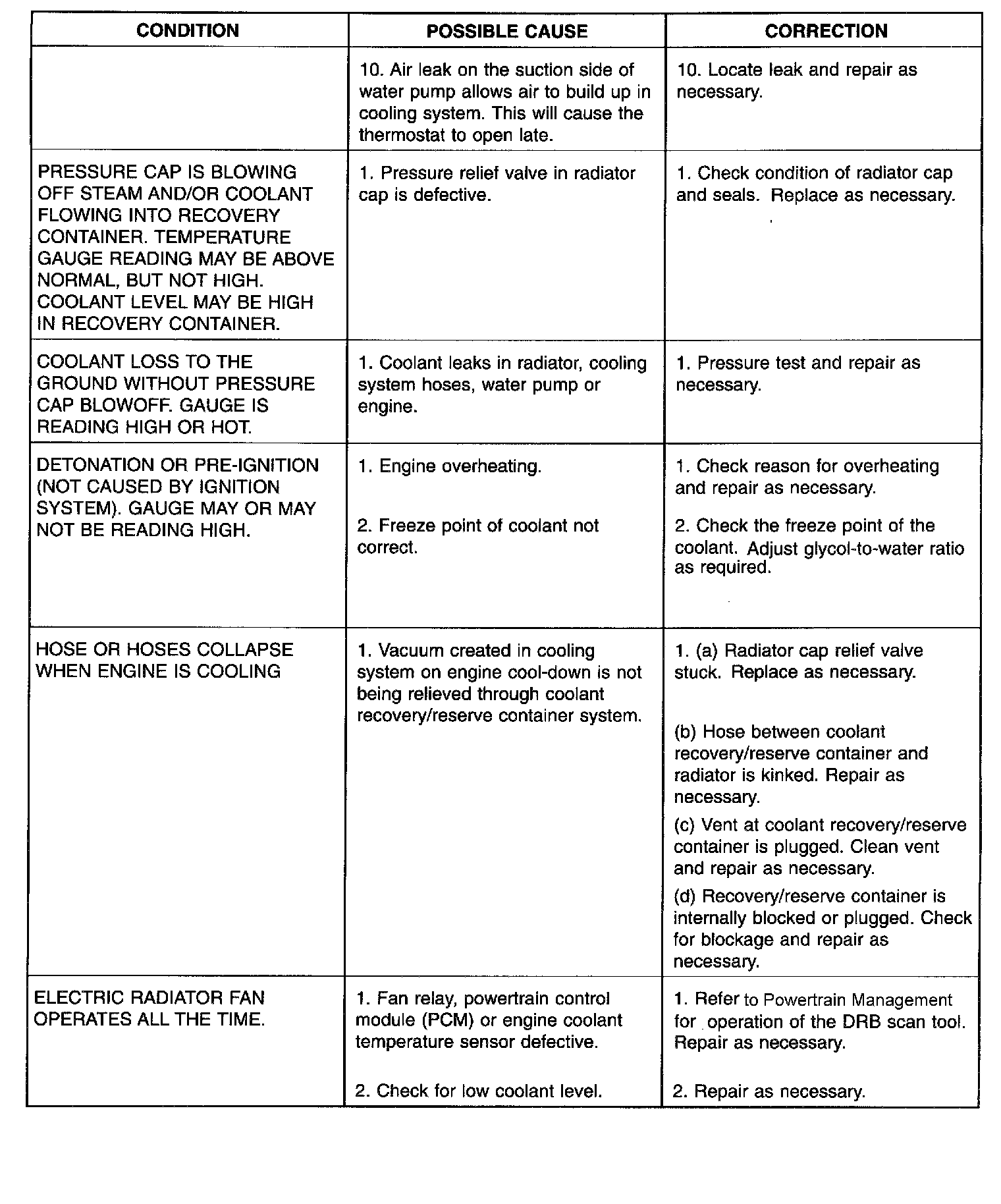

Part 7 Of 7:





COOLING SYSTEM DIAGNOSIS
