Radio/Stereo

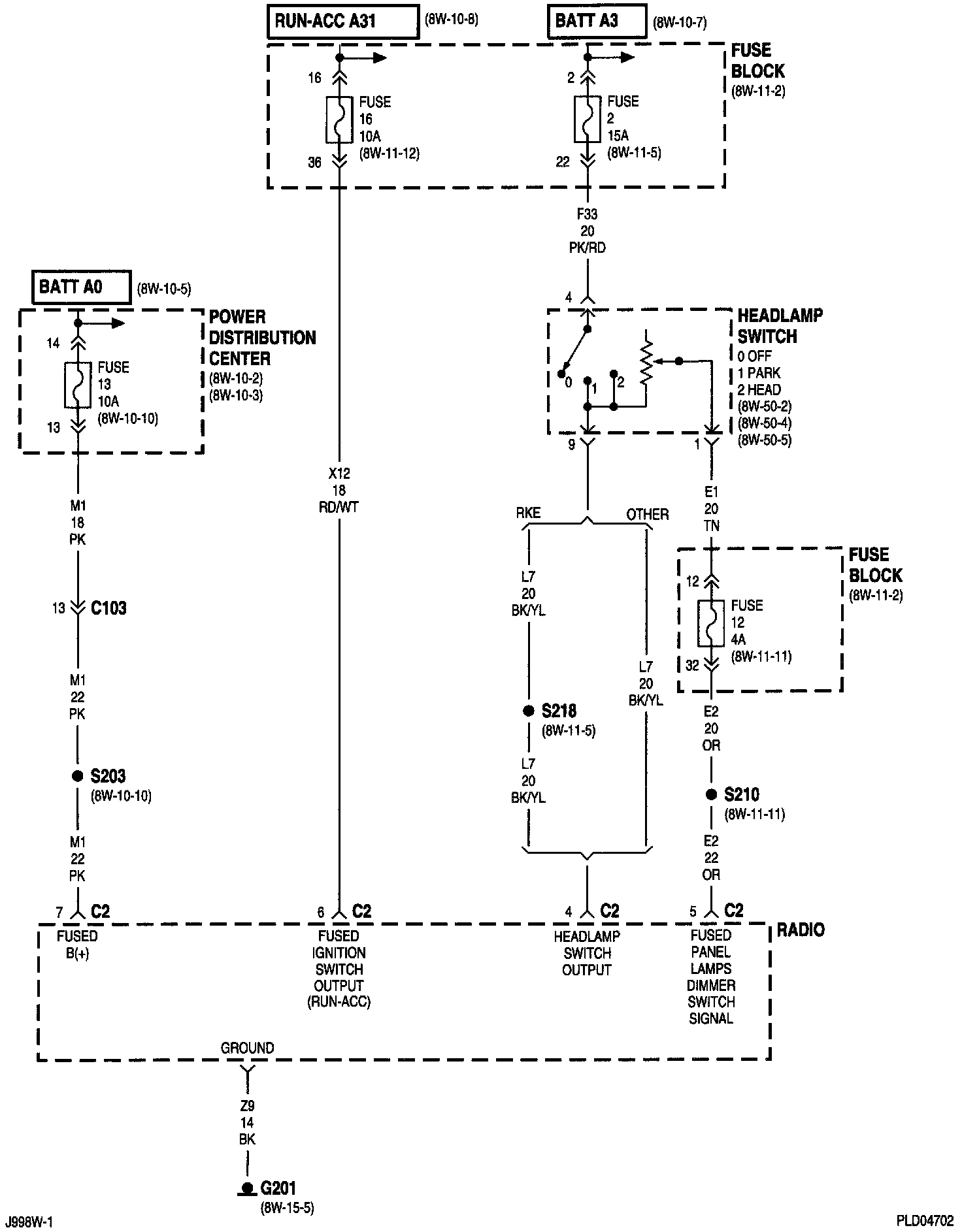

Audio System -- Sheet 8w-47-2:

Fuse 2 (FB)
Fuse 12 (FB)
Fuse 13 (PDC)
Fuse 16 (FB)
Fuse Block
G201
Headlamp Switch
Power Distribution Center
Radio

Audio System -- Sheet 8w-47-3:

G201
Radio
Right Front Door Speaker
Right Instrument Panel Speaker

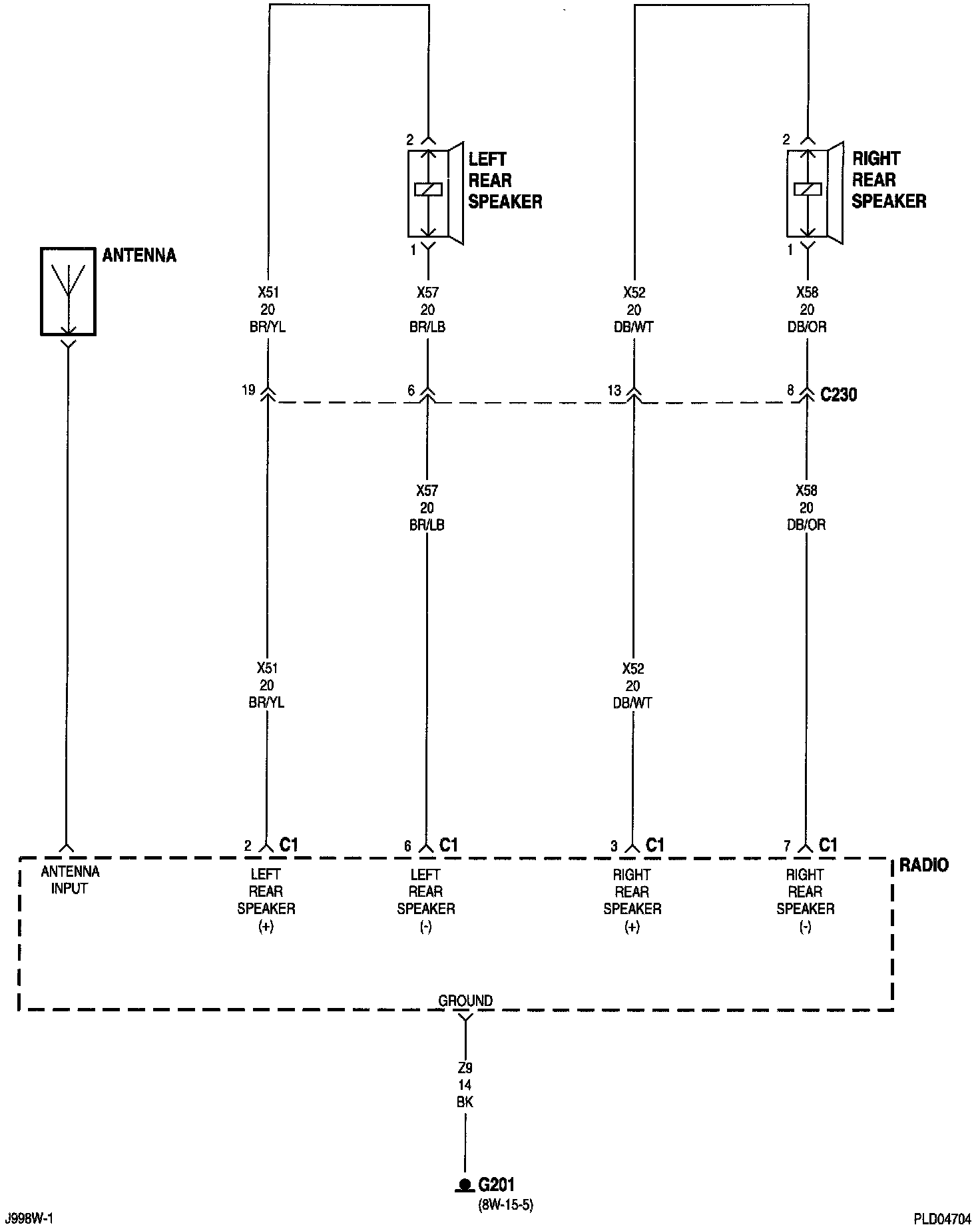

Audio System -- Sheet 8w-47-4:

Antenna
G201
Left Rear Speaker
Radio
Right Rear Speaker


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number
