Home >> Dodge >> 1999 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module >> Powertrain Control Module C2 - Black 80 Way

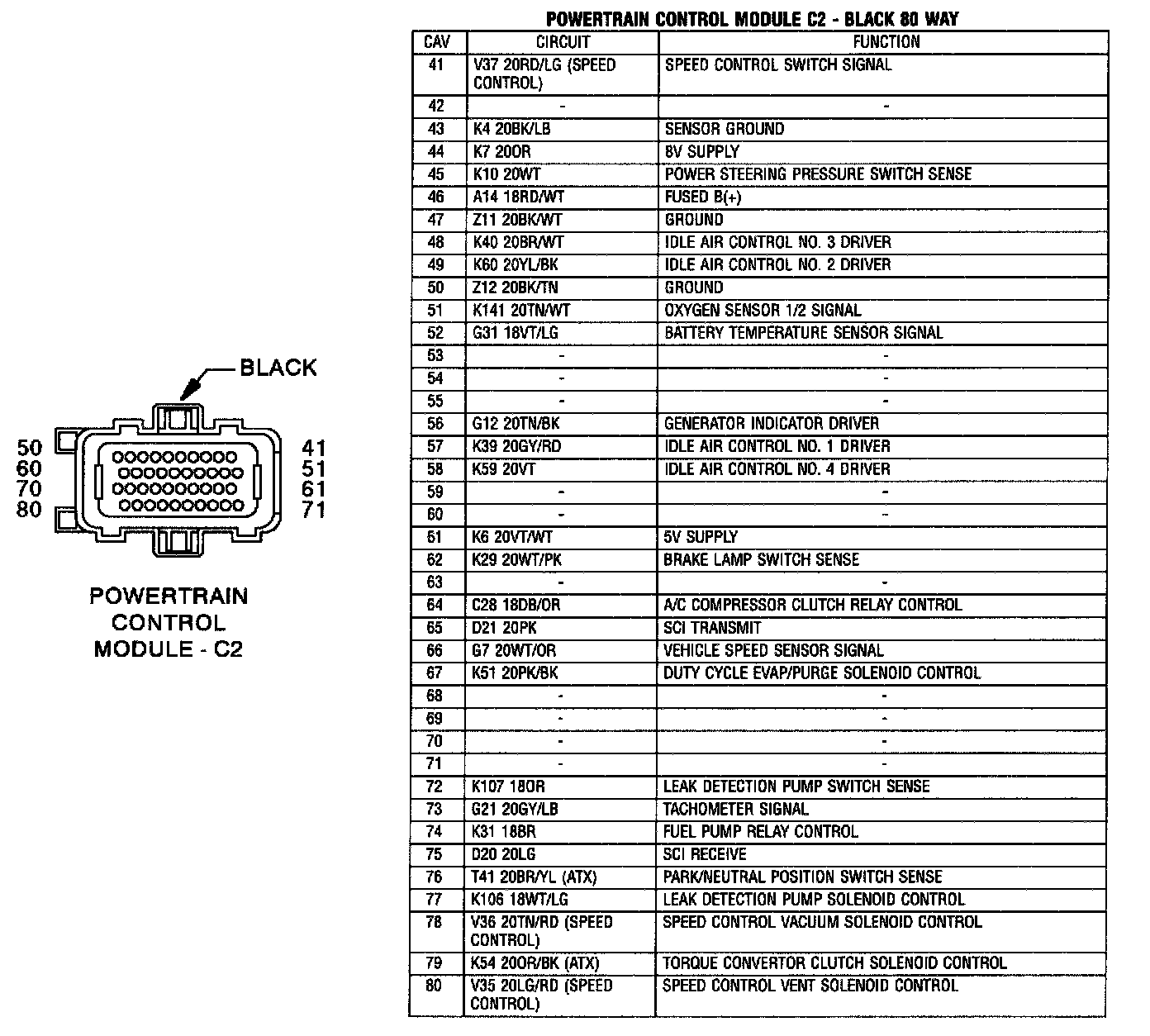

Powertrain Control Module C2 - Black 80 Way
