Proportioning Valve - Pressure Adapter Tool Revision

NUMBER:
05-03-00

GROUP:
Brakes

DATE:
April 14, 2000

SUBJECT:
Proportioning Valve Brake Pressure Adapter Tool Revision

MODELS:
1995-1999 (PL) Neon

DISCUSSION:

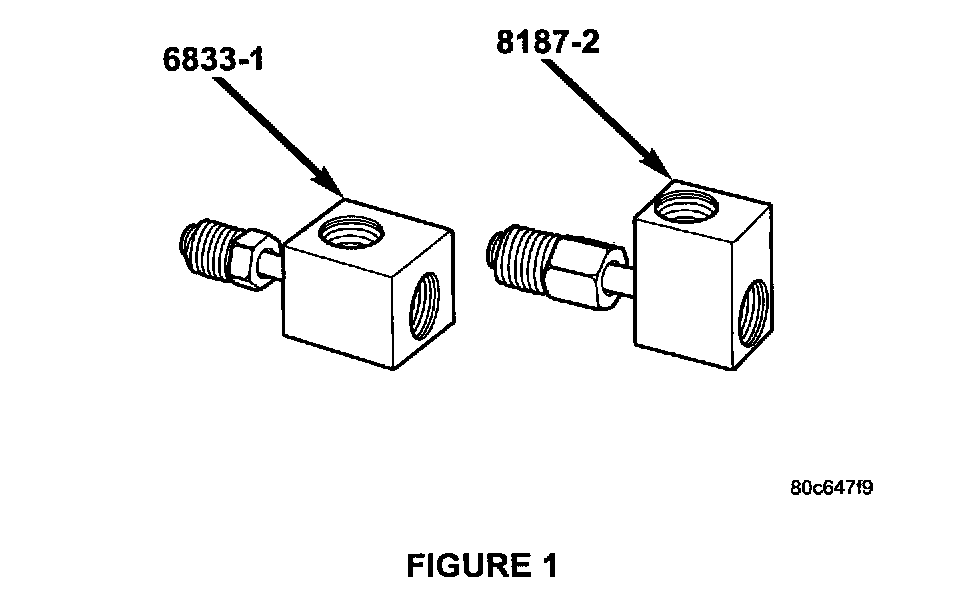

Figure 1:

Diagnosing and testing the brake proportioning valves following the procedure in the appropriate Neon Service Manual calls for the use of the Brake Pressure Adapter Set 6805 and Brake Gauge Set C-4007-A. Alternate adapters from prior tool shipments should now be used on the Neon in place of the adapters provided in the Brake Pressure Adapter Set 6805. When the Neon Service Manual calls for Adapter 6805-3, use Adapter 8187-2 (Figure 1) which was shipped with the 1998 Concorde/Intrepid special tools in kit 8180CC or stored on panel 78. When the Neon Service Manual calls for Adapter 6805-4, use Adapter 6833-1 (Figure 1) which was shipped in the 1996 Minivan special tool kit and stored on panel 70. If you are unable to locate these adapters (6833-1 & 8187-2), they are available separately through Miller Special Tools (1-800-801-5420).

POLICY:
Information Only
