With Antilock Brakes

Proportioning Valve With ABS And Non-ABS TLEV:

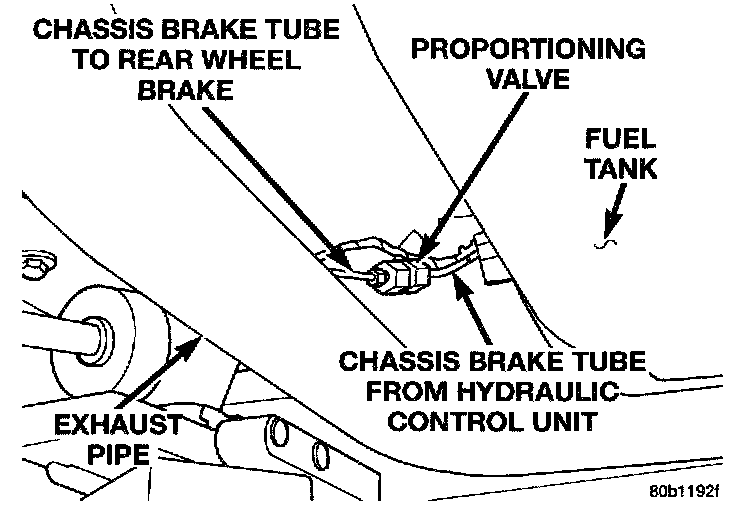

Proportioning Valve Location In Vehicle:

There are two proportioning valves used in the antilock brake system. One proportioning valve is located in the chassis brake tube leading to each rear wheel brake hydraulic circuit. The proportioning valve can be identified by its bar code label and stamp. Be sure a replacement proportioning valve has the same stamp as the proportioning valve being replaced.

The Antilock Brake System (ABS) proportioning valves function the same as the proportioning valves in the base brake system.
