Rear

REMOVAL

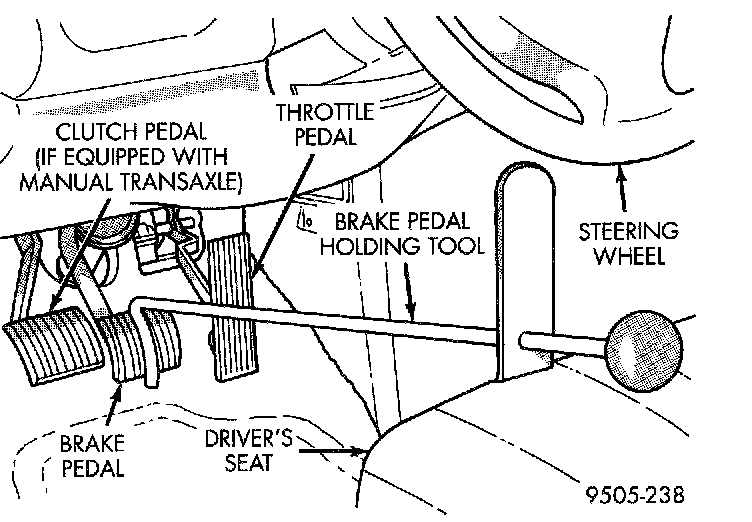

Brake Pedal Holding Tool:

1. Using a brake pedal holding tool as shown, depress the brake pedal past its first one inch of travel and hold it in this position. This will isolate the master cylinder from the brake hydraulic system and will not allow the brake fluid to drain out of the master cylinder reservoir.
2. Raise the vehicle.
3. Remove the rear tire and wheel assembly.
4. Remove the banjo bolt connecting the brake flex hose to the brake caliper. There are two washers (one on each side of the flex hose fitting) that will come off with the banjo bolt. Inspect and discard these if they are worn or damaged.

Caliper Assembly Guide Pin Bolts:

5. Remove the 2 caliper assembly-to-adapter guide pin bolts.

Caliper Removal/Installation:

6. Remove the caliper assembly from the brake adapter by first rotating the top of the caliper away from the rotor, and then lifting the caliper assembly off the machined abutment on the adapter.

INSTALLATION

NOTE: Step 1 below is only required when installing the disc brake caliper after new brake shoes have been installed.

1. Completely retract the caliper piston back into piston bore of the caliper.
2. Lubricate both adapter abutments with a liberal amount of Mopar Multipurpose Lubricant, or an equivalent.

CAUTION: Use care when installing the caliper assembly onto adapter, so the guide pin bushings and sleeves do not get damaged by the mounting bosses on adapter.

3. Carefully lower the caliper and brake shoes over the brake rotor by reversing the removal procedure. Make sure that the caliper guide pin bushings and sleeves are clear of the adapter bosses.

CAUTION: Extreme caution should be taken not to cross thread the caliper guide pin bolts when they are installed.

4. Carefully install the caliper guide pin bolts into the adapter and tighten to a torque of 22 Nm (192 inch lbs.).
5. Install the tire and wheel assembly. Tighten the wheel mounting nuts to a torque of 135 Nm (100 ft. lbs.).
6. Lower the vehicle. Before moving vehicle, pump the brake pedal several times to insure the vehicle has a firm brake pedal.
7. Remove the brake pedal holding tool.
8. Bleed the caliper as necessary.
9. Road test the vehicle and make several stops to wear off any foreign material on the brakes and to seat the brake pads.
