ABS Electronic Diagnosis

The following information is presented to give the technician a general background on the diagnostic capabilities of the Antilock Brake System (ABS) system.

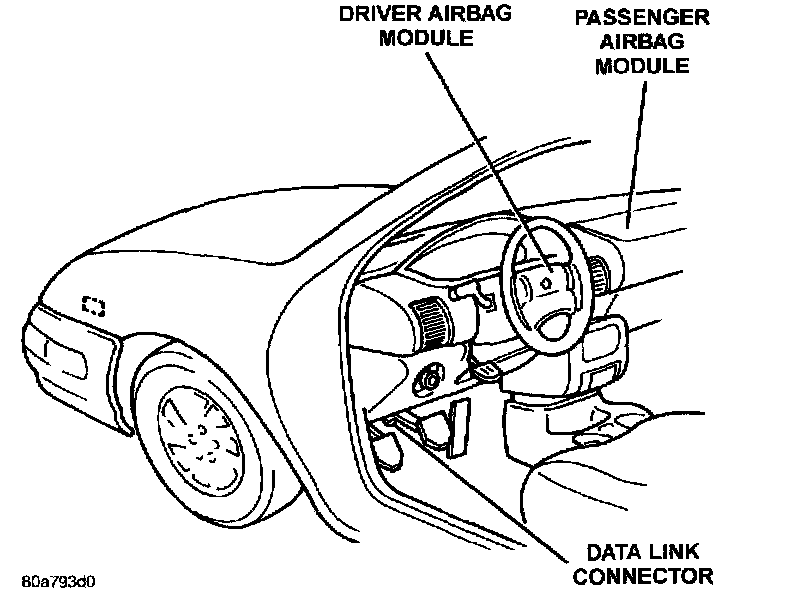

ABS System Diagnostic Connector Location:

Electronic diagnosis of the ABS system used on this vehicle is performed using the DRB scan tool. The vehicle's scan tool diagnostic connector is located under the steering column lower cover, to the left side of the steering column.
