Sunroof / Moonroof Cable: Service and Repair

Fig. 1 Sunroof Components:

SUNROOF CABLES

REMOVAL
1. Remove sunroof glass panel (4).
2. Cycle the sunroof mechanism to the full forward position.

CAUTION: Do not remove sunroof drive motor unless sunroof mechanism is in the full forward position.

3. Remove sunroof drive motor (10).
4. Remove front locator (7 or 8) for appropriate sunroof cable.
5. Disengage sunroof cable from sunroof mechanism (9).
6. Pull sunroof cable from drive tube (2 or 3).


INSTALLATION
1. Push sunroof cable through drive tube (2 or 3).

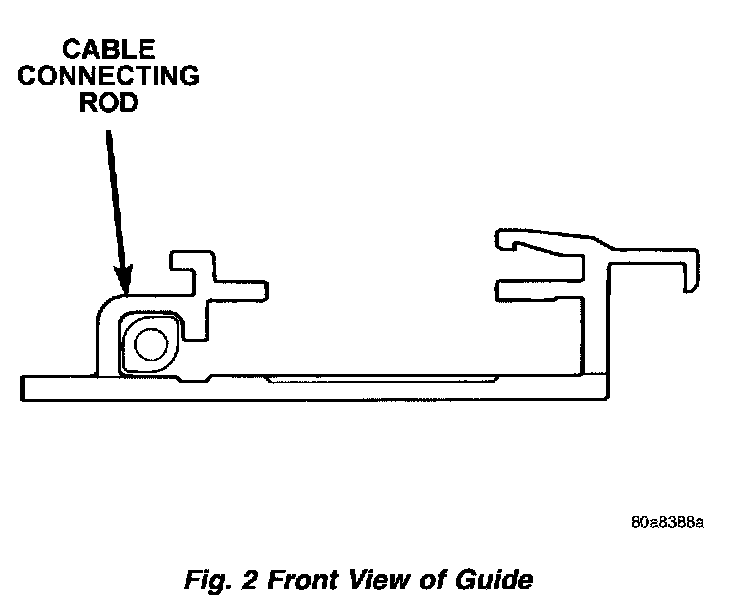

Fig. 2 Front View Of Guide:

2. Engage sunroof cable into sunroof mechanism (9) making sure cable connecting rod is rotated at a 45 degree angle towards inside of vehicle.
3. Install front locator (7 or 8) over sunroof cable. Moving the sunroof mechanism rearward slightly will ease locator installation.
4. Move sunroof to full forward position.
5. Install sunroof drive motor (10).
6. Install sunroof glass panel (5).
