Sunroof / Moonroof: Service and Repair

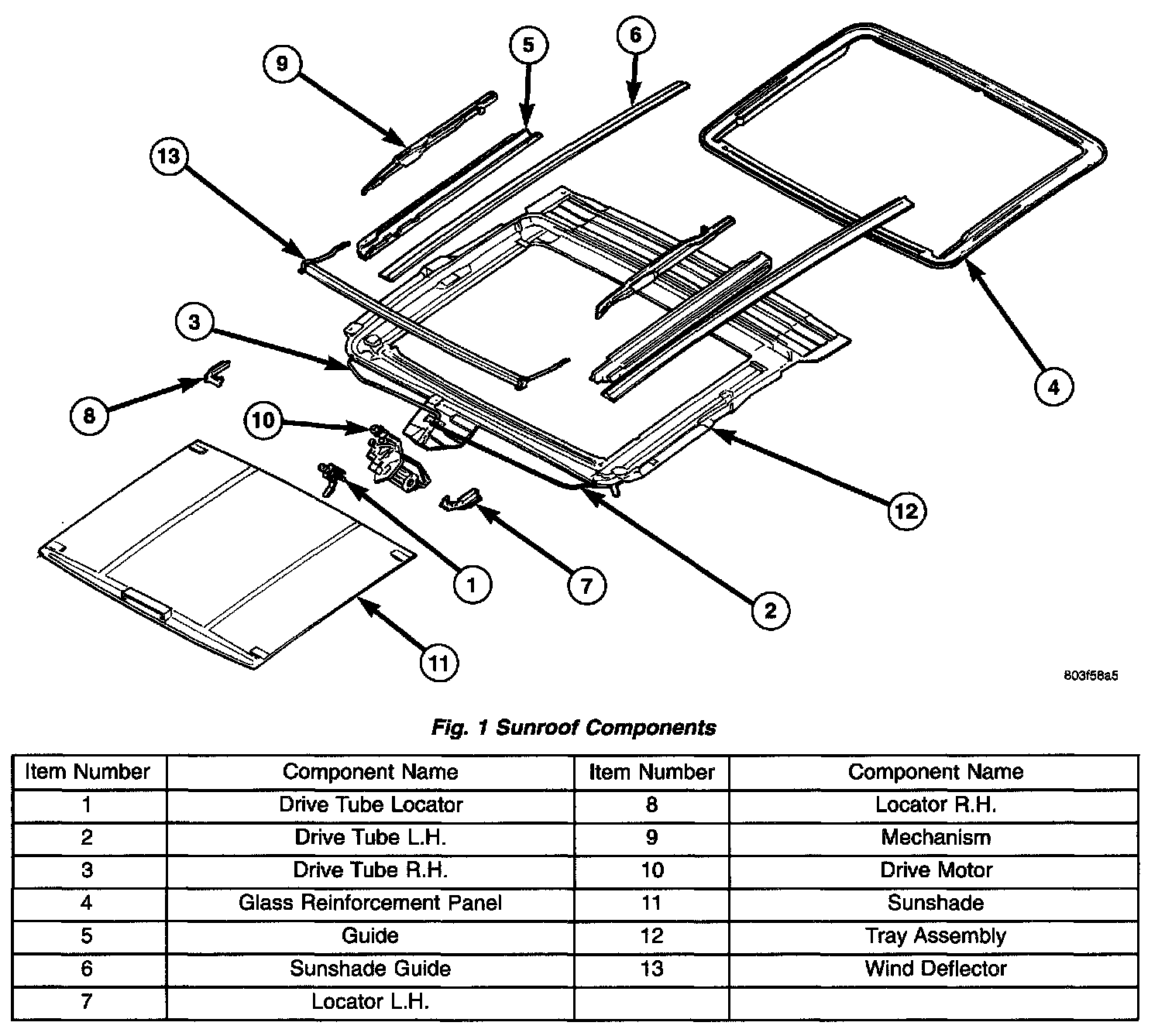

Fig. 1 Sunroof Components:

SUNROOF GUIDE AND MECHANISM ASSEMBLY

REMOVAL
1. Remove sunroof glass panel (4). Refer to procedure in this section.
2. Remove front locator (7 or 8).
3. Disengage cable from mechanism (9).
4. Remove screws holding sunroof guide (5) and mechanism (9) assembly to sunroof module.
5. Lift assembly from module.
6. Rotate assembly to disengage wind deflector (13) from assembly.


INSTALLATION
1. Engage wind deflector (13) into guide (5) and mechanism (9) assembly.
2. Position assembly onto module and install screws holding assembly to sunroof module
3. Engage drive cable to mechanism.
4. Install front locator (7 or 8). It may ease installation to move sunroof mechanism slightly rearward.
5. Install sunroof glass panel.
