Mirrors: Description and Operation

INTRODUCTION

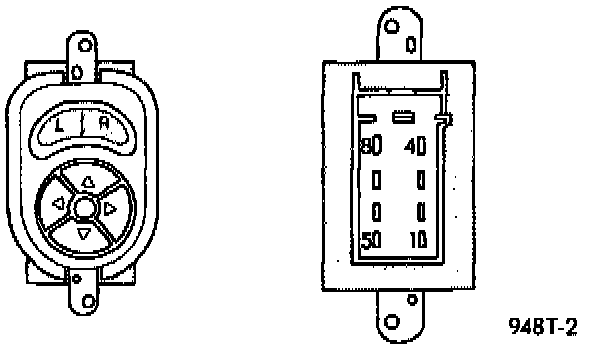

Power Mirror Switch:

Electrically operated power mirrors are available on all car lines. The mirrors are controlled by a single switch assembly located on the driver's door trim panel. The push button rocker switch uses L (left) and R (right) for mirror selection and a button to push for the desired direction of mirror movement.

The motors which operate the mirrors are part of the mirror assembly and cannot be replaced separately.

All vehicles are equipped with a Ignition-Off Draw Fuse, and they are disconnected when the vehicles are originally shipped from the factory Disconnecting this fuse will help prevent the battery from discharge during storage. The fuse is located in Power Distribution Center (PDC) refer to the cover for proper location.

This fuse is included in the power mirror circuity and should be checked if the mirrors are inoperative.
