RKE

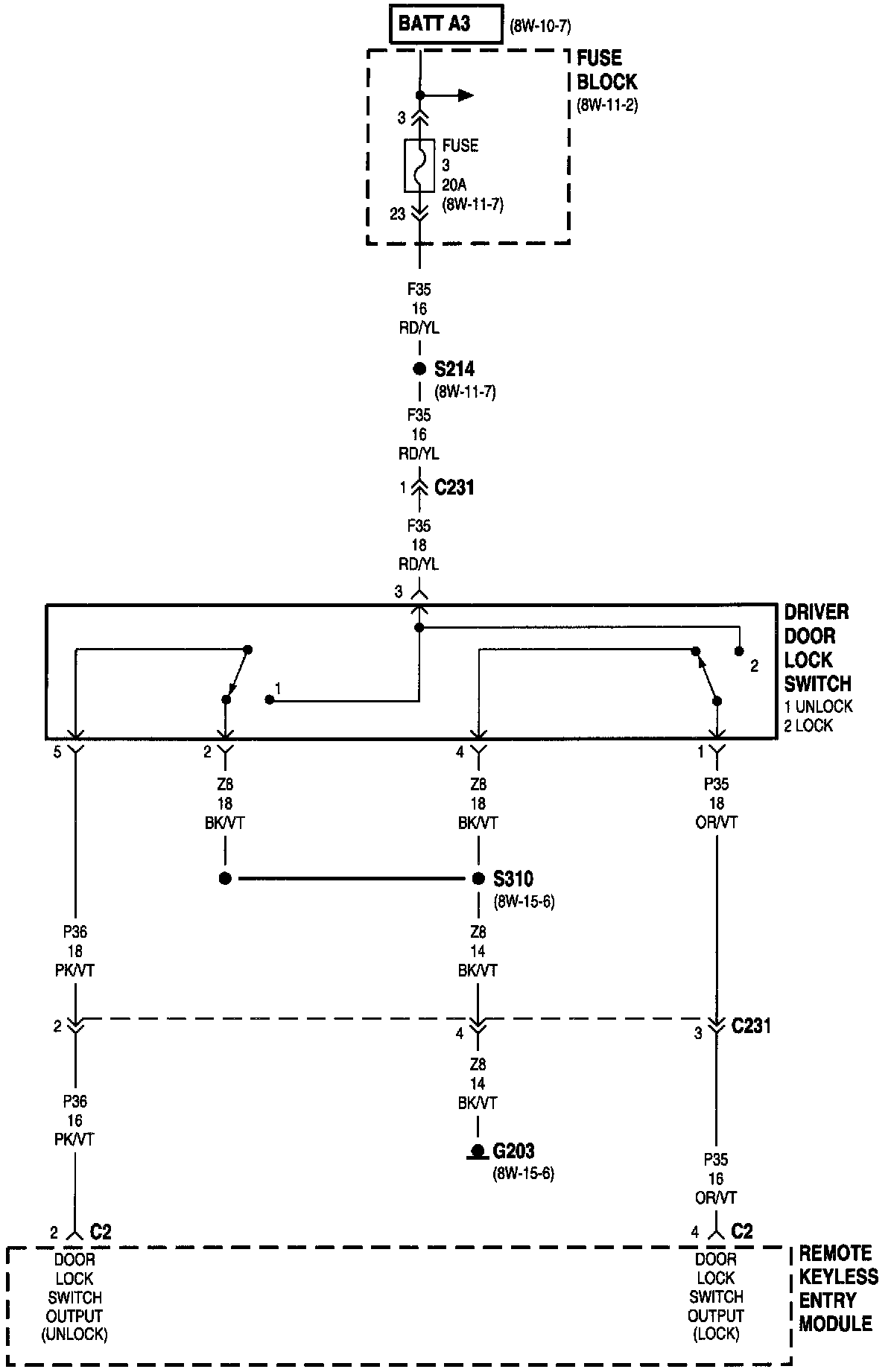

Power Door Lock System -- Sheet 8w-61-2:

Driver Door Lock Switch
Fuse 3 (FB)
Fuse Block
G203
Remote Keyless Entry Module

Power Door Lock System -- Sheet 8w-61-3:

Fuse 3 (FB)
Fuse Block
Passenger Door Lock Switch
Remote Keyless Entry Module

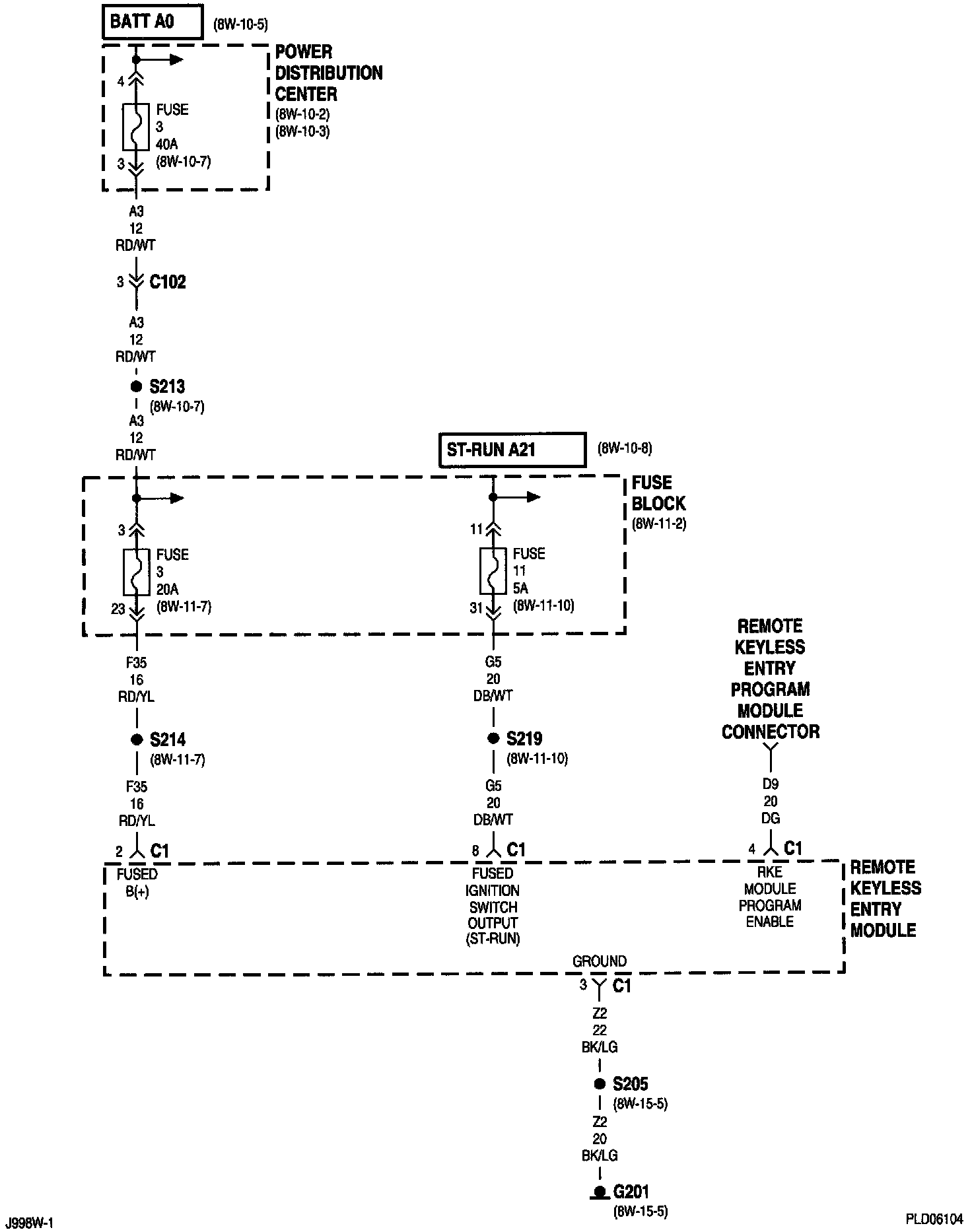

Power Door Lock System -- Sheet 8w-61-4:

Fuse 3 (FB)
Fuse3(PDC)
Fuse 11 (FB)
Fuse Block
Power Distribution Center
Remote Keyless Entry Module
Remote Keyless Entry Program Module Connector

Power Door Lock System -- Sheet 8w-61-5:

Clockspring
Diode No3
Fuse 2 (FB)
Fuse 3 (FB)
Fuse 13 (PDC)
Fuse Block
Headlamp Beam Select Switch
Headlamp Switch
Horn Relay
Interior Lamp Relay
Left Horn Switch
Power Distribution Center
Remote Keyless Entry Module
Right Horn Switch

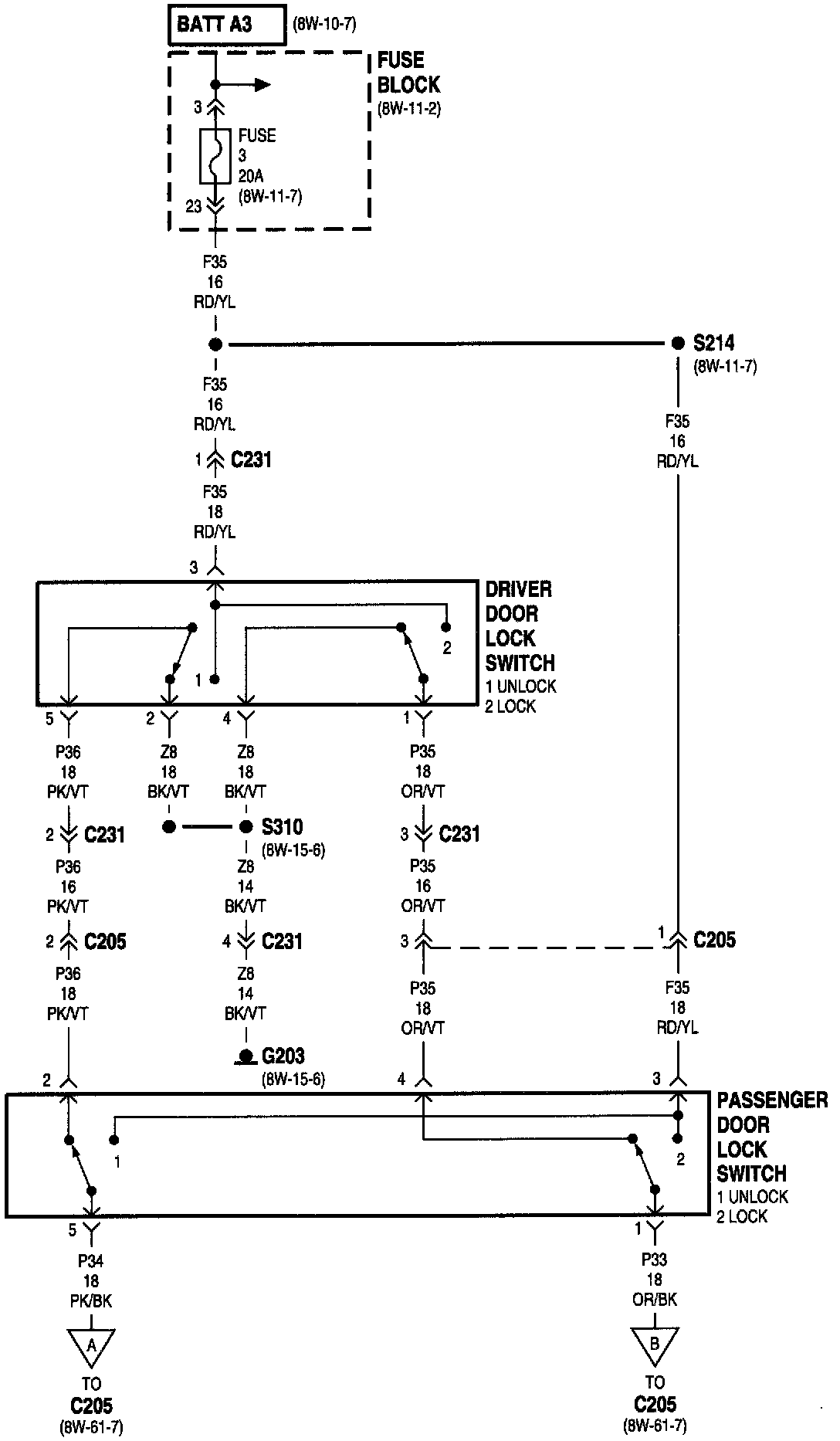

Power Door Lock System -- Sheet 8w-61-6:

Driver Door Lock Switch
Fuse Block
G203
Passenger Door Lock Switch

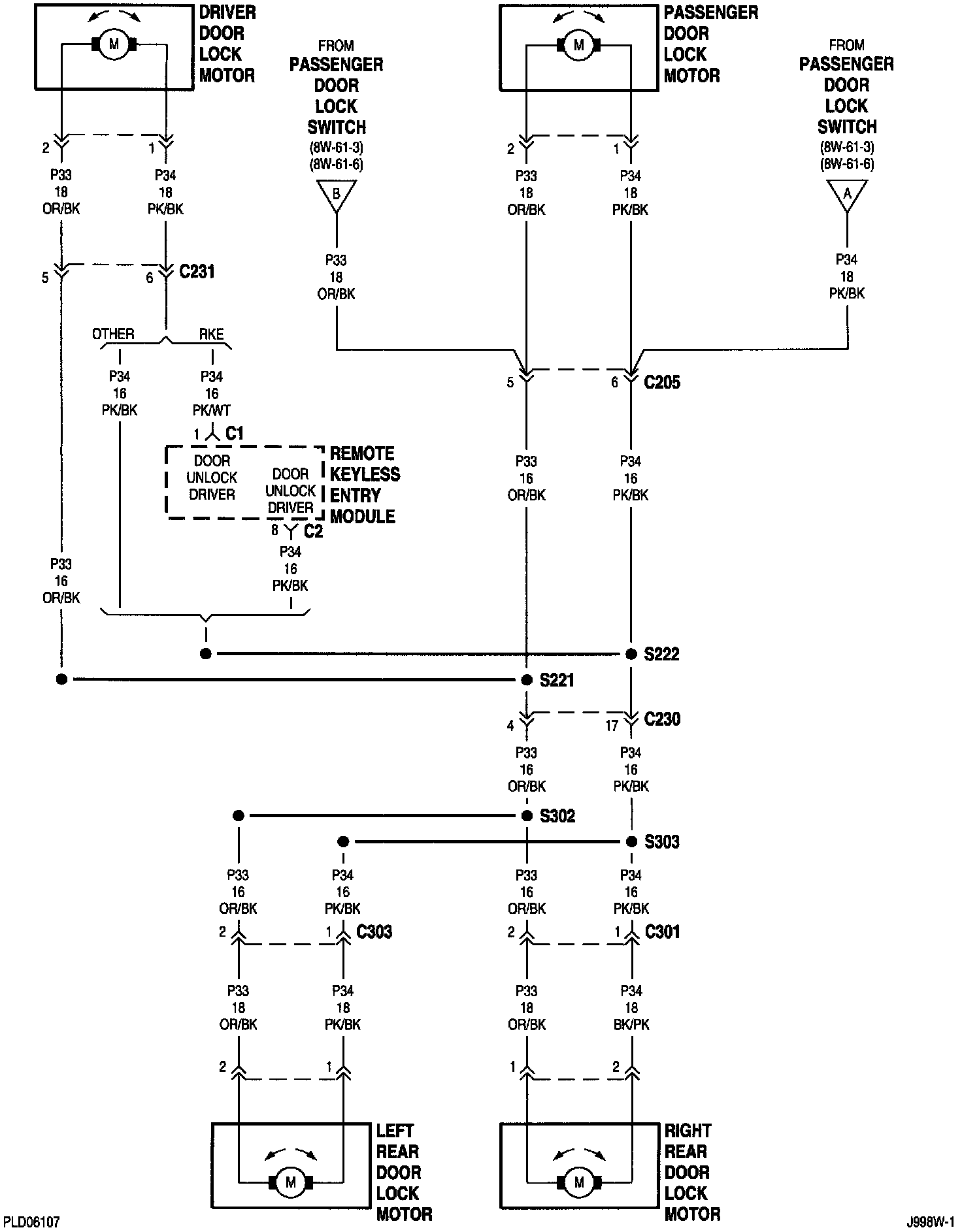

Power Door Lock System -- Sheet 8w-61-7:

Driver Door Lock Motor
Left Rear Door Lock Motor
Passenger Door Lock Motor
Remote Keyless Entry Module
Right Rear Door Lock Motor


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number
