Rear Door Trim Panel

REMOVAL
1. Release door latch and open door.
2. Lower window glass.
3. Remove window regulator crank.
4. Remove screw from inside arm rest pull cup.

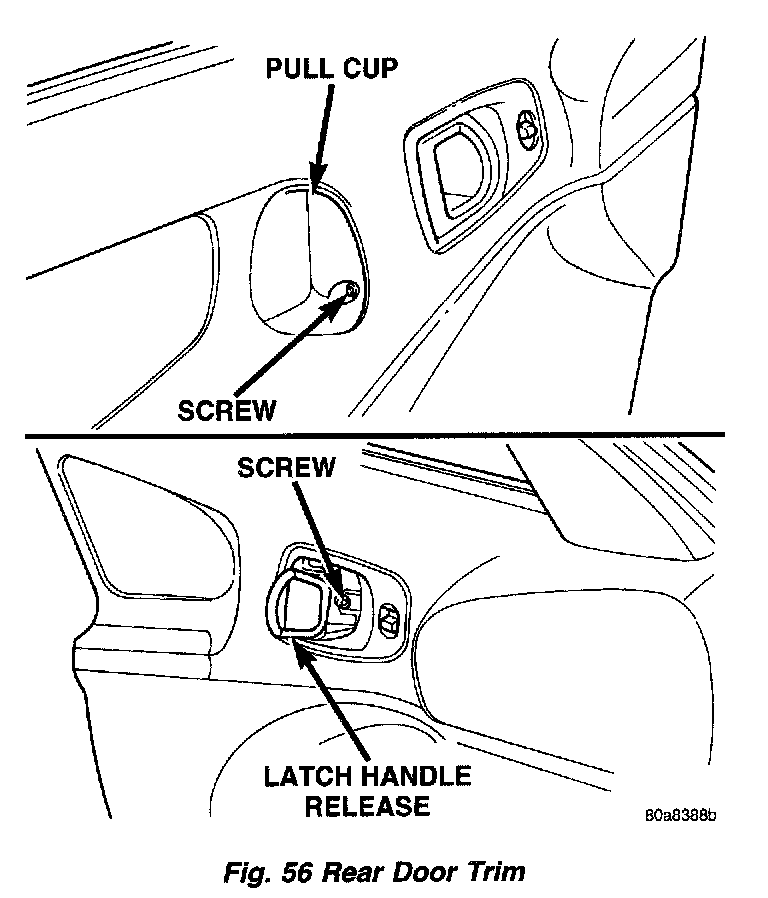

Fig. 56 Rear Door Trim:

5. Remove screw from behind inside latch release handle.

CAUTION: Pulling on trim panel without removing screw in the pull cup will damage the pull cup.

NOTE: Use a fork-type push-in fastener removal tool.

6. Disengage push-in fasteners attaching trim to door panel around perimeter of trim panel.
7. Disengage trim panel from retainer channel in inner belt weatherstrip at top of door by lifting while jiggling.
8. Tilt top of trim panel away from door and disengage clip attaching latch rod to handle.
9. Remove latch rod from handle.
10. Remove trim panel from door.

INSTALLATION
1. Replace any damaged or missing push in fasteners from around perimeter of door trim panel.
2. Press toy tabs of bolster flat to the cardboard. Ensure that the water dam is not damaged.

CAUTION: Installing the door trim panel without pressing toy tabs flat to the cardboard will damage the water dam.

3. Place trim panel in position on door.
4. Insert latch rod into handle and engage clip.
5. Engage trim panel into retainer channel at top of door.
6. Locate door trim panel to inner door panel by aligning locating pins on backside of trim panel to mating holes in inner door panel.
7. Install push-in fasteners to attach trim to door panel around perimeter of trim panel.
8. Install screw behind inside latch release handle.
9. Install screw inside arm rest pull cup.
10. Install window regulator crank.
