Antenna: Service and Repair

REMOVAL

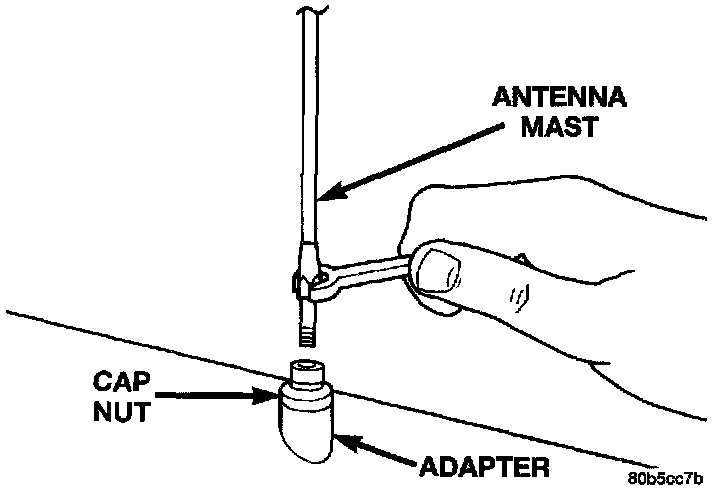

Antenna Mast:

1. Remove antenna mast by unscrewing mast from antenna body.
2. Locate the antenna lead disconnect in the instrument panel wire harness above the right kick panel. Disconnect the antenna cable from cable lead.

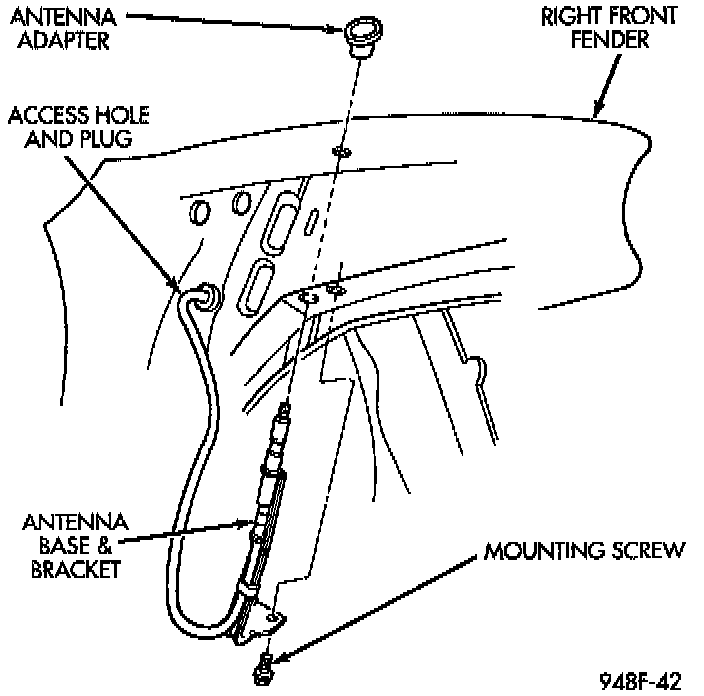

Antenna Mounting:

3. Unfasten push pins from the rear of the plastic inner fender shield and move shield to gain access to mounting screws.
4. Remove mounting screw and remove antenna base and cable assembly from under the fender.

INSTALLATION
1. Align antenna adapter tongue with grove in the fender hole and push adapter into fender.
2. From under the fender, push the antenna base and cable assembly through the adapter in the fender. Tighten mounting screw to 7 N.m (75 in. lbs.).
3. Seat the grommet in the side panel and connect the cable to the instrument panel harness connector.
4. Install the plastic inner fender shield.
5. Connect the antenna cable to the cable lead.
