P0113

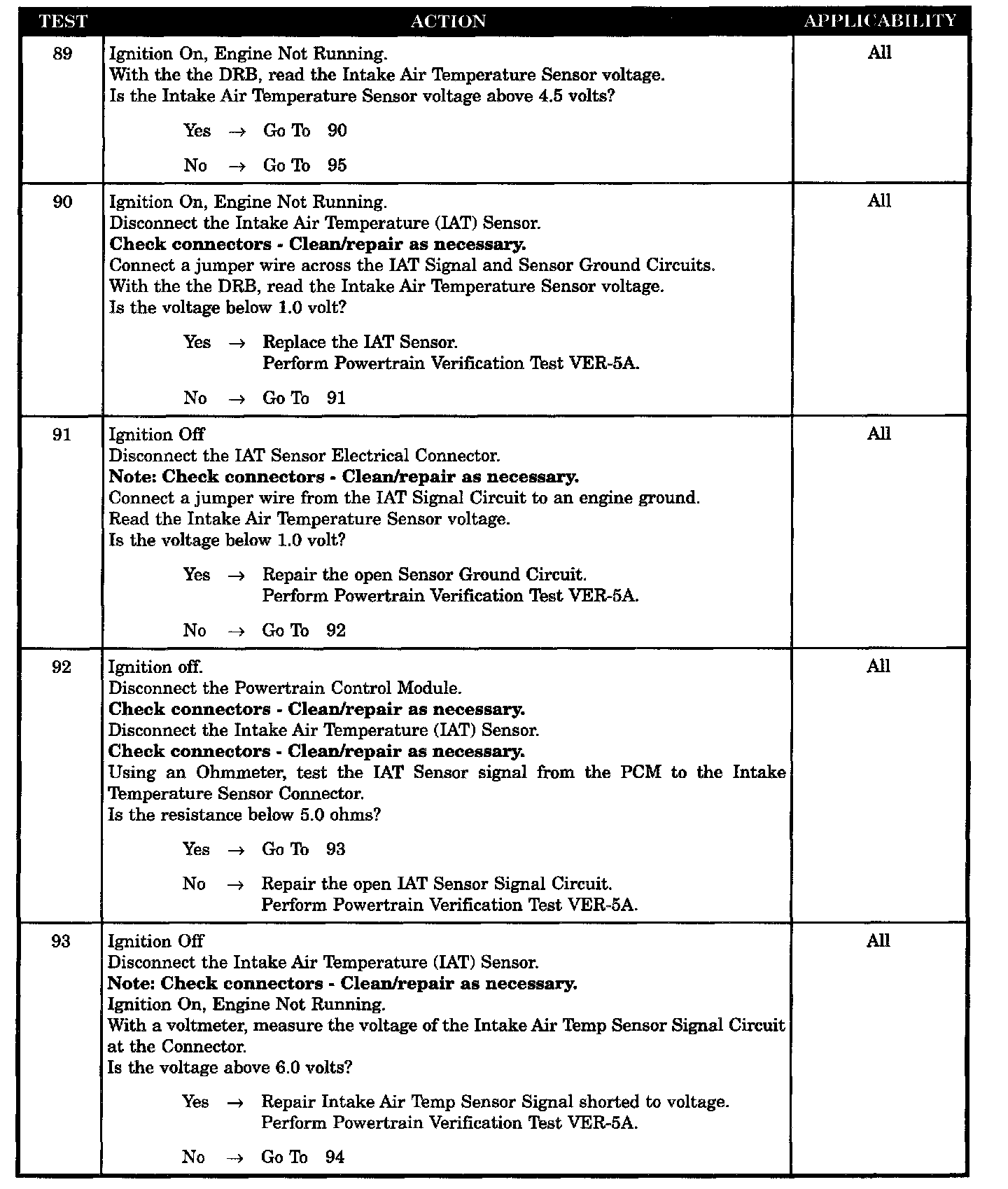

Tests 89 - 93:

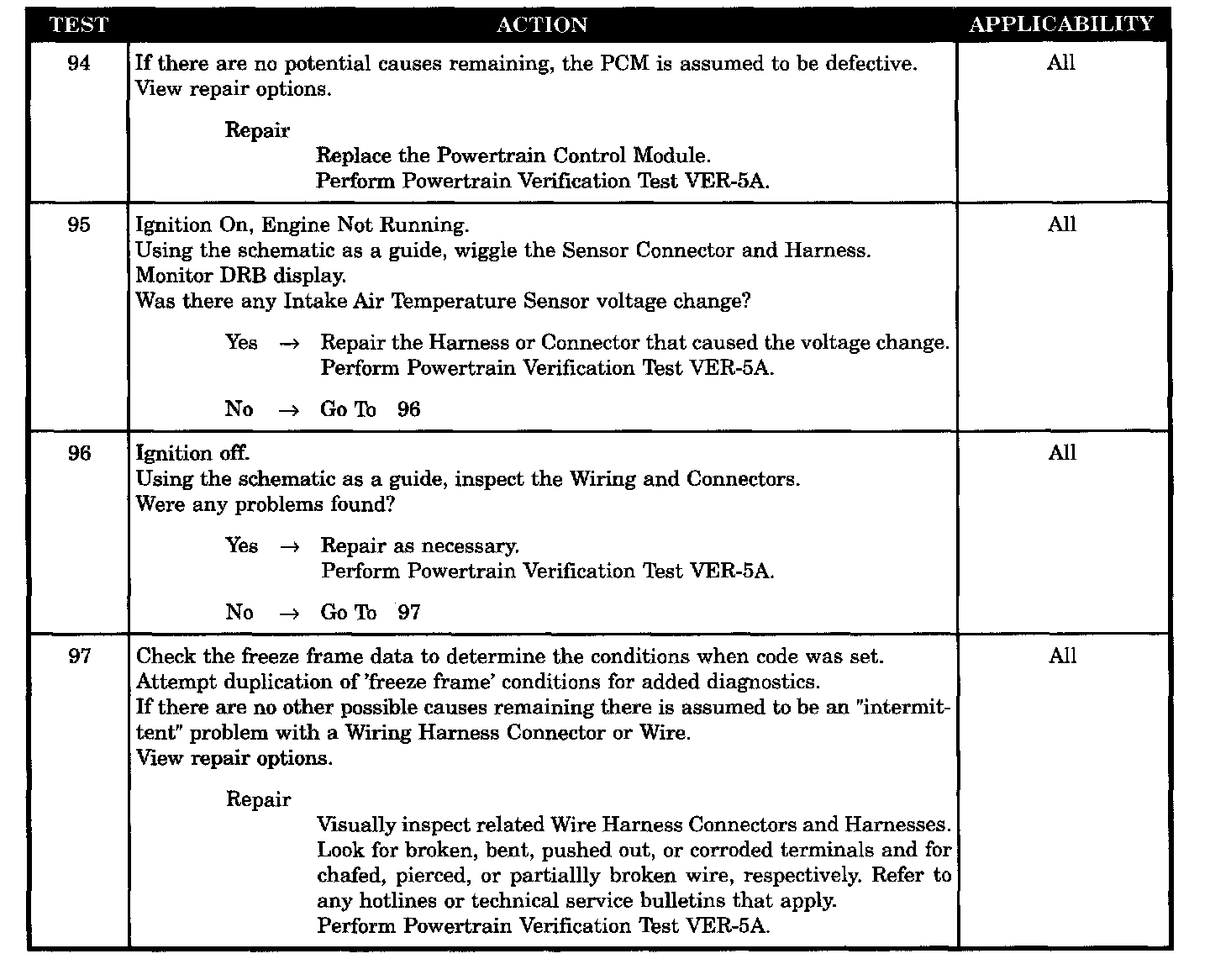

Tests 94 - 97:

SYMPTOM
P-0113 INTAKE AIR TEMPERATURE SENSOR VOLTAGE HIGH

WHEN MONITORED
With ignition on and the engine running.

SET CONDITION
The intake air sensor circuit voltage at PCM cavity 37 goes above 4.9 volts.

POSSIBLE CAUSES
- No possible causes remaining
- IAT sensor defective
- Sensor ground circuit open
- IAT sensor signal circuit open
- IAT sensor wiring harness intermittent defect
- IAT sensor wiring harness observable defect
- PCM (intake air tmp sen) defective
- Intake air temp sensor signal circuit shorted to voltage
