Checking Speed Control Operation

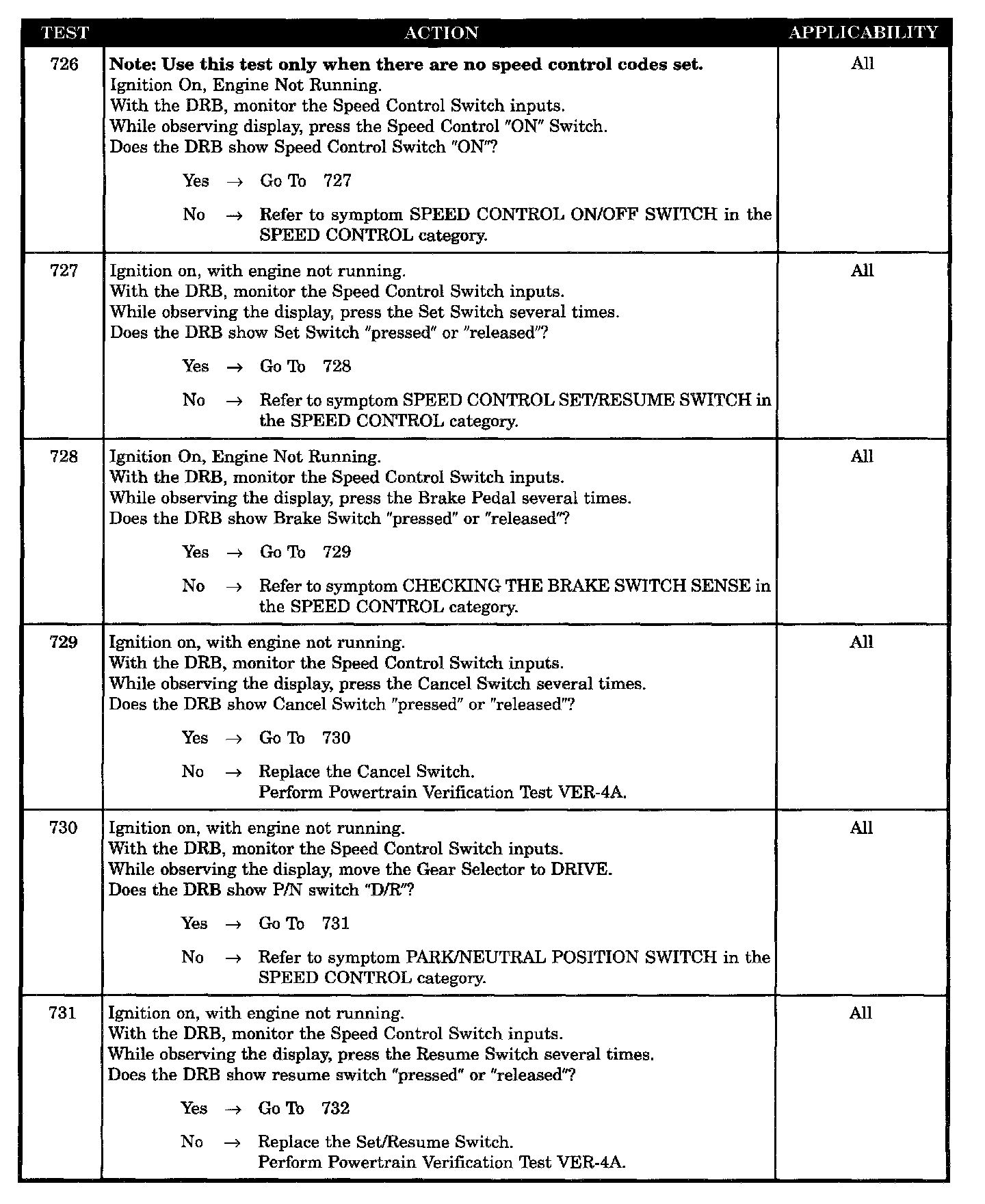

Tests 726 - 731:

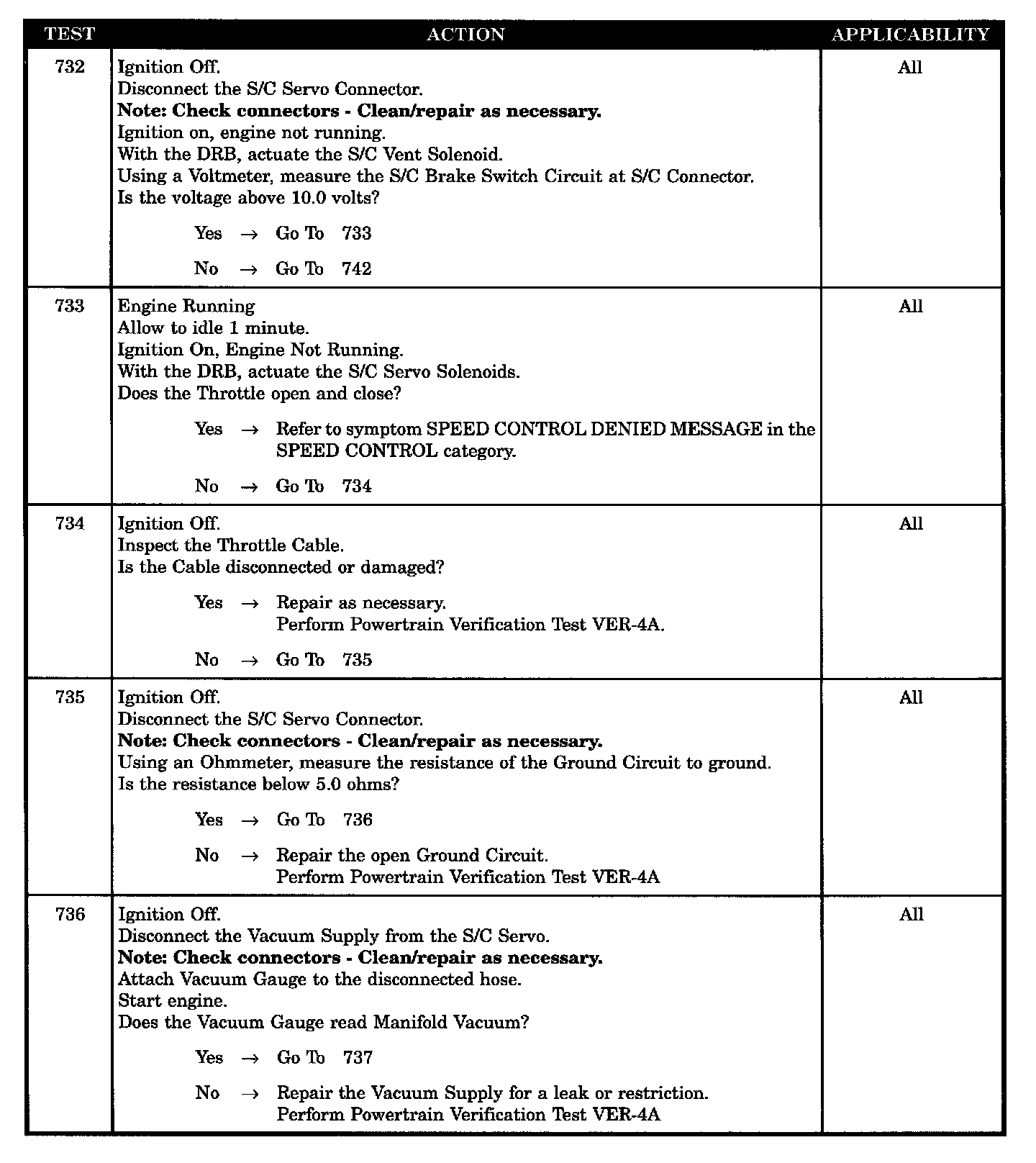

Tests 732 - 736:

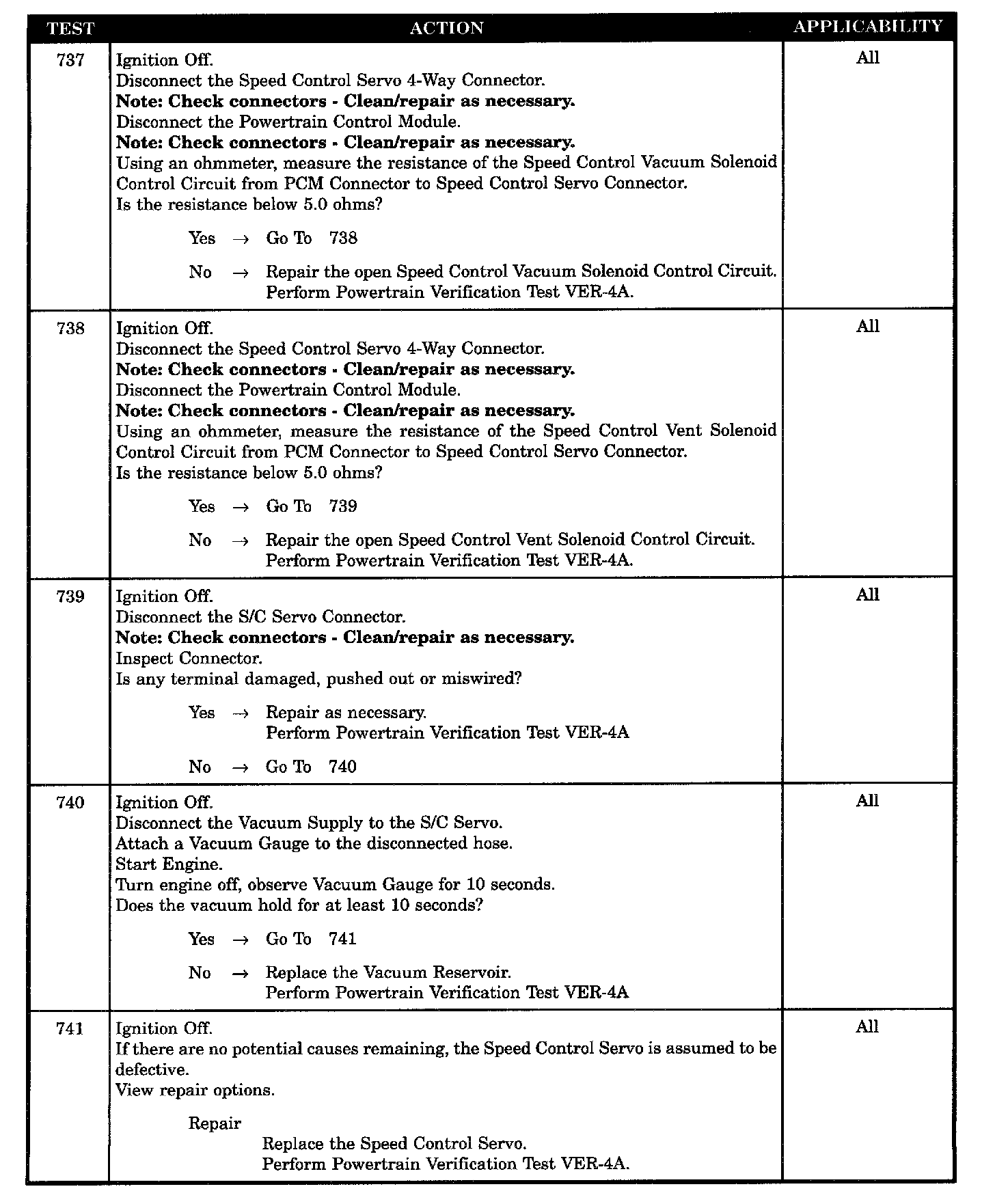

Tests 737 - 741:

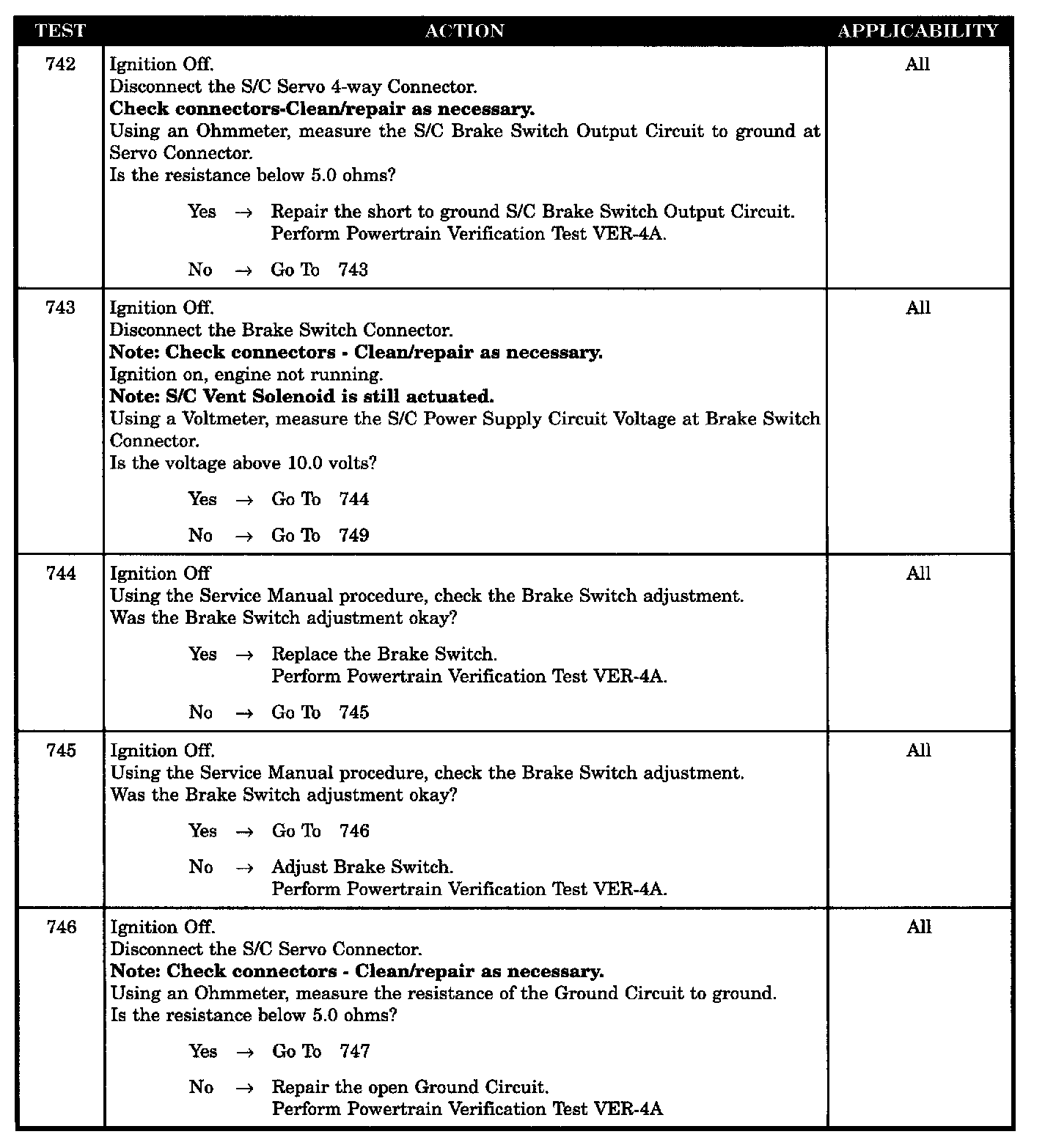

Tests 742 - 746:

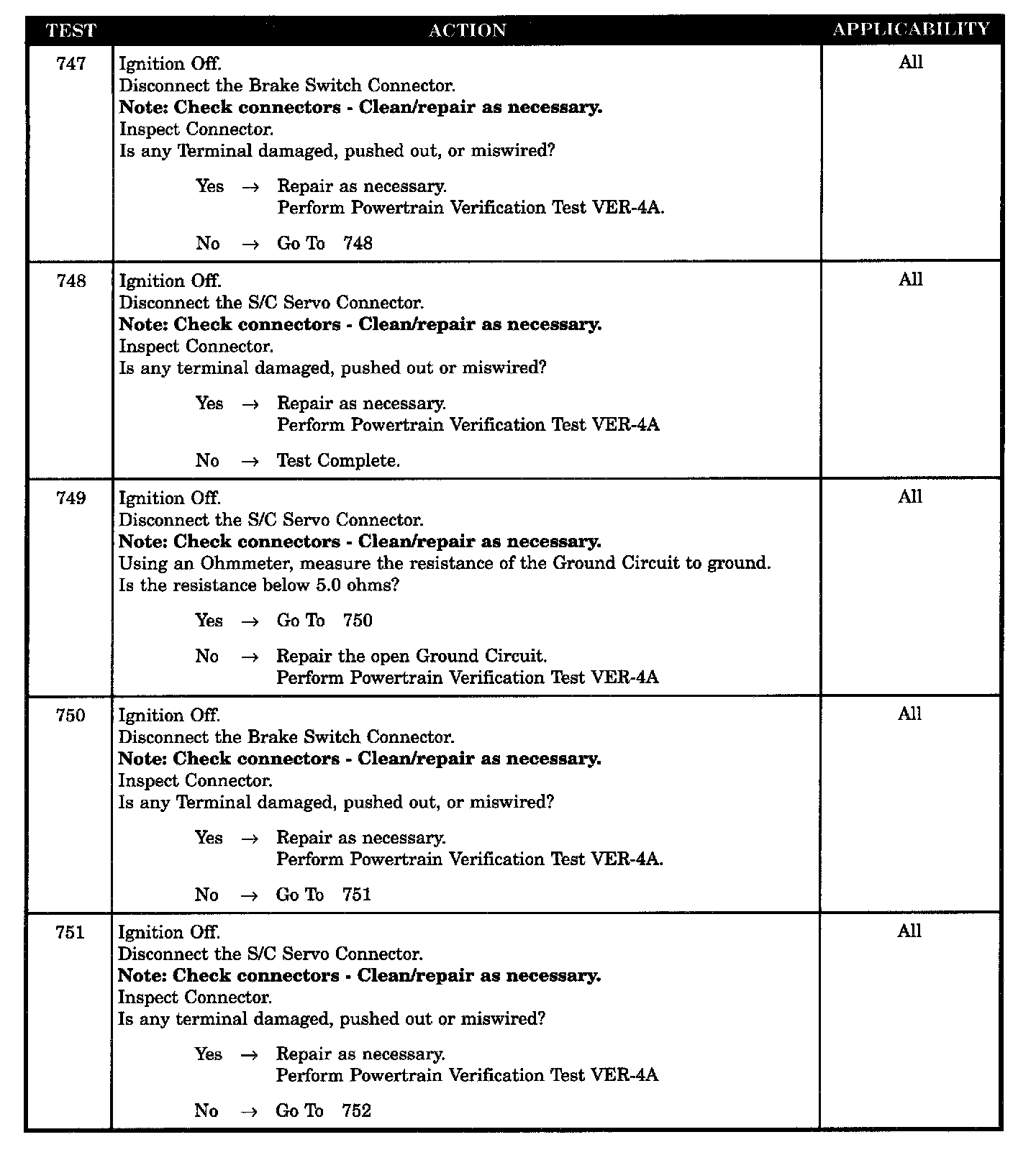

Tests 747 - 751:

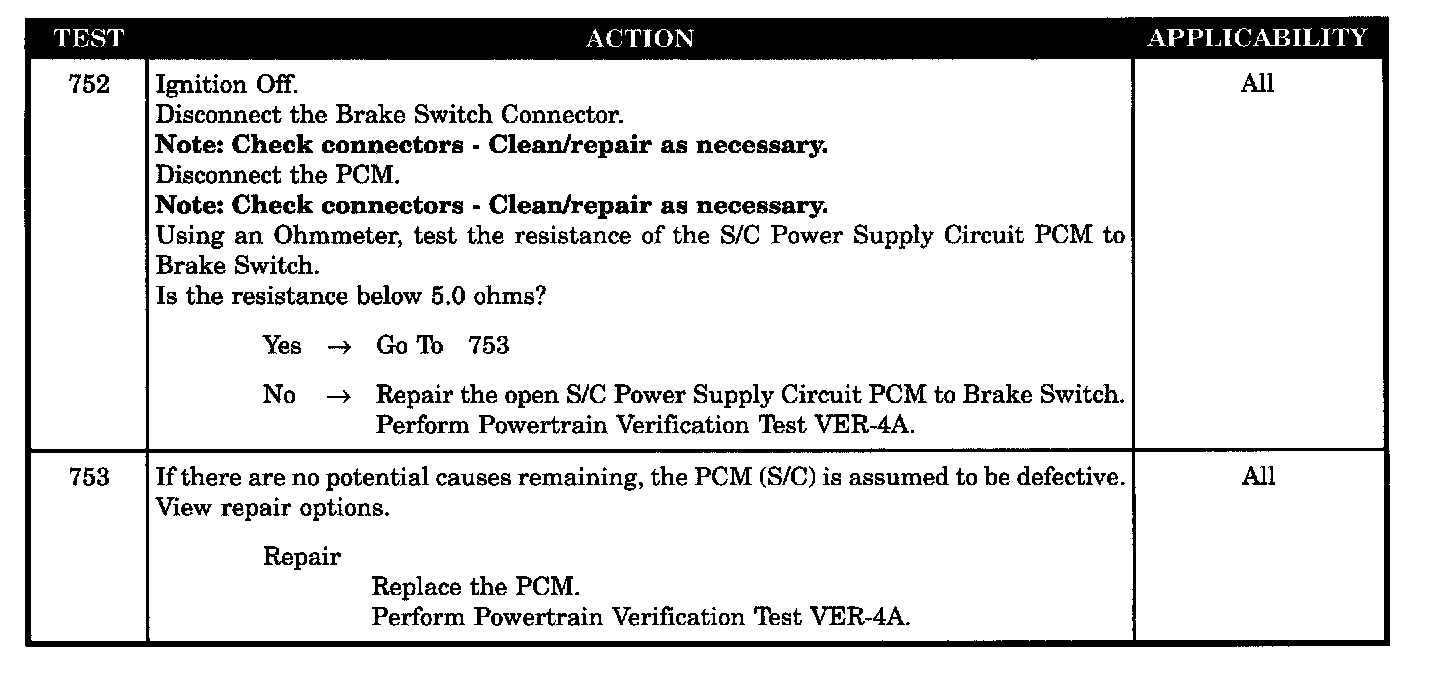

Tests 752 - 753:

SYMPTOM
* CHECKING SPEED CONTROL OPERATION

POSSIBLE CAUSES
- Ground circuit open
- S/C brake switch output circuit shorted to ground
- S/C power supply circuit (PCM to brk switch) open
- Speed control servo def (speed control)
- Speed control vacuum solenoid control circuit open
- Speed control vent solenoid control circuit open
- Cancel switch defective
- Set/Resume switch defective
- Throttle cable observable defect
- Brake switch defective
- Brake switch out of adjustment
- Brake switch connector observable defect
- PCM (speed control) defective
- S/C servo connector terminal observable defect
- Vacuum reservoir defective
- Vacuum supply leak or restriction
