Checking Throttle Position Sensor Calibration

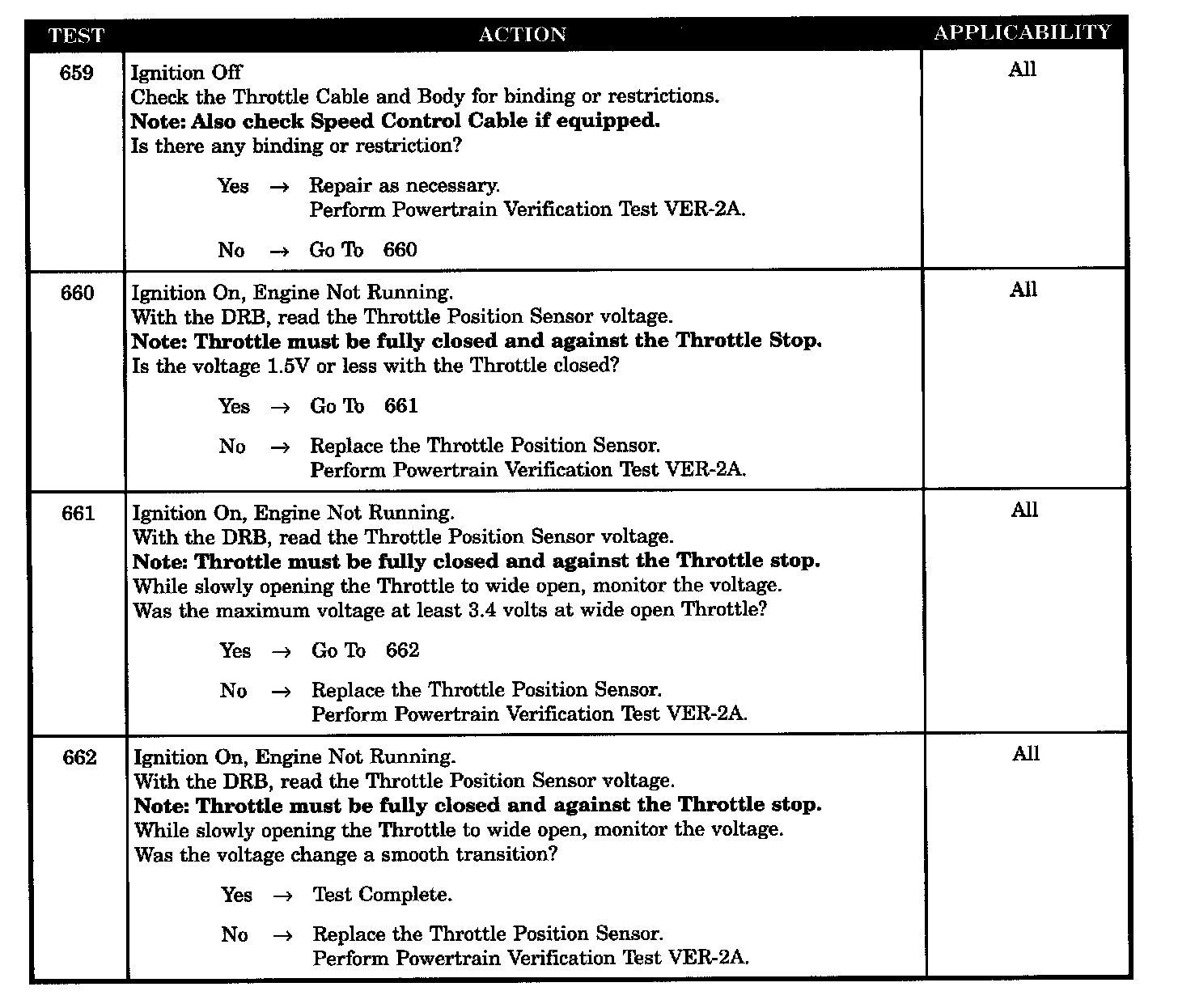

Tests 659 - 662:
SYMPTOM
* CHECKING THROTTLE POSITION SENSOR CALIBRATION
POSSIBLE CAUSES
- Throttle cable and body binding or restricted
- TPS voltage above 1.5 volts with throttle closed
- TPS voltage below 3.4 volts at wide open throttle
- TPS voltage change not a smooth transition
