Checking Park/Neutral Position Switch

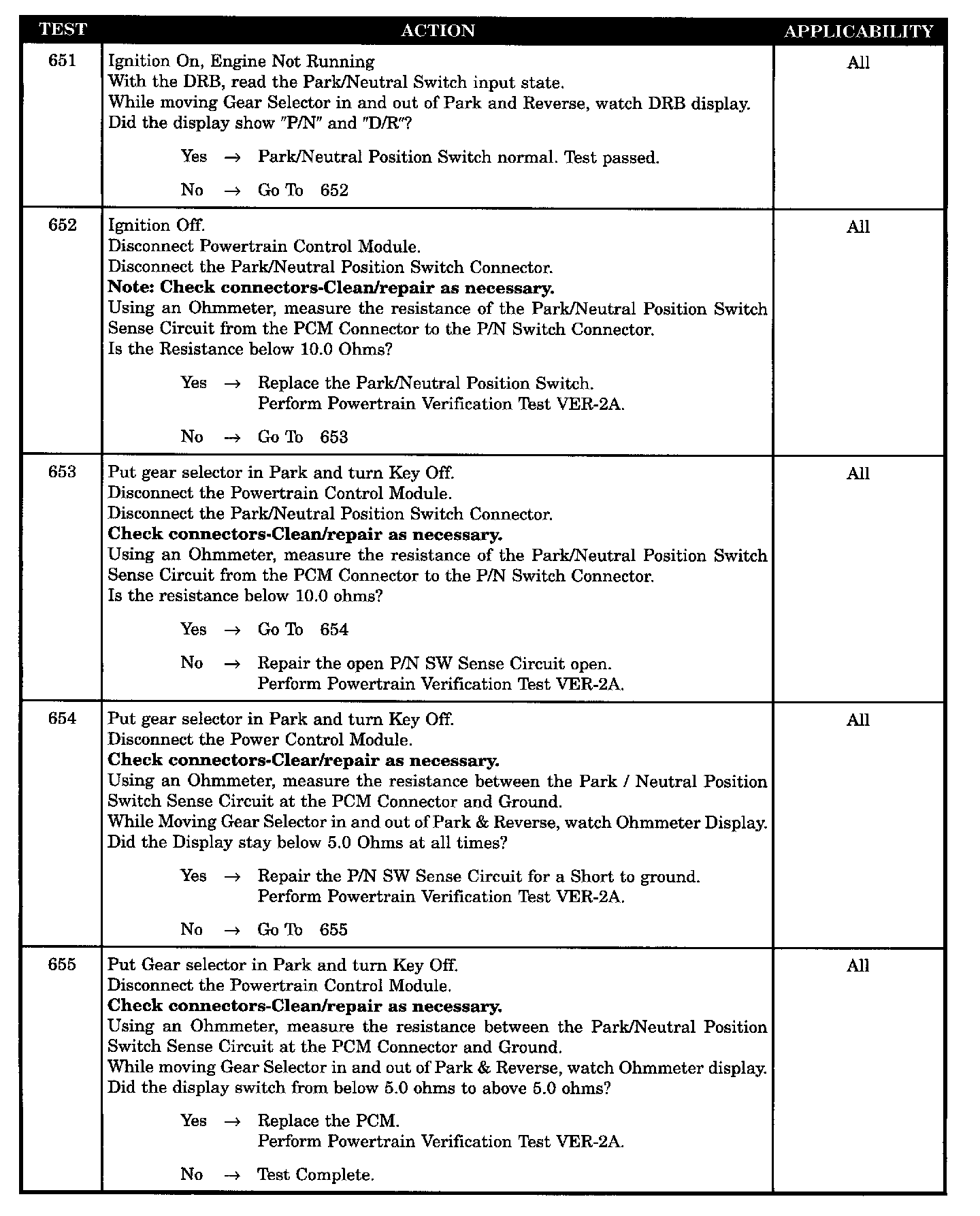

Tests 651 - 655:




SYMPTOM
* CHECKING THE PARK/NEUTRAL POSITION SWITCH

POSSIBLE CAUSES
- Park/Neutral position switch defective
- P/N position SW sense ckt open
- P/N switch sense ckt short to ground
- PCM defective
- Test passed
