Brake Switch Circuit

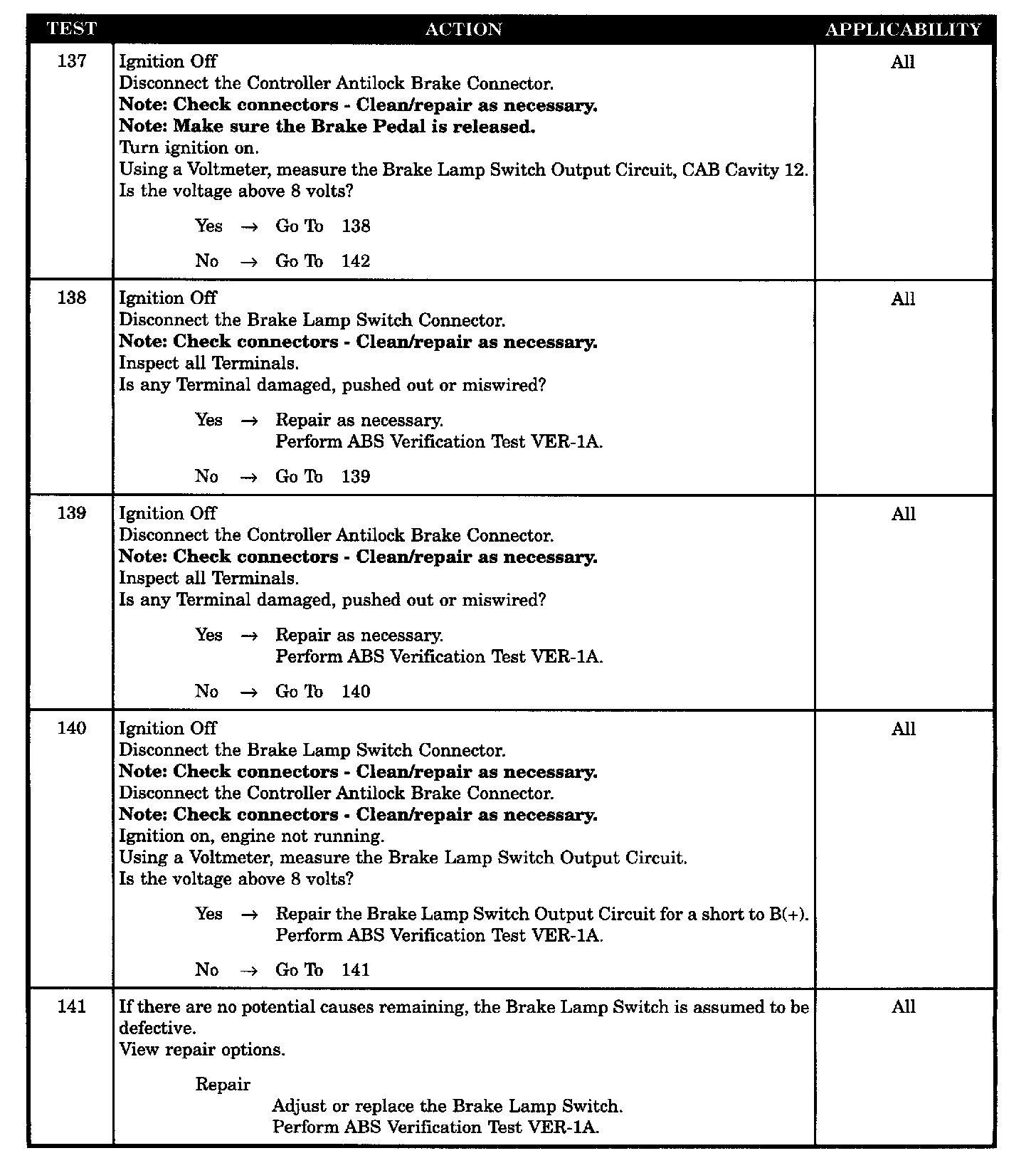

Tests 137 Through 141:

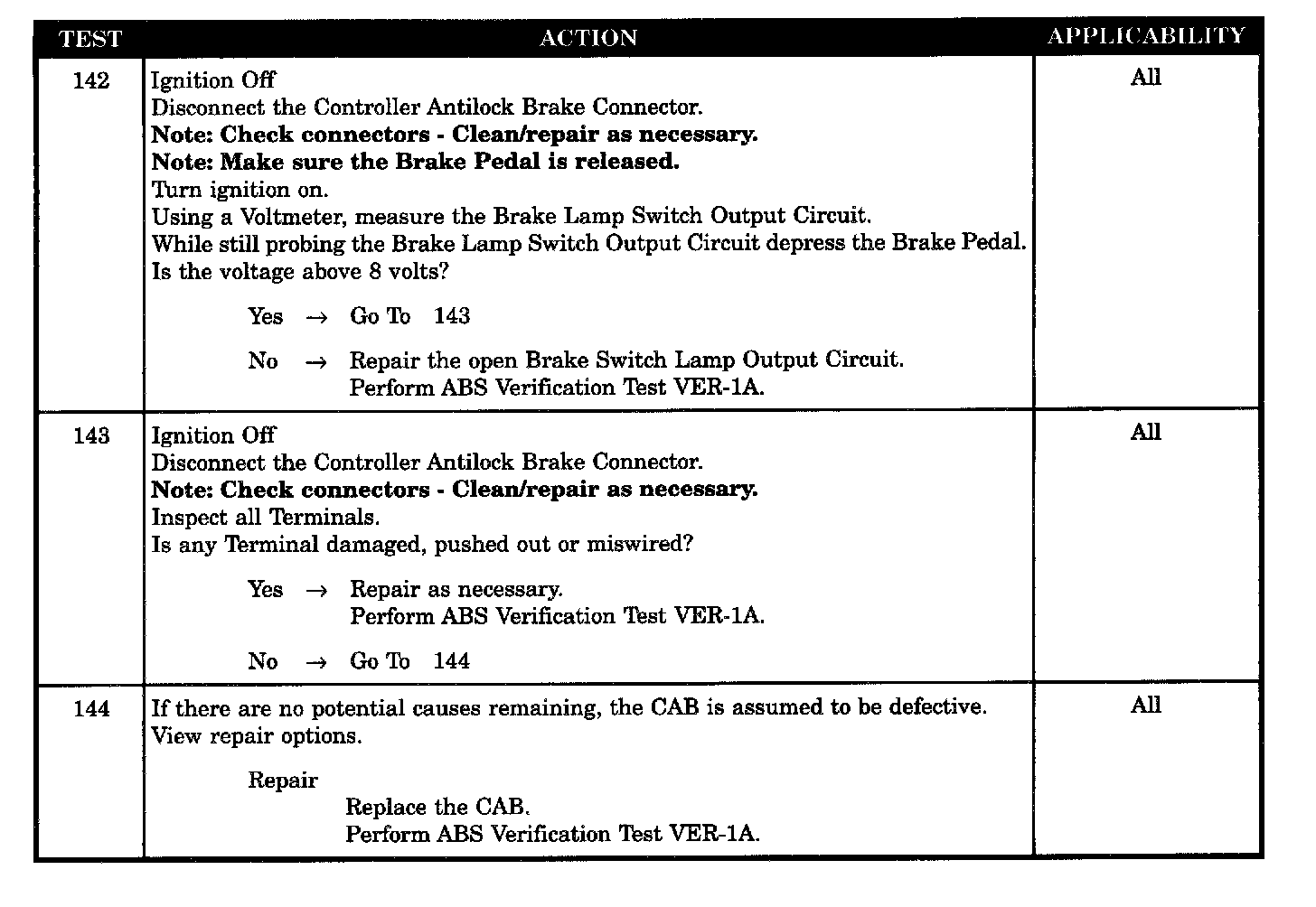

Tests 142 Through 144:

Symptom:
BRAKE LAMP SWITCH

Possible Causes
BRAKE SWITCH CONNECTOR OBSERVABLE DEFECT
BRAKE SWITCH DEFECTIVE
BRAKE SWITCH OUTPUT CIRCUIT OPEN
BRAKE SWITCH OUTPUT CIRCUIT SHORT TO B+
CAB CONNECTOR OBSERVABLE DEFECT
CAB DEFECT
