Warning Lamp Circuit Open (Active)

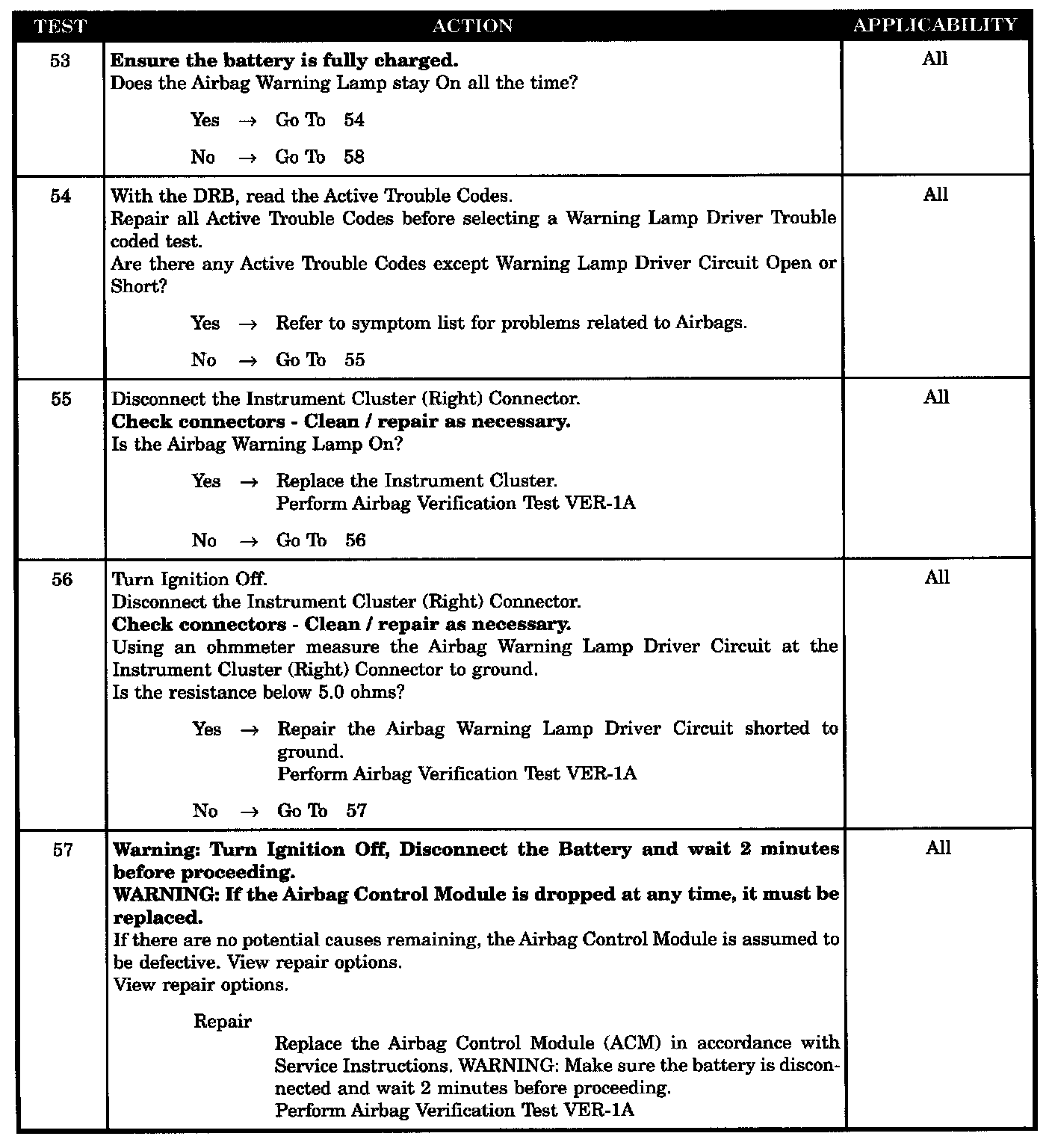

Tests 53 - 57:

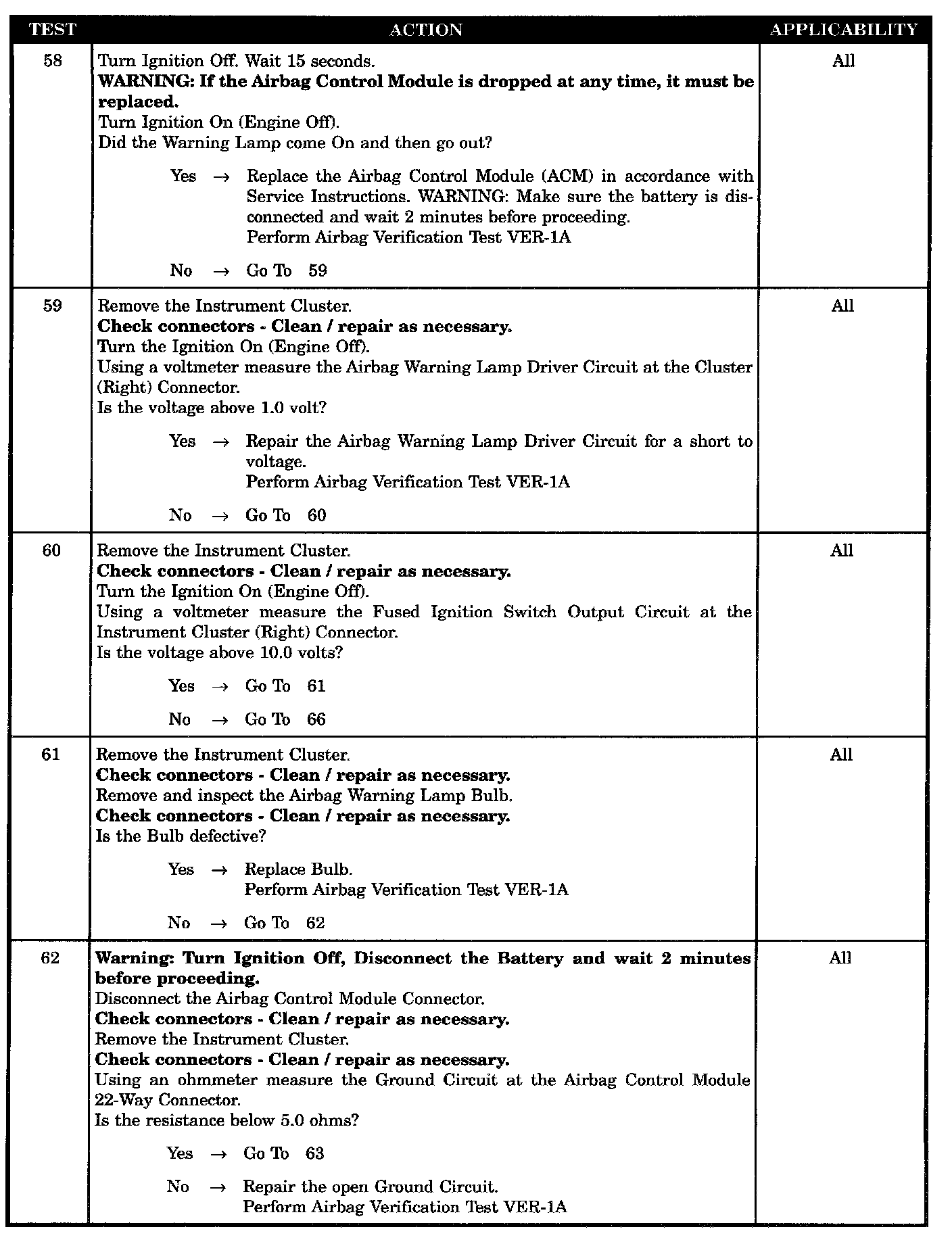

Tests 58 - 62:

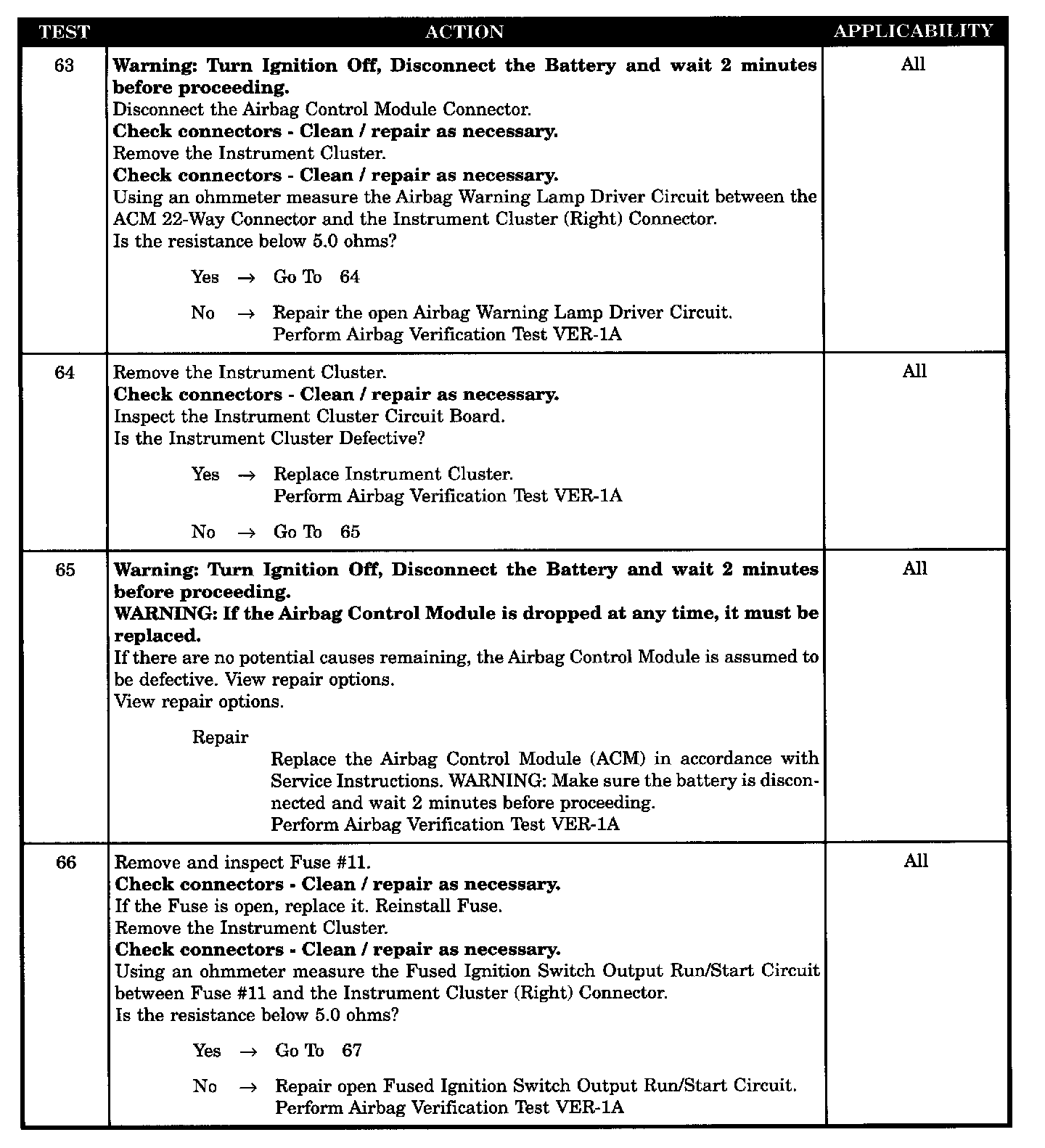

Tests 63 - 66:

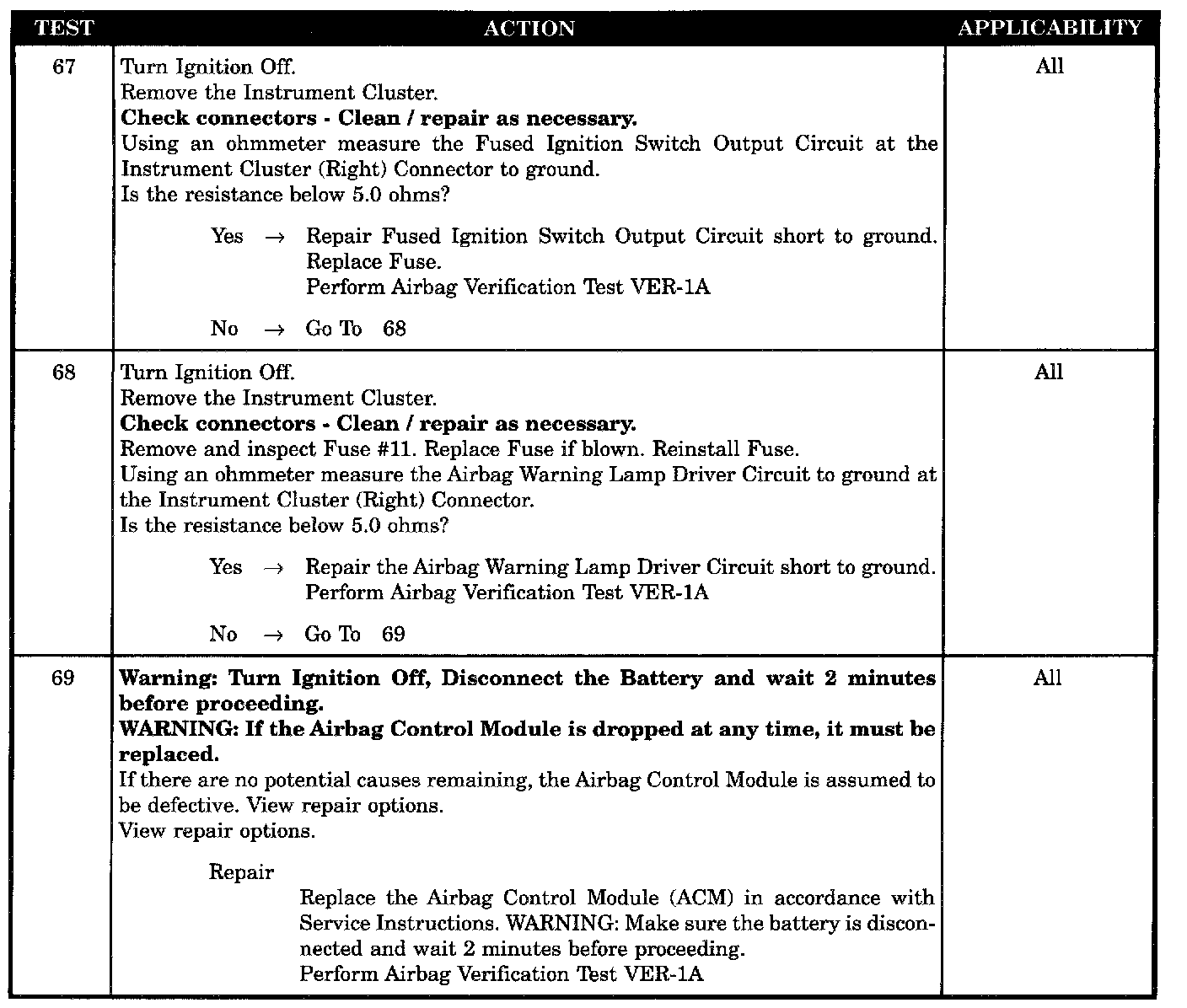

Tests 67 - 69:

SYMPTOM:
WARNING LAMP CIRCUIT OPEN (ACTIVE)

WHEN MONITORED:
With ignition ON, or the ACM needs to turn the lamp ON because of detection of a code, or during a lamp check.

SET CONDITION:
With voltage and current ON, the airbag warning lamp driver circuit is other than expected.

POSSIBLE CAUSES
- ACM Defective - warning lamp driver circuit open
- ACM Defective - warning lamp driver circuit open 2
- ACM Defective - warning lamp driver CKT shorted
- ACM self test fails
- Airbag warning lamp driver circuit short to GND
- Defective airbag warning lamp - bulb
- Defective warning lamp - circuit board
- Fused ignition Switch output run/start open
- Fused ignition Switch output shorted to ground
- Instrument cluster DEF warning lamp circuit shorted
- Open ground circuit-warning lamp
- Warning lamp always ON - other DTC present
- Warning lamp driver circuit open
- Warning lamp driver circuit short to ground
- Warning lamp driver circuit short to voltage
