Passenger Squib Circuit Shorted (Active)

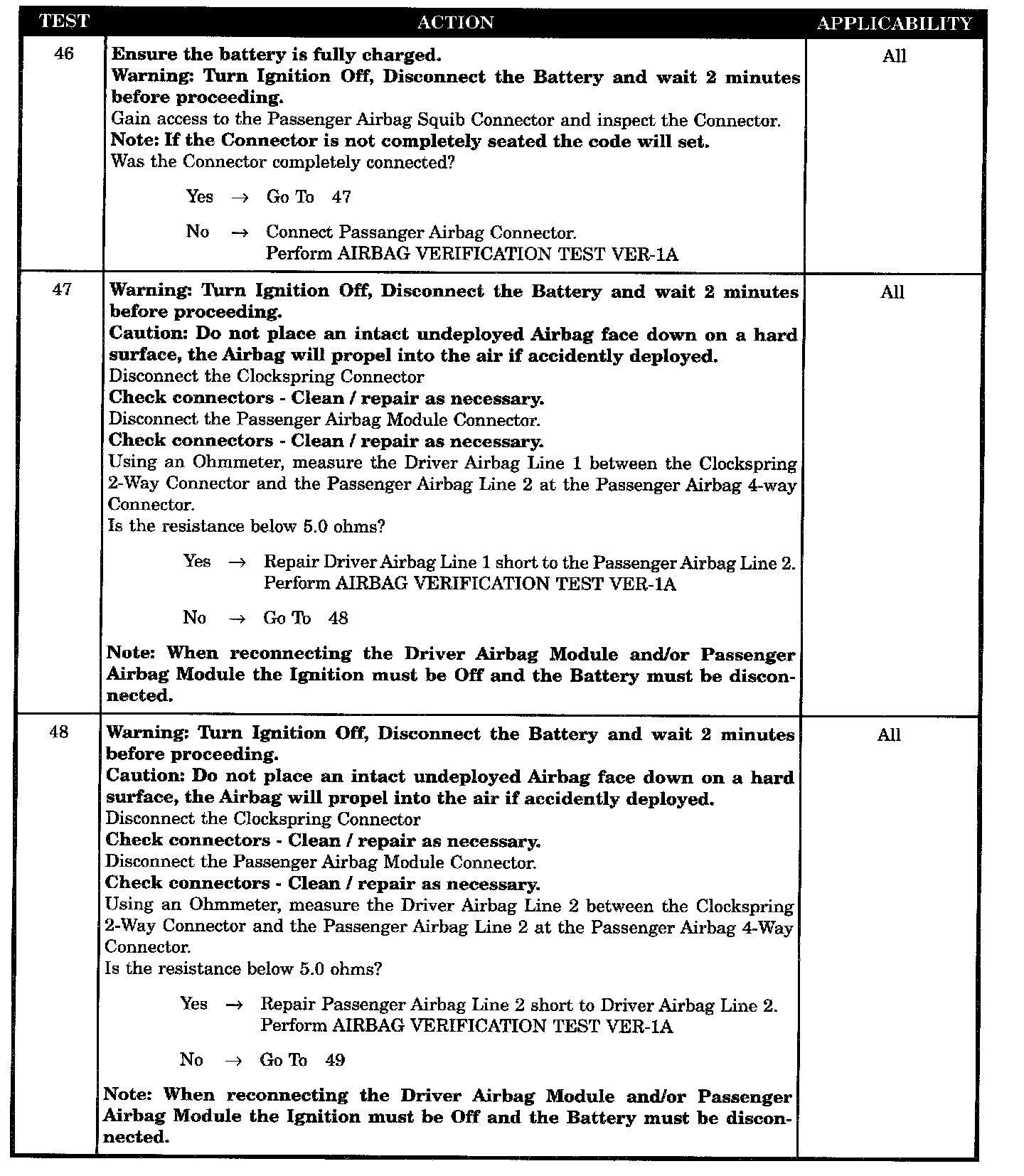

Tests 46 - 48:

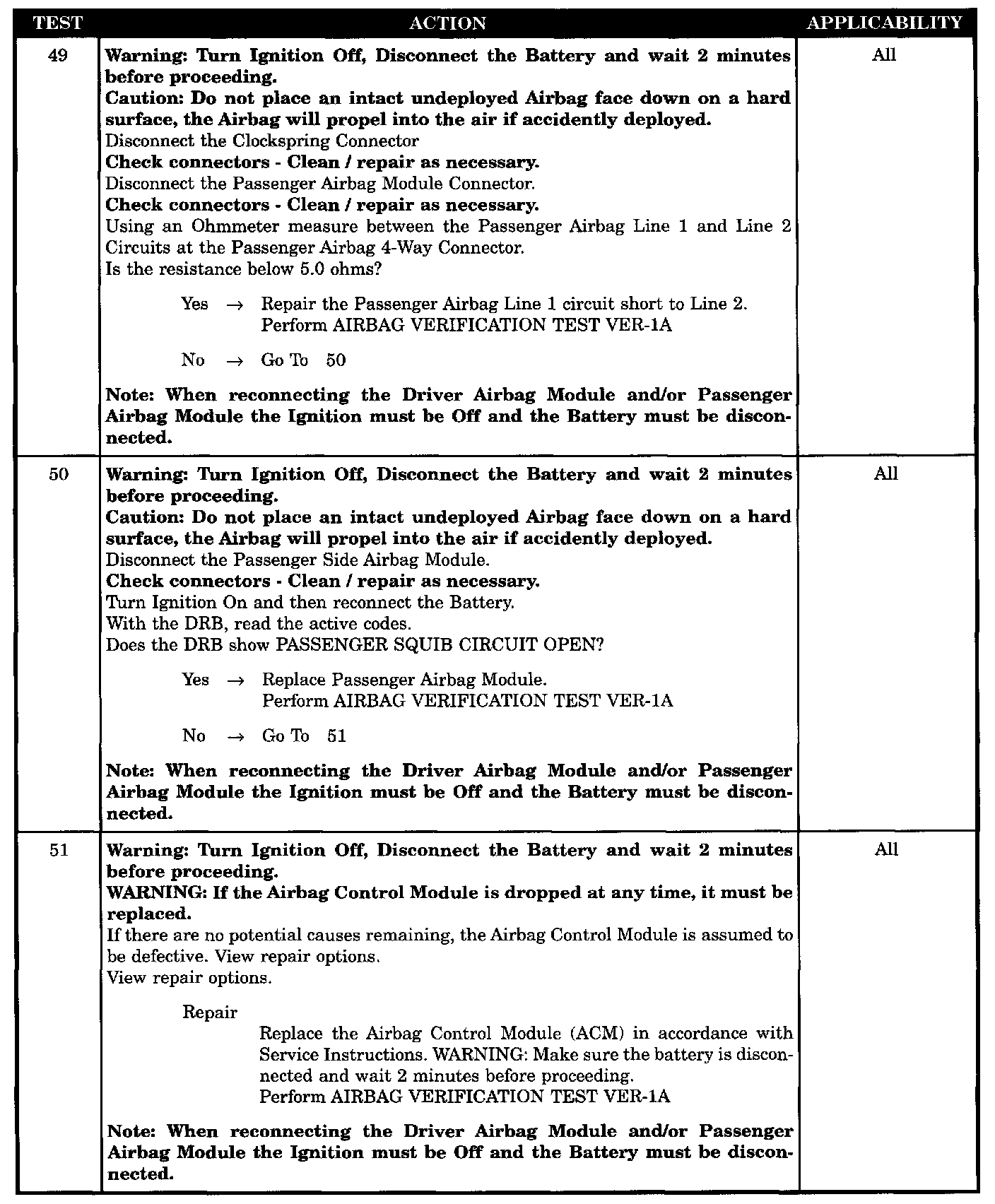

Tests 49 - 51:

SYMPTOM:
PASSENGER SQUIB CIRCUIT SHORTED (ACTIVE)

WHEN MONITORED:
Continuously with ignition ON.

POSSIBLE CAUSES
- ACM Defective, passenger airbag circuit shorted
- Driver airbag line 1 short to passenger airbag line 2
- Driver airbag line 2 short to passenger airbag line 2
- Passenger airbag line 1 shorted to line 2
- Passenger airbag module connector disconnected
- Passenger airbag module shorted
