Passenger Squib Circuit Open (Active)

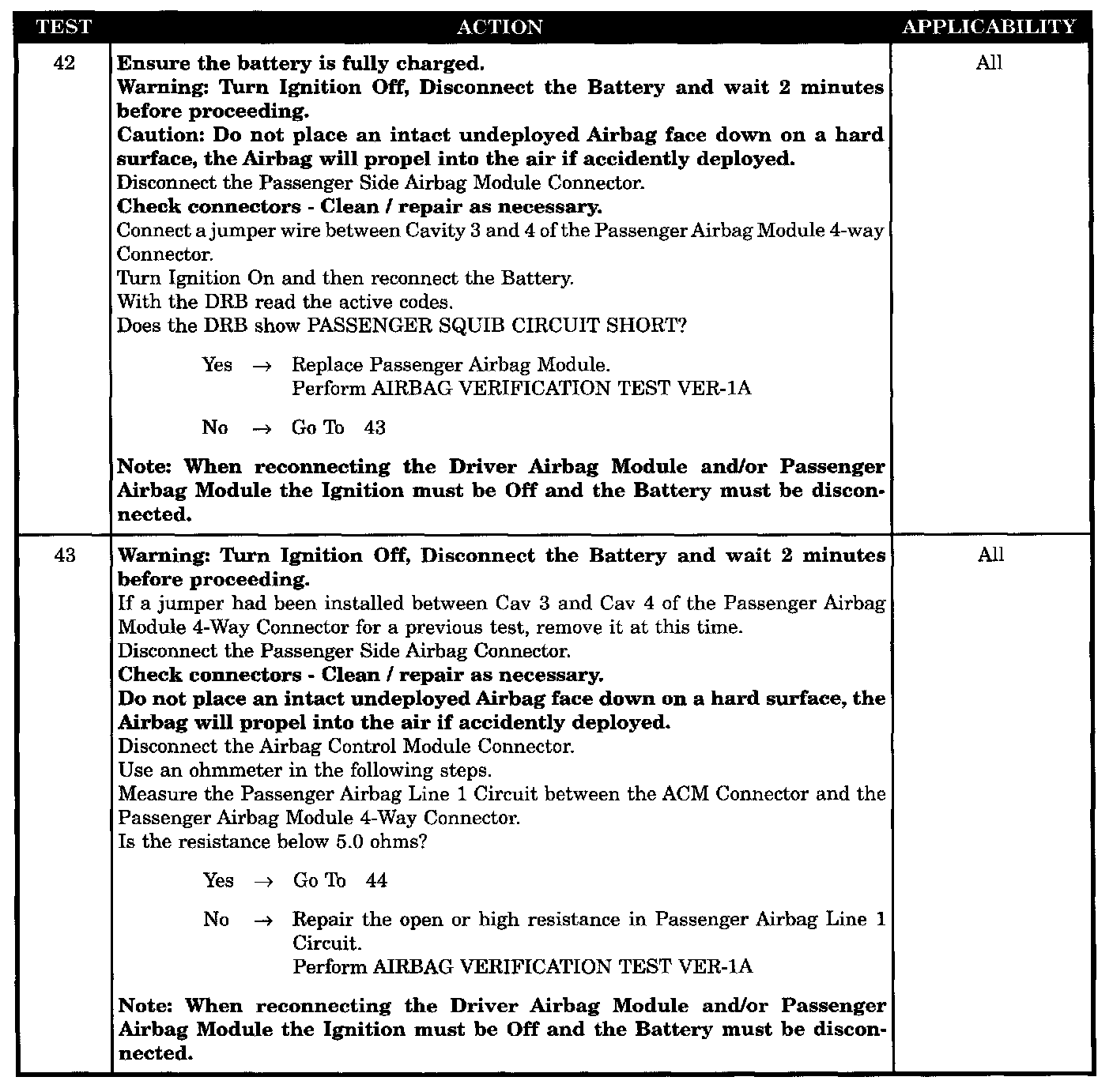

Tests 42 - 43:

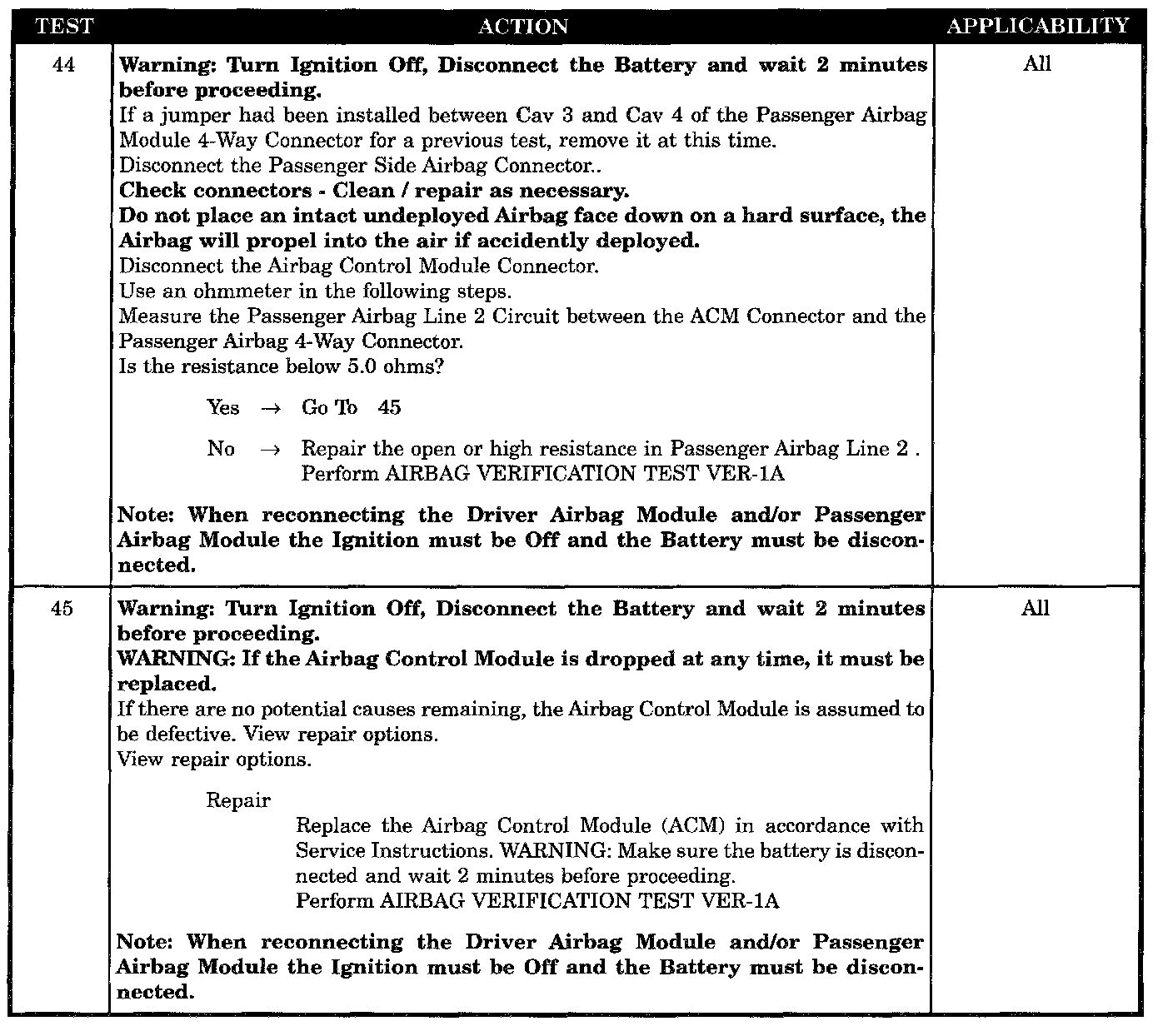

Tests 44 - 45:

SYMPTOM:
PASSENGER SQUIB CIRCUIT OPEN (ACTIVE)

WHEN MONITORED:
Continuously with ignition ON.

POSSIBLE CAUSES
- ACM Defective, passenger airbag circuit open
- Passenger airbag line 1 open
- Passenger airbag line 2 open
- Passenger side airbag module open
