Either Squib Terminal Shorted to Ground (Active)

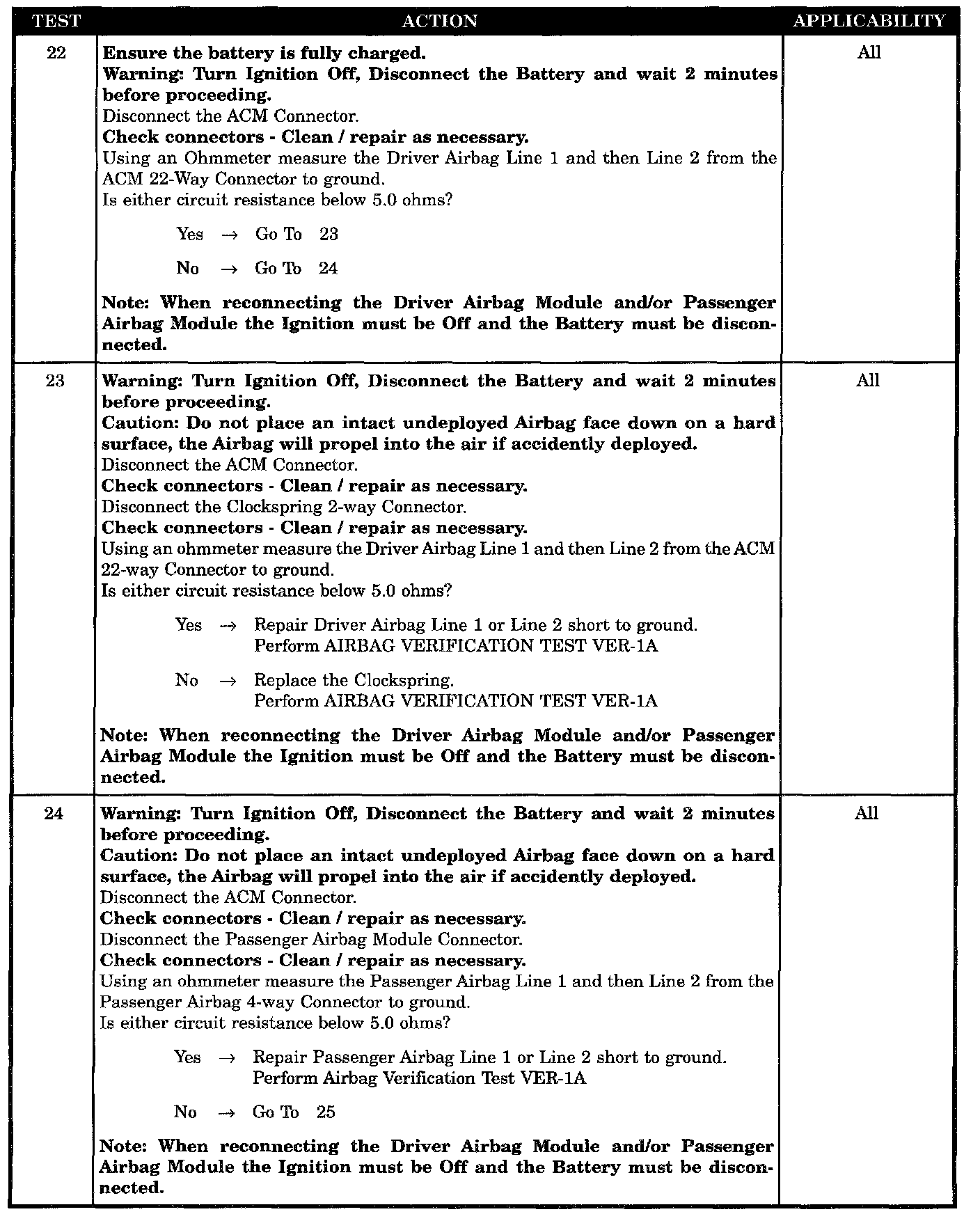

Tests 22 - 24:

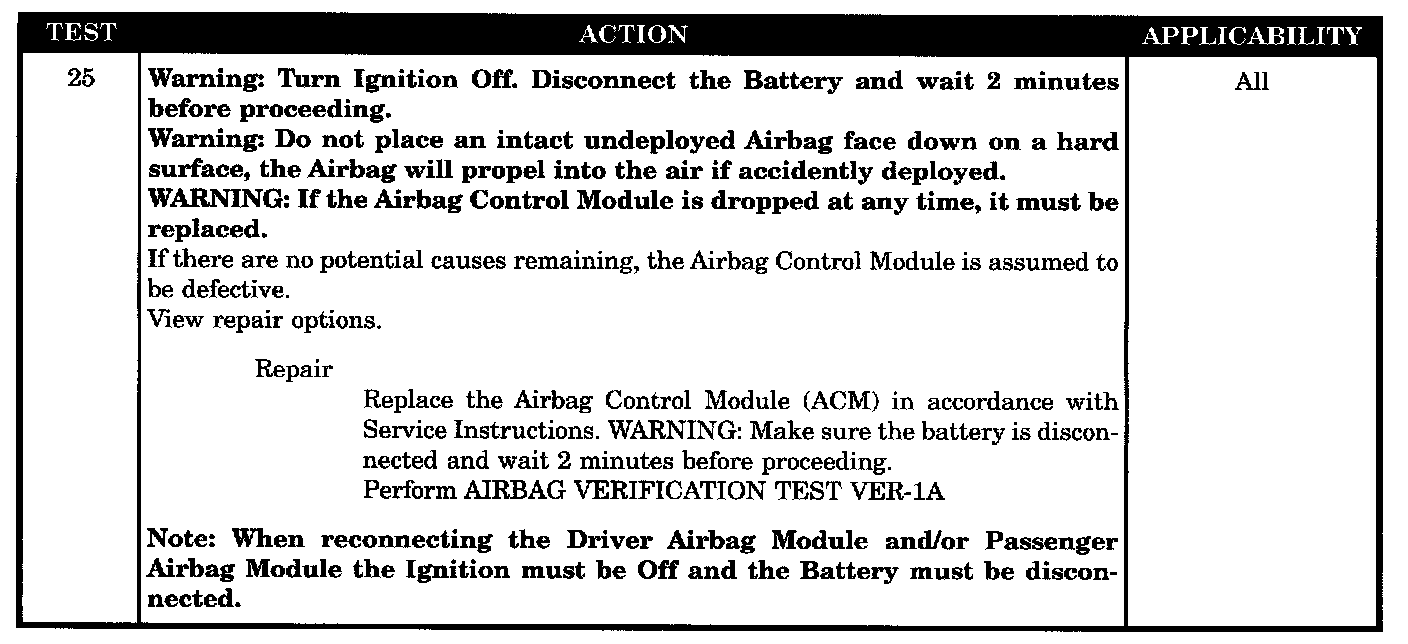

Test 25:

SYMPTOM:
EITHER SQUIB TERMINAL SHORTED TO GROUND (ACTIVE)

WHEN MONITORED:
Continuously with the ignition ON.

SET CONDITION:
With ignition ON, the driver airbag line 1 or line 2 circuit value is other than expected.

POSSIBLE CAUSES
- ACM DEF, driver airbag or passenger airbag short to ground
- Clockspring Defective, short to ground
- Driver airbag line 1 or line 2 short to ground
- Passenger airbag line 1 or 2 short to ground
