Airbag Warning Lamp ON / No Active Codes Present

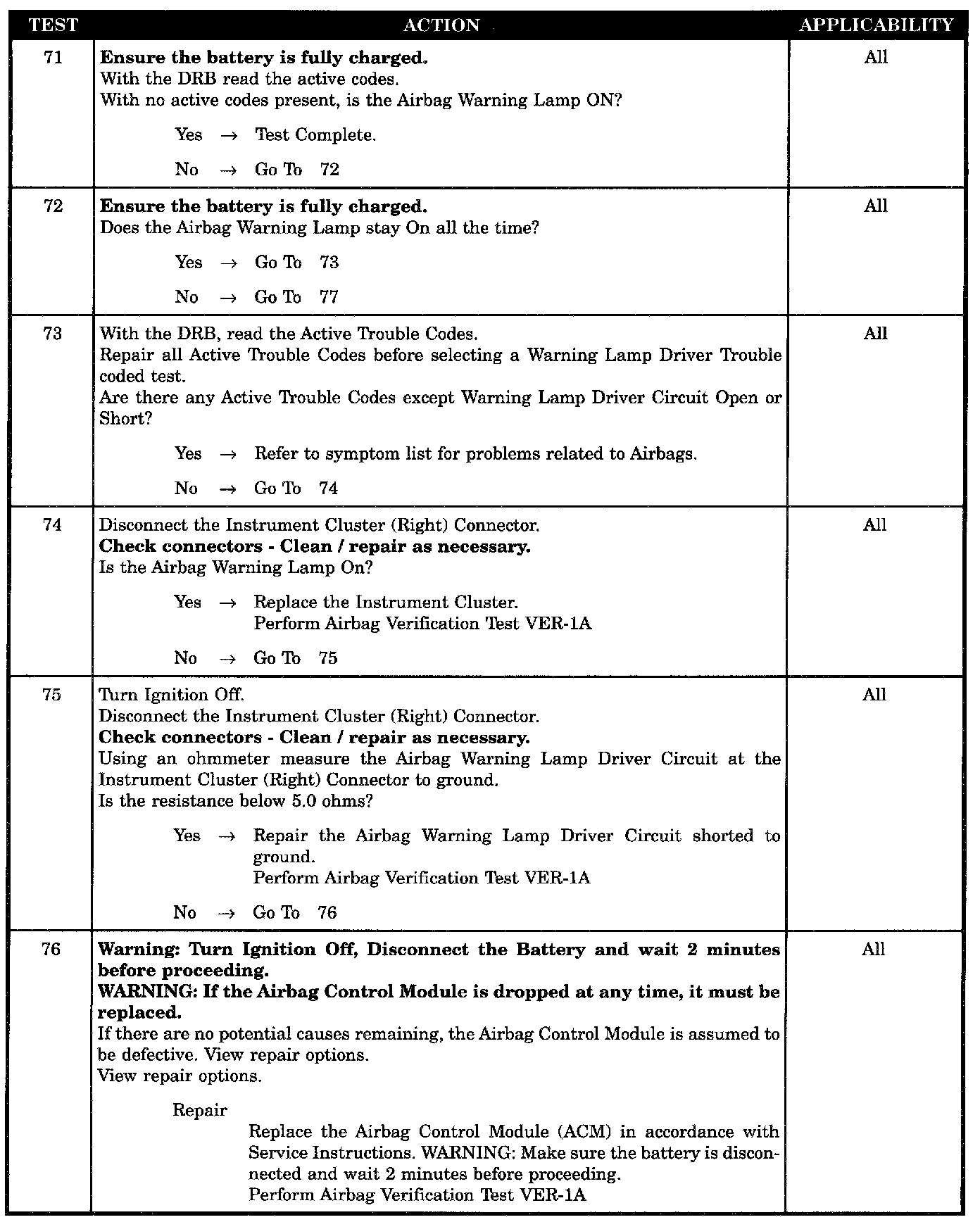

Tests 71 - 76:

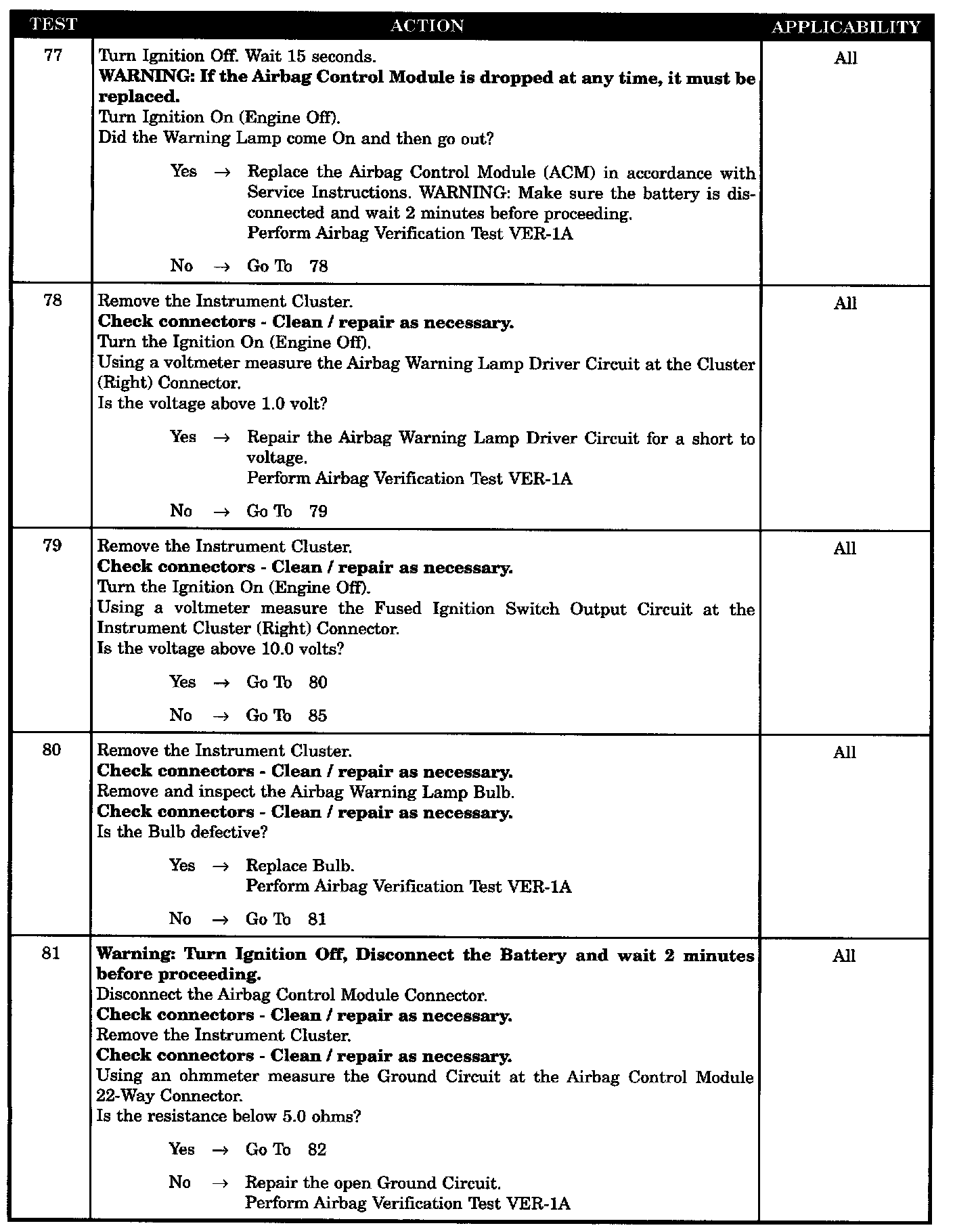

Tests 77 - 81:

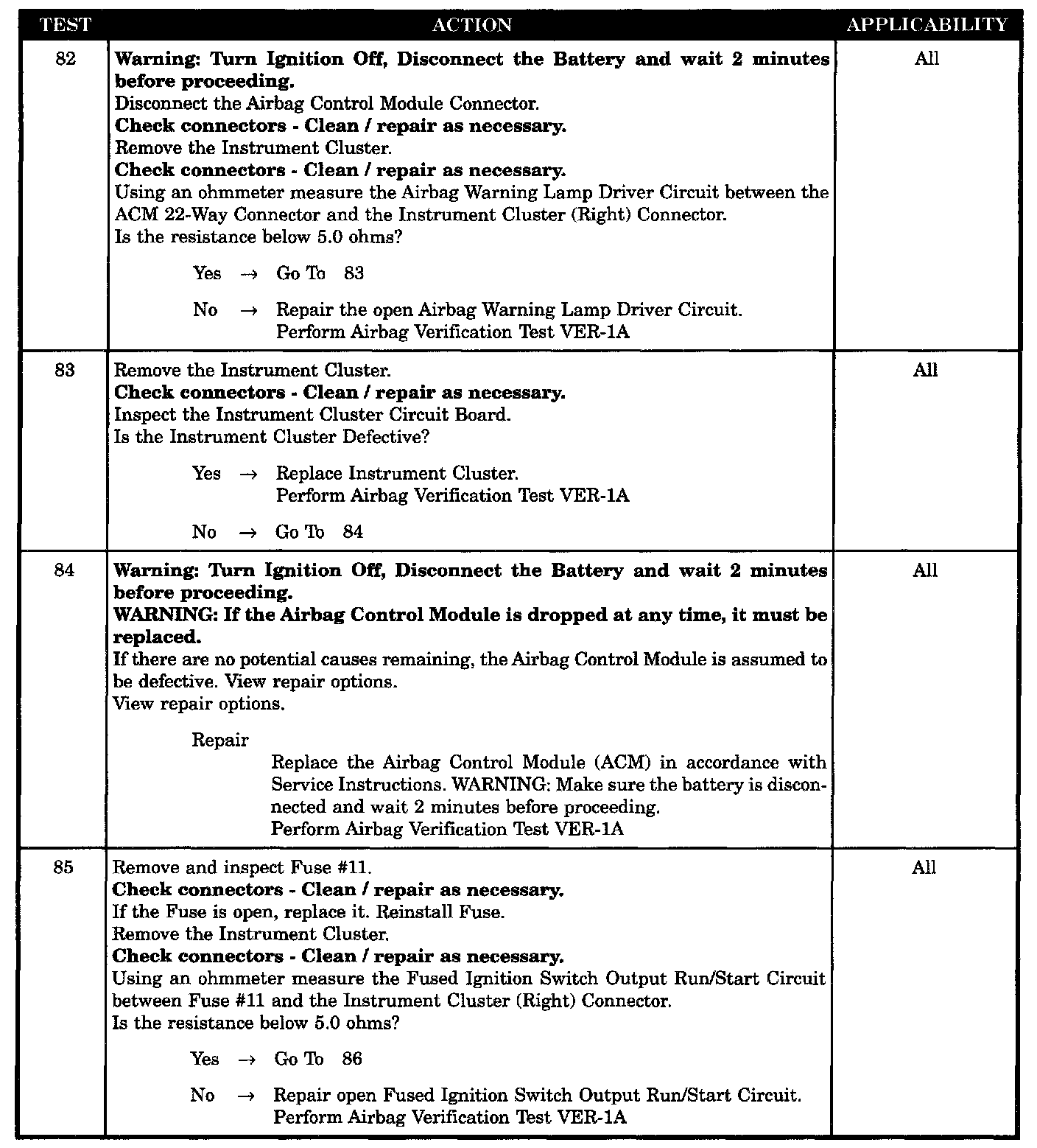

Tests 82 - 85:

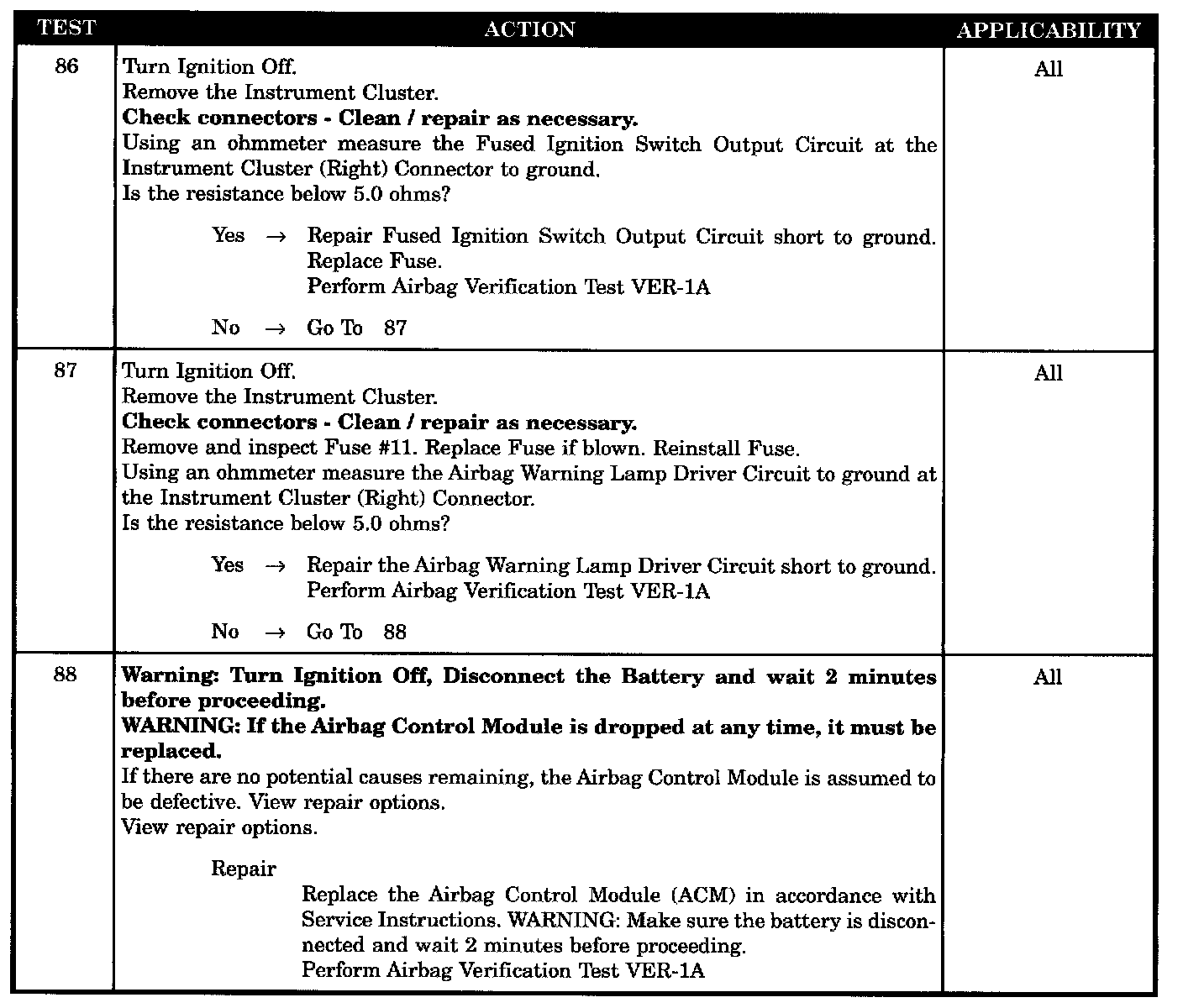

Tests 86 - 88:

SYMPTOM:
* AIRBAG WARNING LAMP ON / NO ACTIVE CODES PRESENT

POSSIBLE CAUSES
- ACM Defective - warning lamp driver circuit open
- ACM Defective - warning lamp driver circuit open 2
- ACM Defective - warning lamp driver CKT shorted
- ACM self test fails
- Airbag warning lamp driver circuit short to GND
- Defective airbag warning lamp - bulb
- Defective warning lamp - circuit board
- Fused ignition Switch output run/start open
- Fused ignition Switch output shorted to ground
- Instrument cluster DEF, warning lamp circuit shorted
- Open ground circuit-warning lamp
- Warning lamp always ON - other DTC present
- Warning lamp driver circuit open
- Warning lamp driver circuit short to ground
- Warning lamp driver circuit short to voltage
