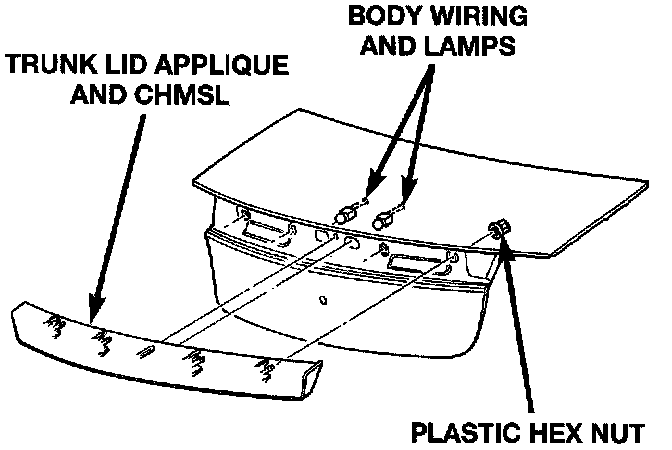

CHMSL and Applique Housing

REMOVAL
1. Release decklid latch and open decklid.
2. Remove decklid cover.

CHMSL Housing:

3. Disconnect CHMSL wire connector from body harness.
4. Remove fasteners attaching CHMSL and applique to the decklid.
5. Remove CHMSL from decklid.

INSTALLATION
1. Place CHMSL in position on decklid.
2. Install fasteners attaching CHMSL and applique to decklid.
3. Connect CHMSL wire connector to body harness.
4. Verify CHMSL operation.
5. Install decklid cover.
