Floor Console

CENTER CONSOLE REMOVAL

1. Remove shift knob.
2. Remove center console shift bezel.
3. Disconnect wire connectors.

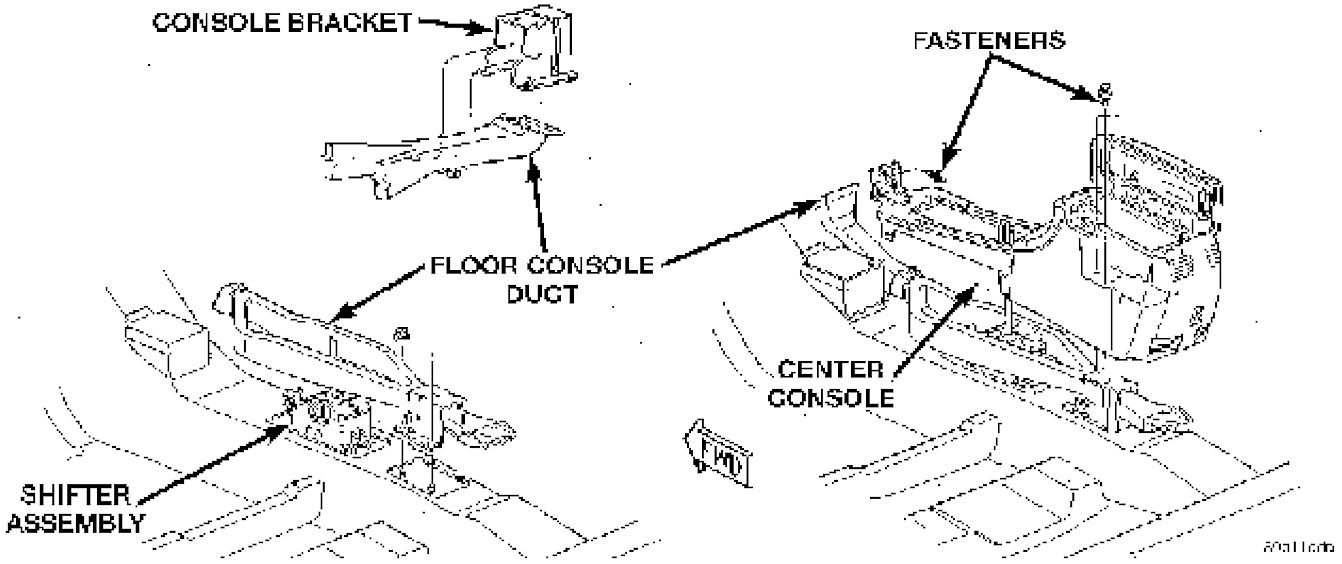

Intrepid Shown - LHS/300M Similar:

4. Remove side panels.
5. Remove fasteners attaching forward bracket to instrument panel.







6. Remove fasteners attaching bottom of console storage bin to rear mounting bracket.
7. Remove center console from vehicle.

INSTALLATION

1. Place center console in position on vehicle.
2. Install fasteners to attach forward bracket to instrument panel.
3. In stall fasteners to attach bottom of console storage bin to rear mounting bracket.
4. Install side panels.
5. Install center console shift bezel.
6. Install shift knob.
