P1765

Test 468-472:

Test 473-476:

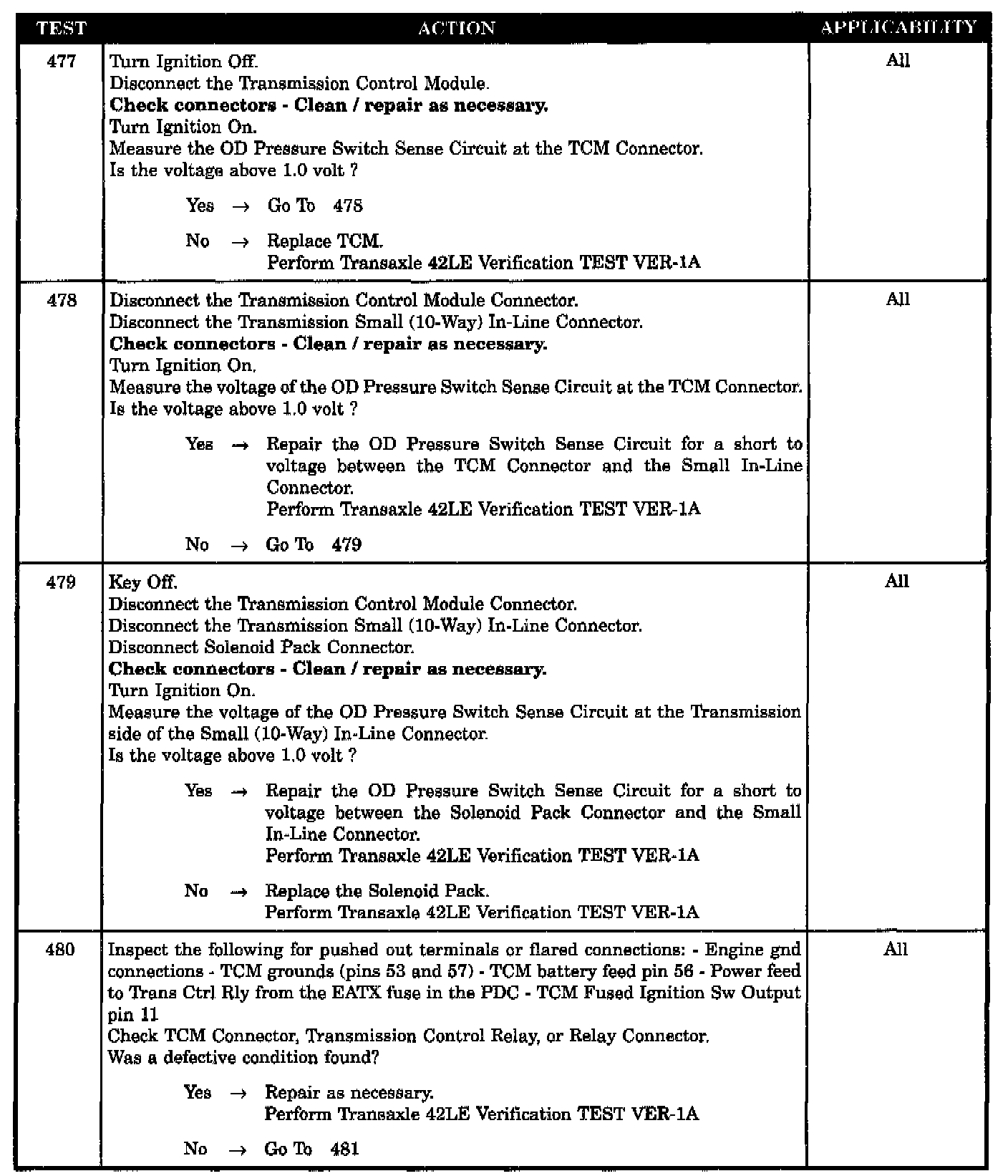

Test 477-480:

Test 481-482:

SYMPTOM:
P1765-SWITCHED BATTERY

When Monitored and Set Condition:
P1765-SWITCHED BATTERY
When Monitored: Ignition key is turned from off position to run and/or ignition key is turned from crank position to run. The following conditions must be met for a successful OBDII trip: Engine must run > 2 mins, Turbine speed > 600 RPM or output speed > 400 RPM,
Set Condition: if trans is below normal operating temp, all fwd gears must be applied for 3.5 secs each and trans must be in park or neutral for 3.5 secs. If trans is hot, all fwd gears must be applied for 1.5 secs each and trans be in park. No MIL lamp trouble codes.

POSSIBLE CAUSES
- CHECKING SYMPTOMS AND POSSIBLE CAUSES
- LOW BATTERY VOLTAGE CAUSING SYMPTOM
- 2-4 PRESS SWITCH SENSE CIRCUIT SHORT TO VOLTAGE AT SOLENOID PACK CONNECTOR
- 2-4 PRESSURE SWITCH SHORT TO VOLTAGE AT INLINE CONNECTOR
- L-R PRES SWITCH SENSE SHORT TO VOLT AT INLINE CONNECTOR
- L-R PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE AT SOLENOID PACK CONNECTOR
- OD PRES SWITCH SENSE CIRCUIT SHORT TO VOLT AT SOLENOID PACK CONNECTOR
- OD PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE AT TCM CONNECTOR
- OD PRESSURE SWITCH SHORT TO VOLTAGE AT INLINE CONNECTOR
- 2-4 PRESSURE SENSE SHORT TO VOLTAGE AT SOLENOID PACK
- L-R PRESSURE SENSE SHORT TO VOLTAGE AT SOLENOID PACK
- OD PRESSURE SENSE SHORT TO VOLTAGE AT SOLENOID PACK
- INTERMITTENT CODE P1765
