P0765

Test 407-411:

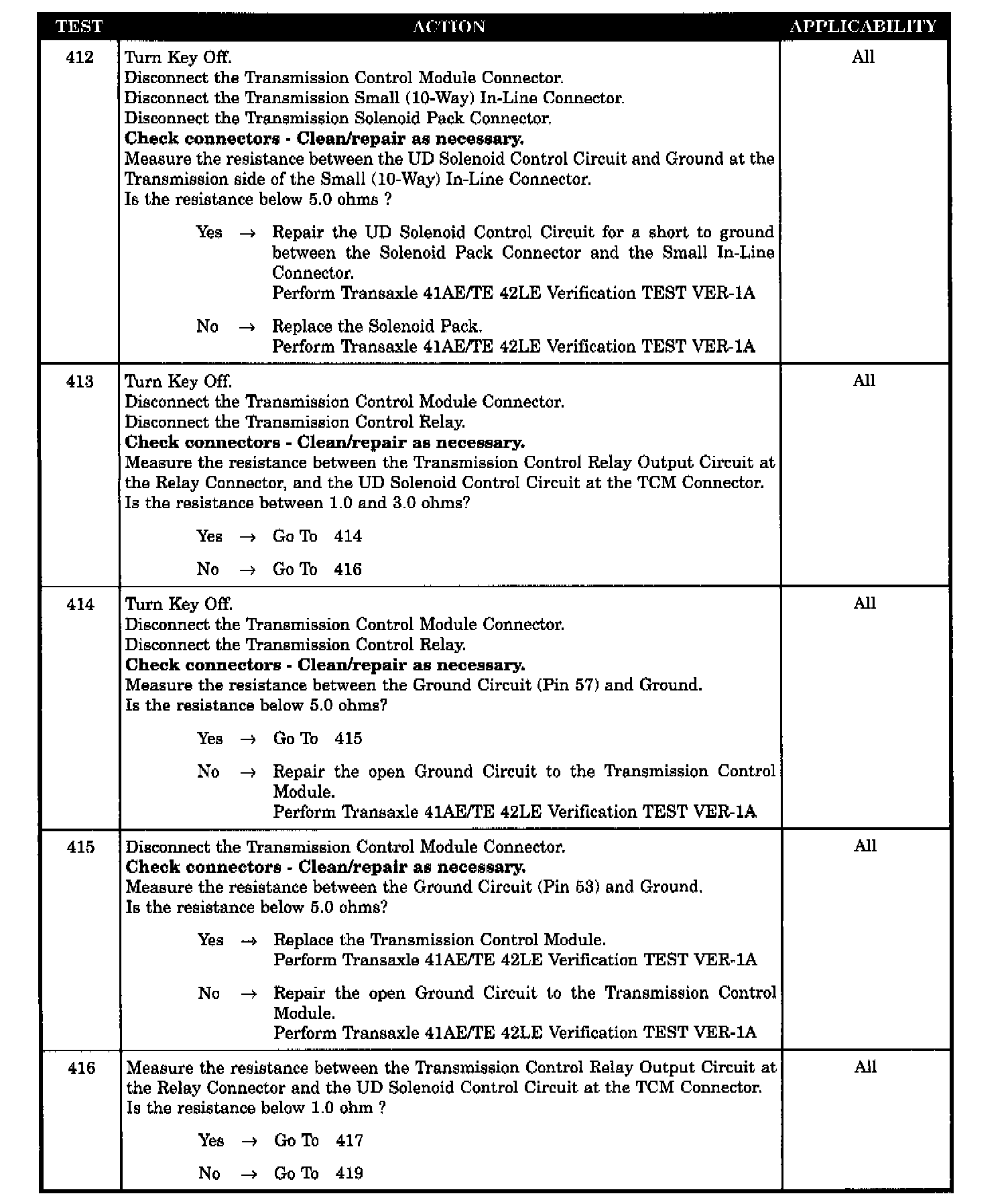

Test 412-416:

Test 417-419:

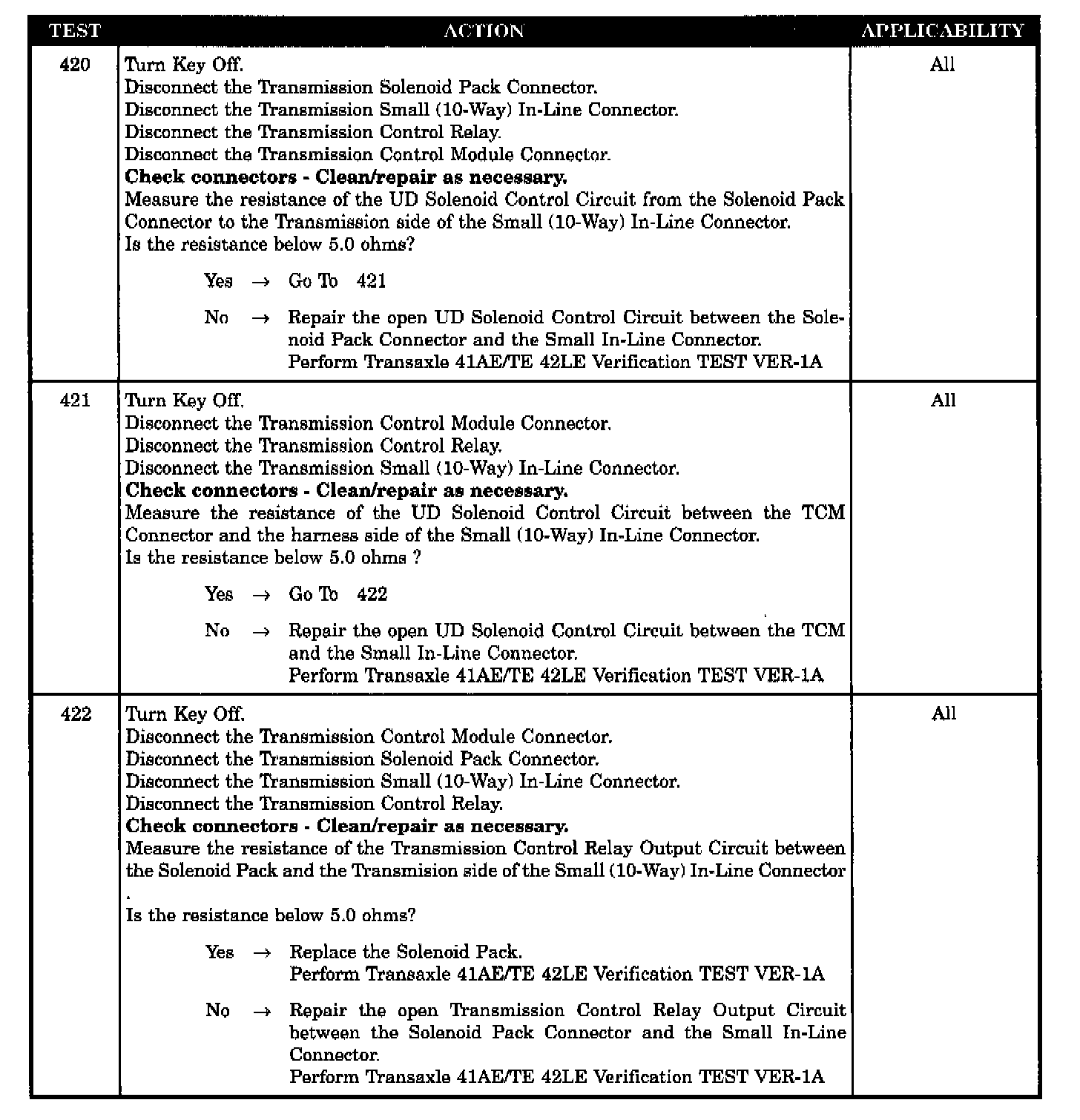

Test 420-422:

Test 423-425:

SYMPTOM:
P0765-UD SOLENOID CIRCUIT

When Monitored and Set Condition:
P0765-UD SOLENOID CIRCUIT
When Monitored: Ignition key is turned from off or crank position to run, then every 10 secs. thereafter, or when speed ratio or pressure sw error fault is detected. All 4 solenoids (sol) are tested for continuity during vehicle operation. For sol currently energize,
Set Condition: power is momentarily interrupted, then energized. For sol not currently energized sol is momentarily energized then deenergized. Under both situations, if an inductive spike is not sensed by TCM during the continuity check, it is retested again.

POSSIBLE CAUSES
- CHECKING SYMPTOMS AND POSSIBLE CAUSES
- LOW BATTERY VOLTAGE CAUSING SYMPTOM
- PIN 53 GROUND CKT OPEN TO THE TCM
- PIN 57 GROUND CIRCUIT OPEN TO THE TRANSMISSION CONTROL MODULE
- TCR OUTPUT CIRCUIT SHORT TO UD SOLENOID CIRCUIT
- TRANSMISSION CONTROL MODULE OPEN GND
- TCR OUTPUT (SWITCHED B+) OPEN AT INLINE CONNECTOR
- TCR OUTPUT CKT OPEN BTWN SOLENOID PACK & INLINE CONN
- TSP UD SOLENOID CONTROL CKT SHORT TO GND
- DEFECTIVE SOLENOID PACK
- TSP OPEN (UD SOLENOID)
- UD SOLENOID CNTRL CKT TO SOLENOID CONNECTOR OPEN
- UD SOLENOID CONTROL CIRCUIT SHORT TO GROUND
- UD SOLENOID CONTROL GROUND SHORT AT INLINE CONNECTOR
- SOLENOID CONTROL CKT OPEN BTWN TCM AND INLINE CONNECTOR
- UD SOLENOID CNTRL CKT SHORT TO TCR OUTPUT CKT AT INLINE
- INTERMITTENT CODE P0765
- LOW OR DEFECTIVE BATTERY
