Home >> Dodge >> 1999 >> Intrepid V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Heating and Air Conditioning >> Manual HVAC System >> 5A A/C Control Blend Door Input Shorted to Battery

5A A/C Control Blend Door Input Shorted to Battery

Related Images:

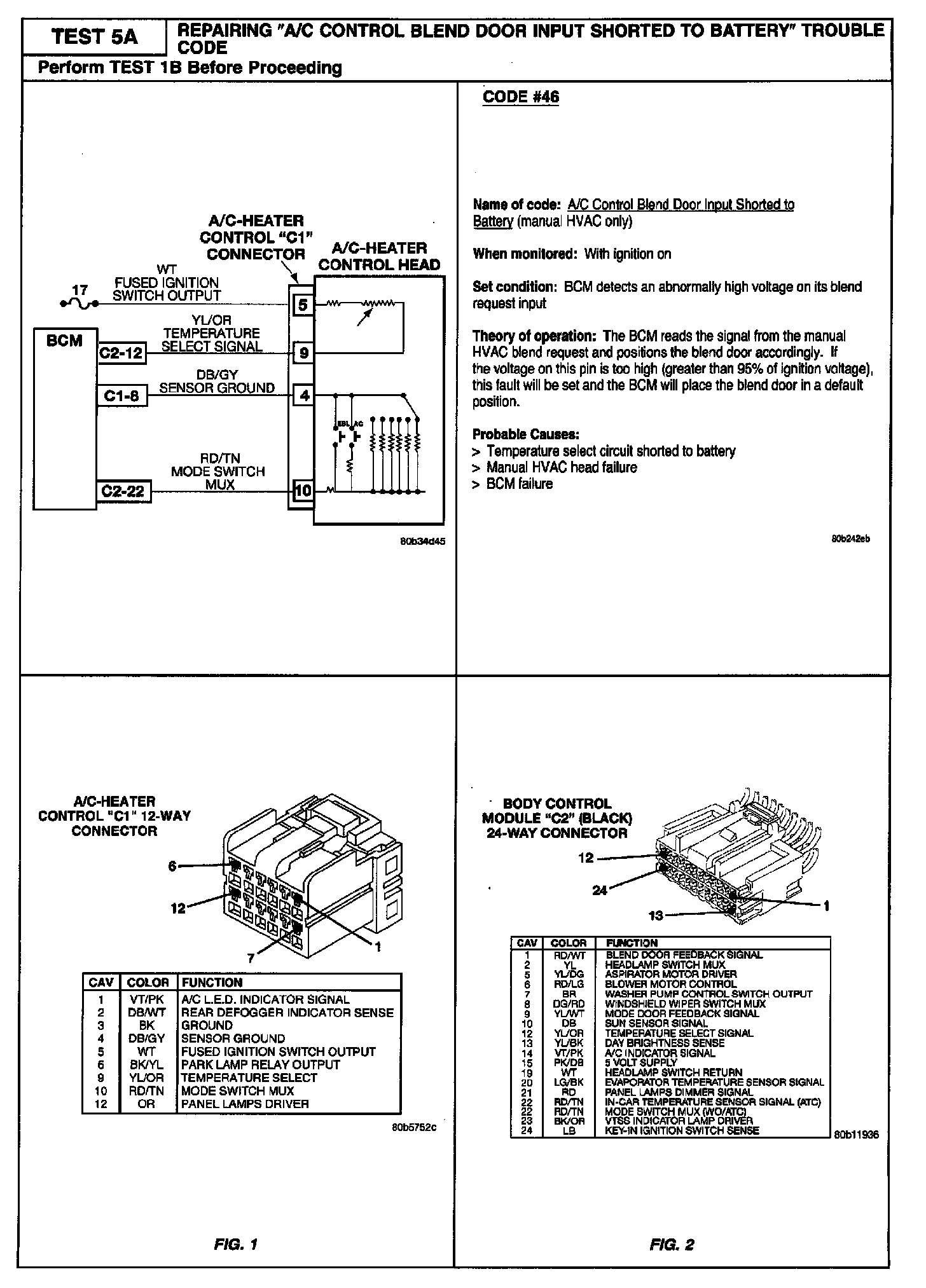

Diagnostic Chart:
