Home >> Dodge >> 1999 >> Intrepid V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Heating and Air Conditioning >> Manual HVAC System >> 4A A/C Control Blend Door Input Open or Short to Ground

4A A/C Control Blend Door Input Open or Short to Ground

Related Images:

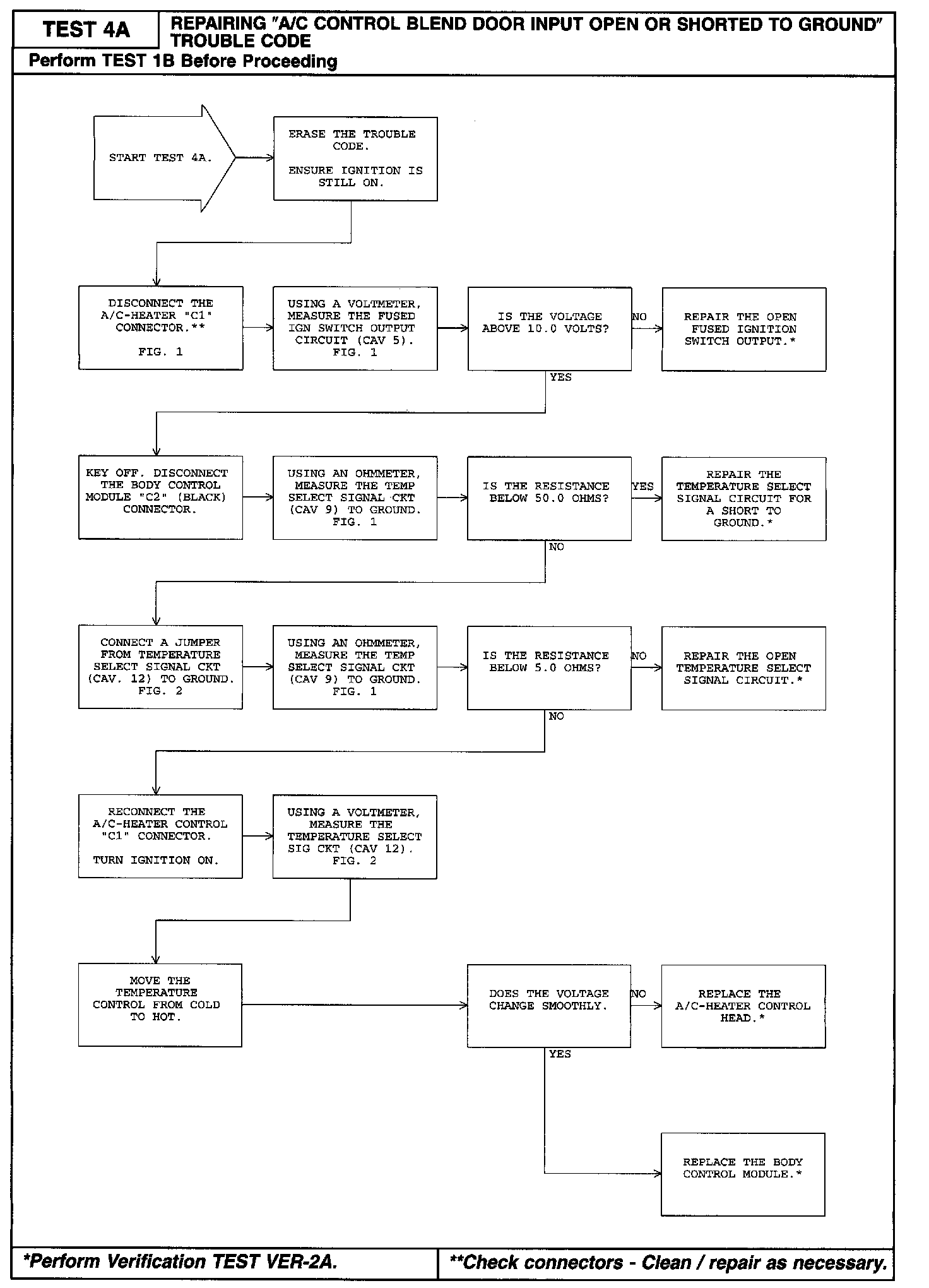

Diagnostic Chart:
