Intrepid V6-2.7L VIN R
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Heating and Air Conditioning
>>
Automatic Temperature Control (ATC) HVAC System
>>
5A Blend, Mode, Recirc Door or Common Output Short to Battery
5A Blend, Mode, Recirc Door or Common Output Short to Battery

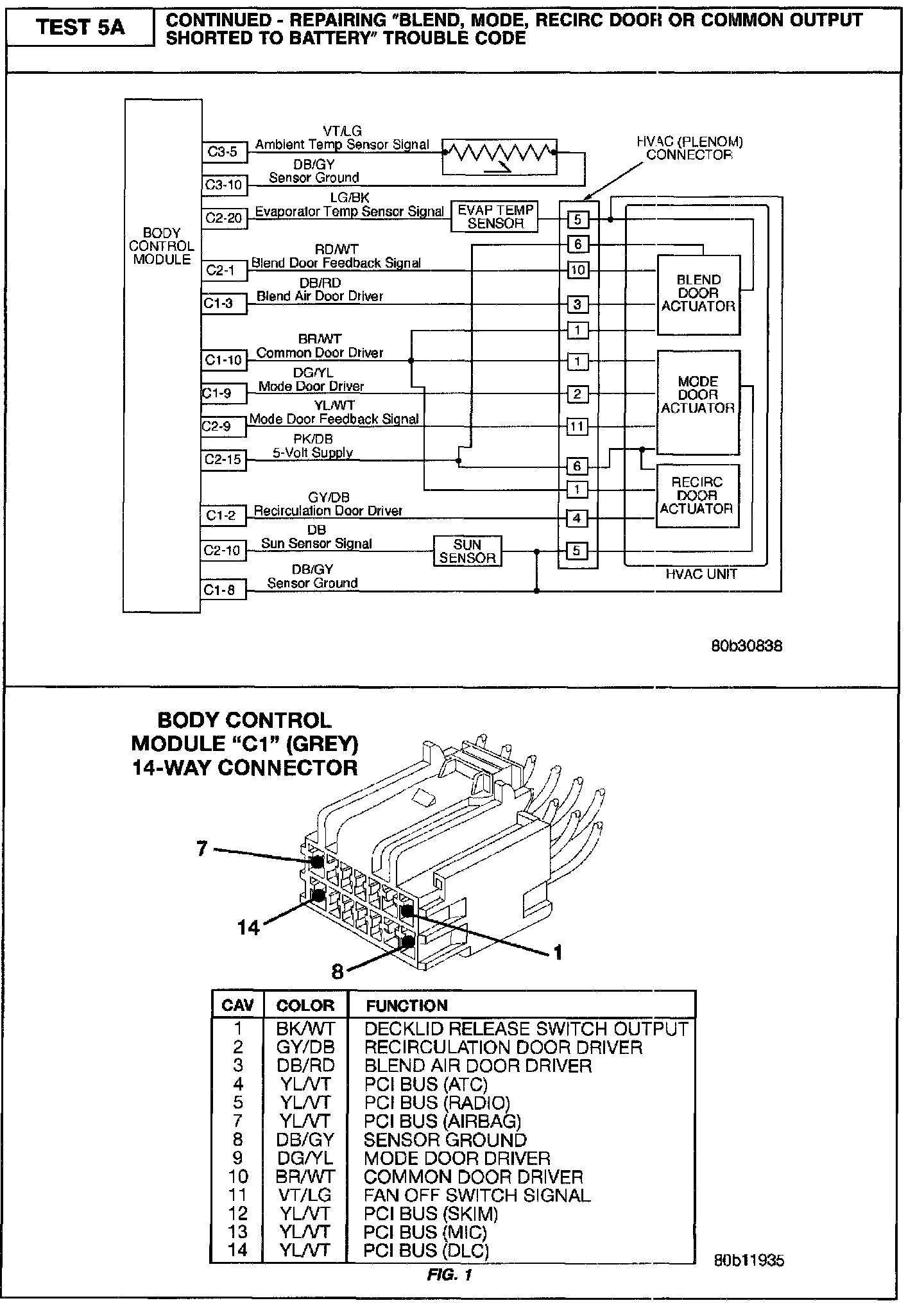

Related Images:

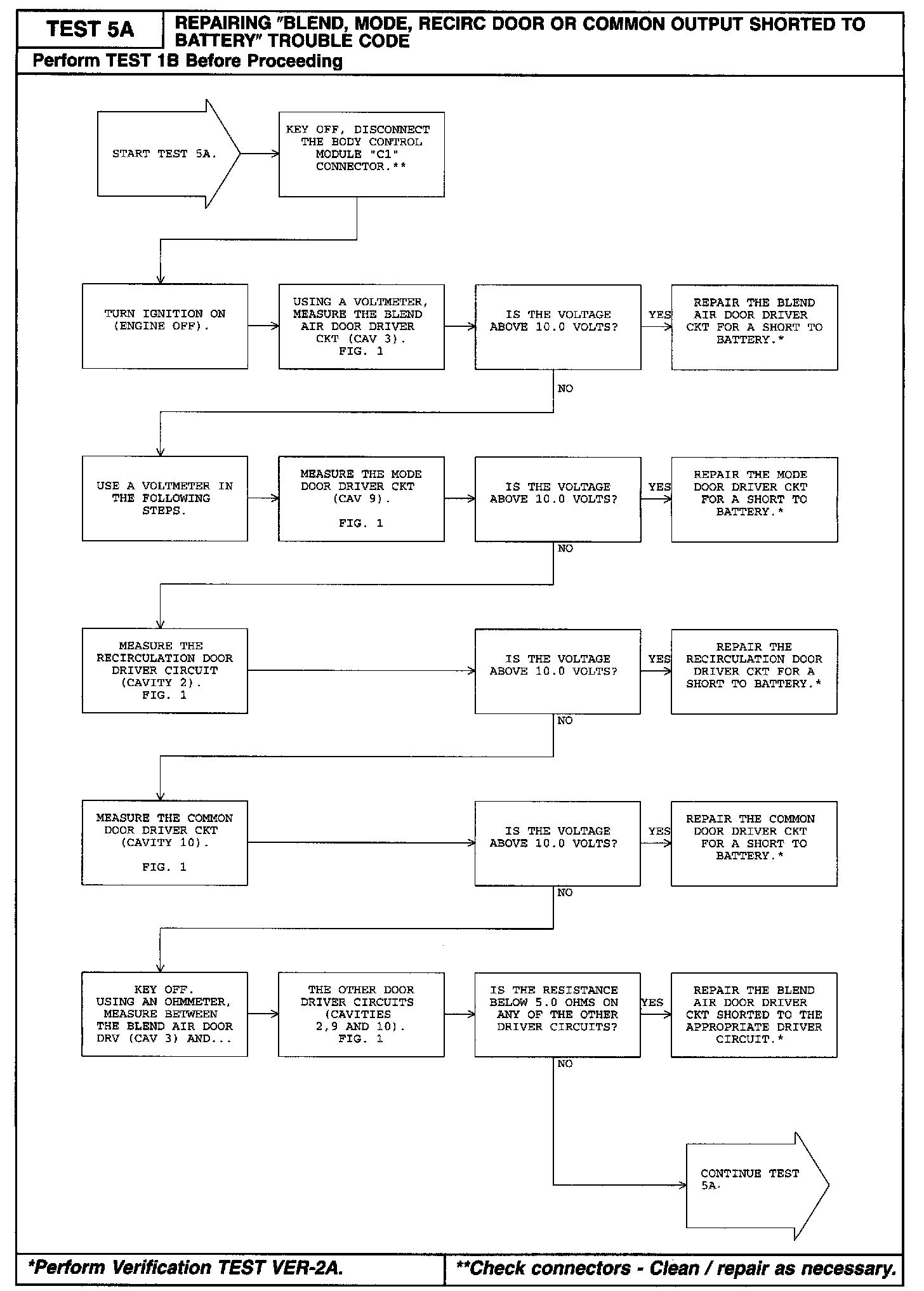

Diagnostic Chart:
Related Images:
Diagnostic Chart:
