Shift Cable: Adjustments

1. Remove shift console from vehicle.

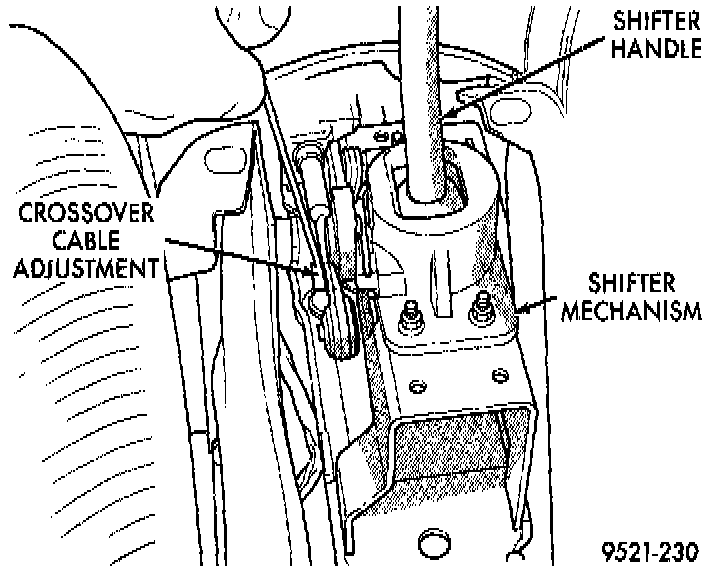

Loosen Crossover Cable Adjustment Screw:

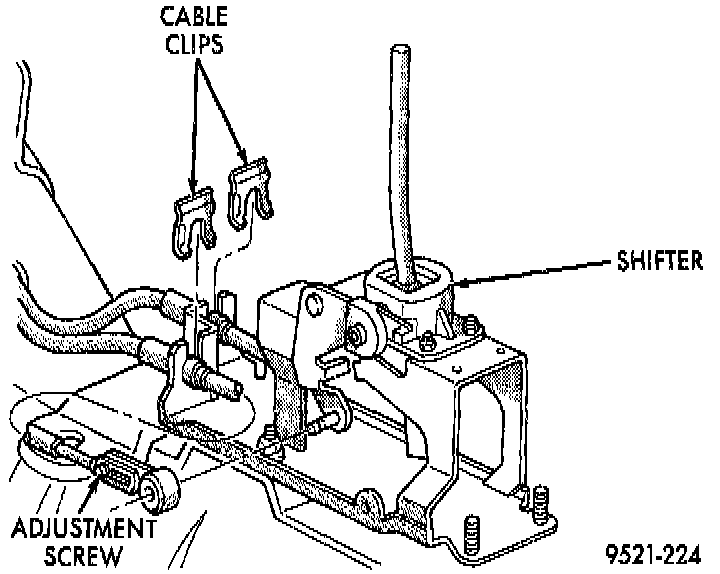

Crossover Cable Adjustment Screw:

2. Loosen adjusting screw on crossover cable at shifter.

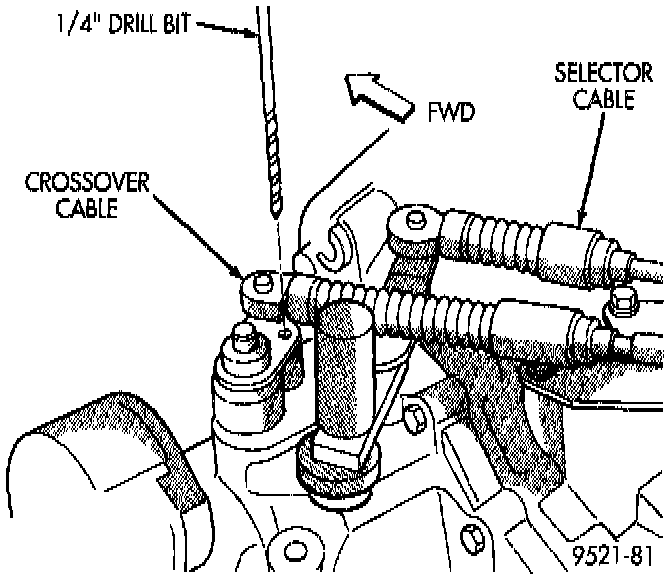

Crossover Lever Pin Procedure:

3. Pin transaxle crossover lever in 34 neutral position using a 1/4 inch drill bit. Align hole in crossover lever with the hole in the boss on the transaxle case. Make sure drill bit goes into transaxle case at least one half inch.
4. The shifter is spring loaded and self centering. Allow shifter to rest in its neutral position. Torque adjustment screw to 8 Nm (70 inch lbs.). Care must be taken to avoid moving the shift mechanism off-center during screw tightening.
5. Remove drill bit from transaxle case and perform functional check by shifting transaxle into all gears.
6. Reinstall console. Reinstall boot and knob.
