Clutch Switch: Description and Operation

The clutch pedal position switch functions as a safety interlock device. It prevents possible engine cranking with the clutch engaged.
The clutch pedal position switch is wired in series between the starter relay coil and the ignition switch.

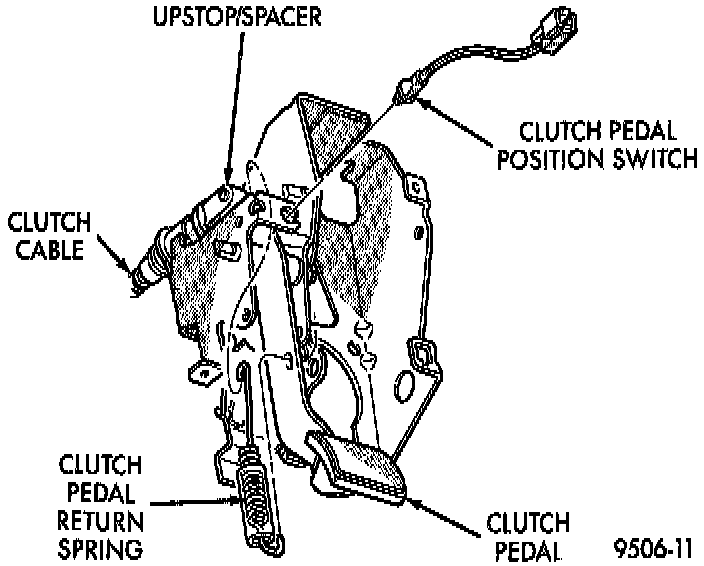

Clutch Pedal Position Switch And Components:

The clutch pedal position switch is mounted to a bracket located behind the clutch pedal. The switch is held in place by four plastic wing tabs.
The clutch pedal position switch IS NOT adjustable. The pedal blade contacts the switch in the down position.
