Electrical Diagrams

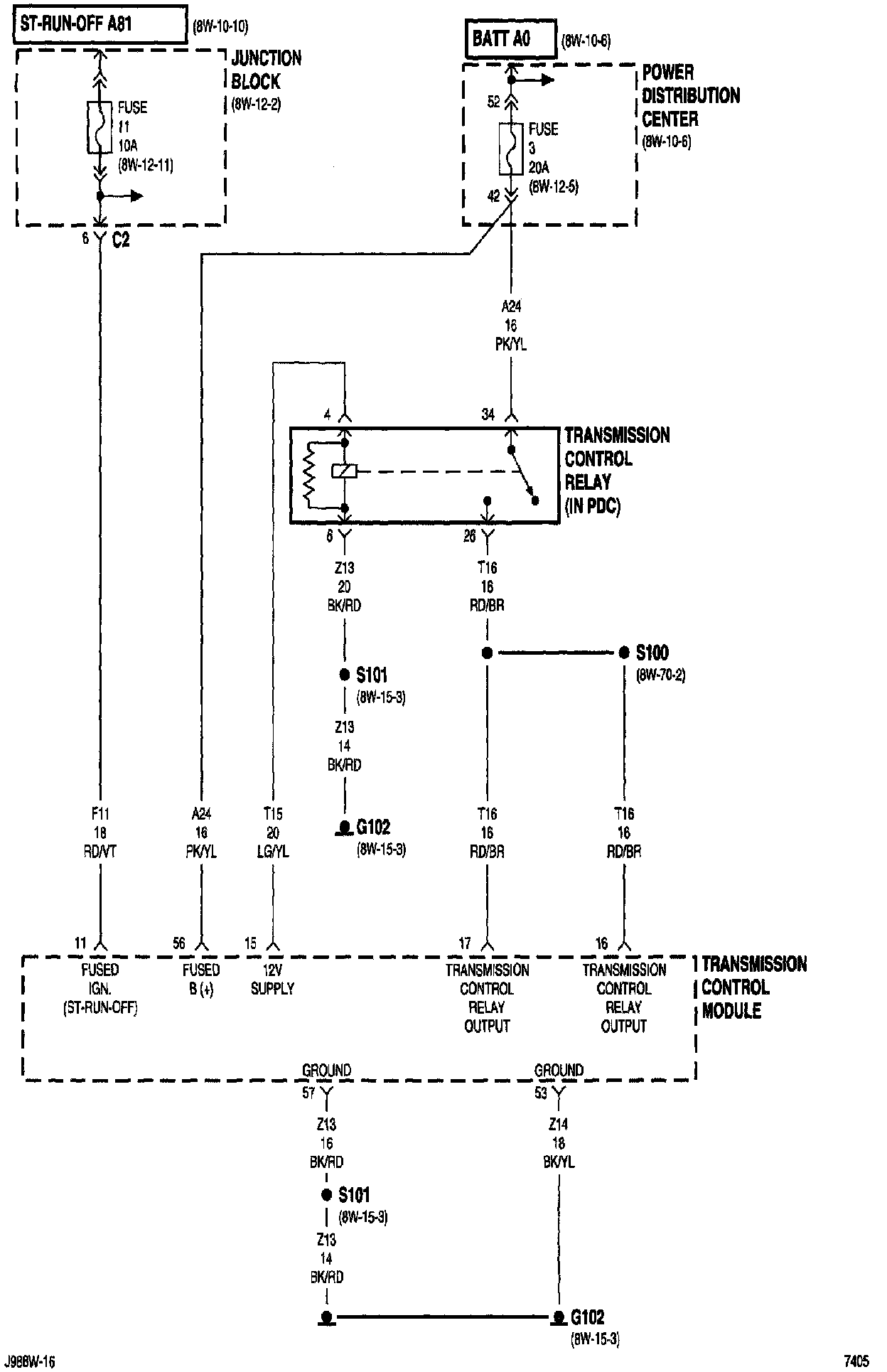

Transmission Control System (Part 1 Of 7):

Fuse 3 (JB)
Fuse 11 (JB)
G102
Junction Block
Power Distribution Center
Transmission Control Module
Transmission Control Relay

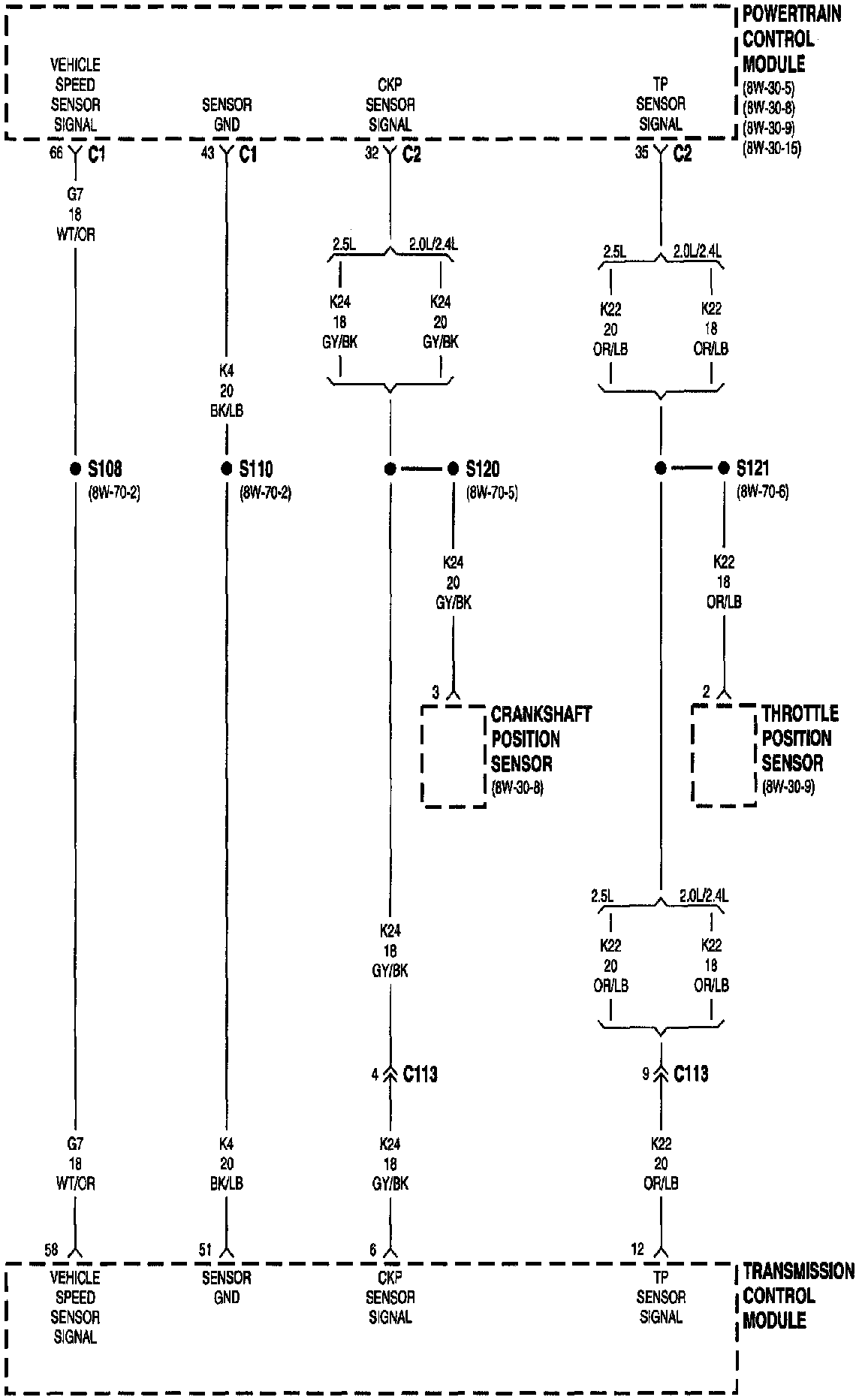

Transmission Control System (Part 2 Of 7):

Output Shaft Speed Sensor
Transmission Control Module
Turbine Speed Sensor

Transmission Control System (Part 3 Of 7):

Crankshaft Position Sensor
Powertrain Control Module
Throttle Position Sensor
Transmission Control Module

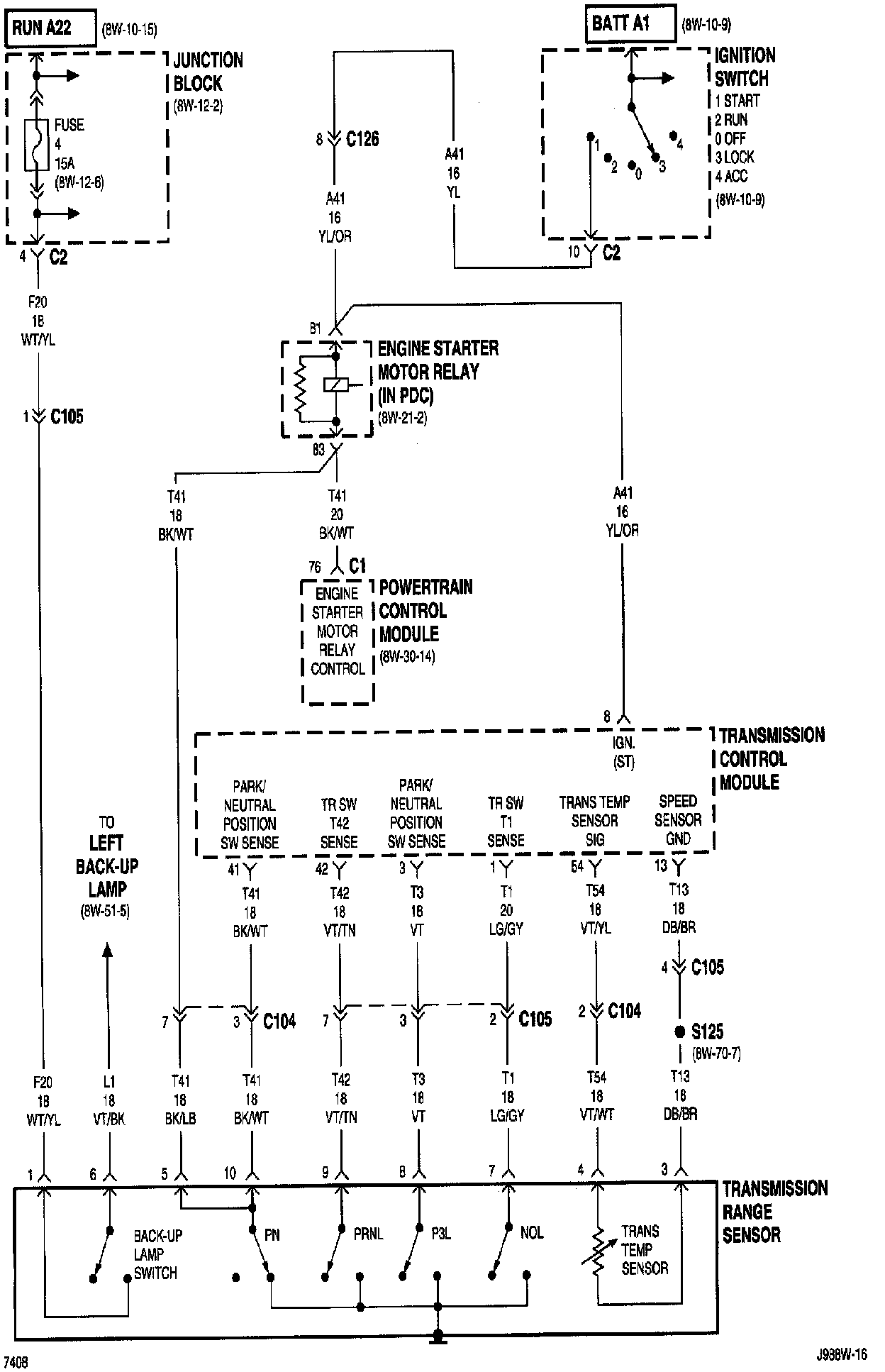

Transmission Control System (Part 4 Of 7):

Engine Starter Motor Relay
Fuse 4 (JB)
Ignition Switch
Junction Block
Left Back-Up Lamp
Powertrain Control Module
Transmission Control Module
Transmission Range Sensor

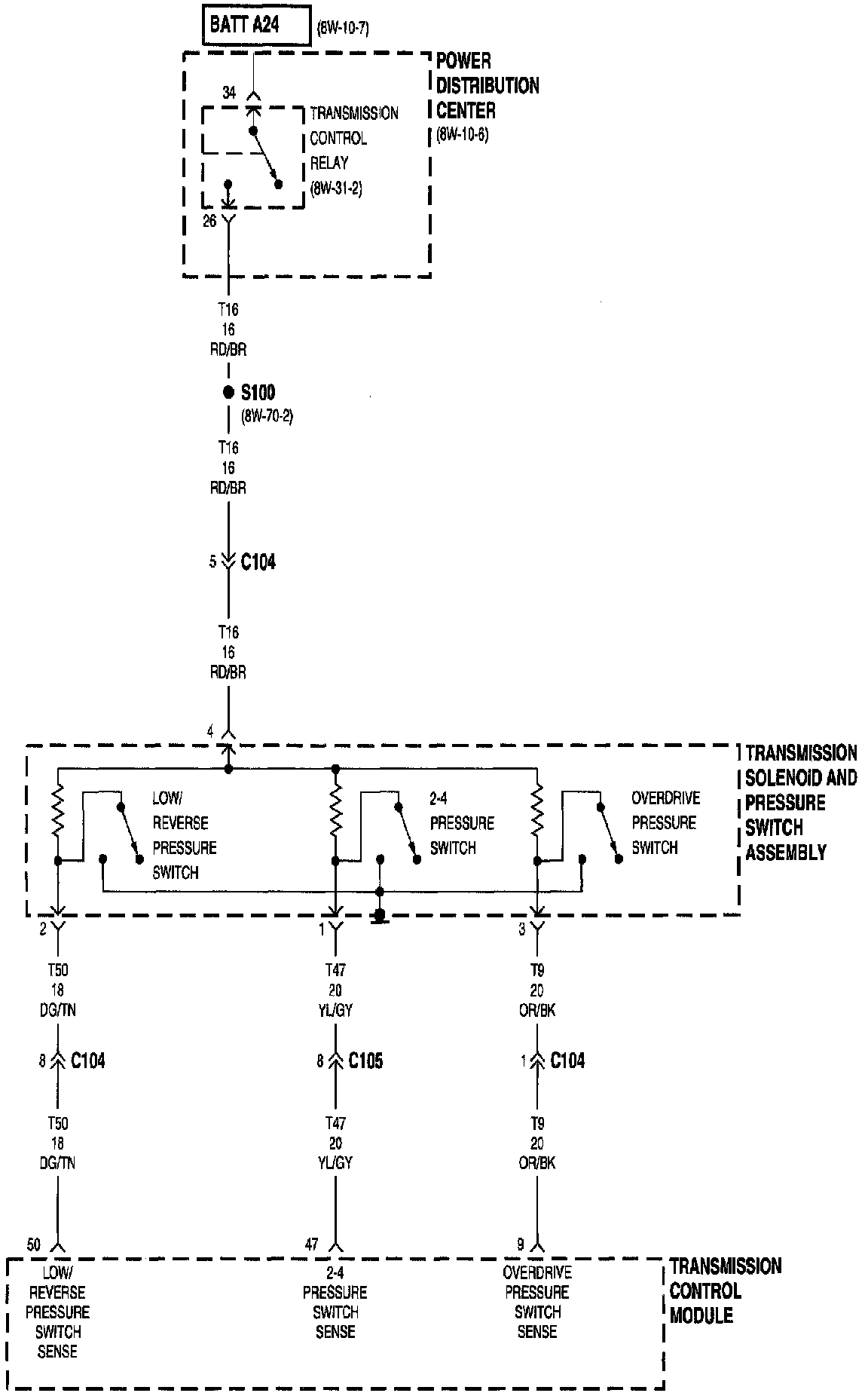

Transmission Control System (Part 5 Of 7):

Low/Reverse Pressure Switch
Overdrive Pressure Switch
Power Distribution Center
Transmission Control Module
Transmission Control Relay
Transmission Solenoid And Pressure Switch Assembly

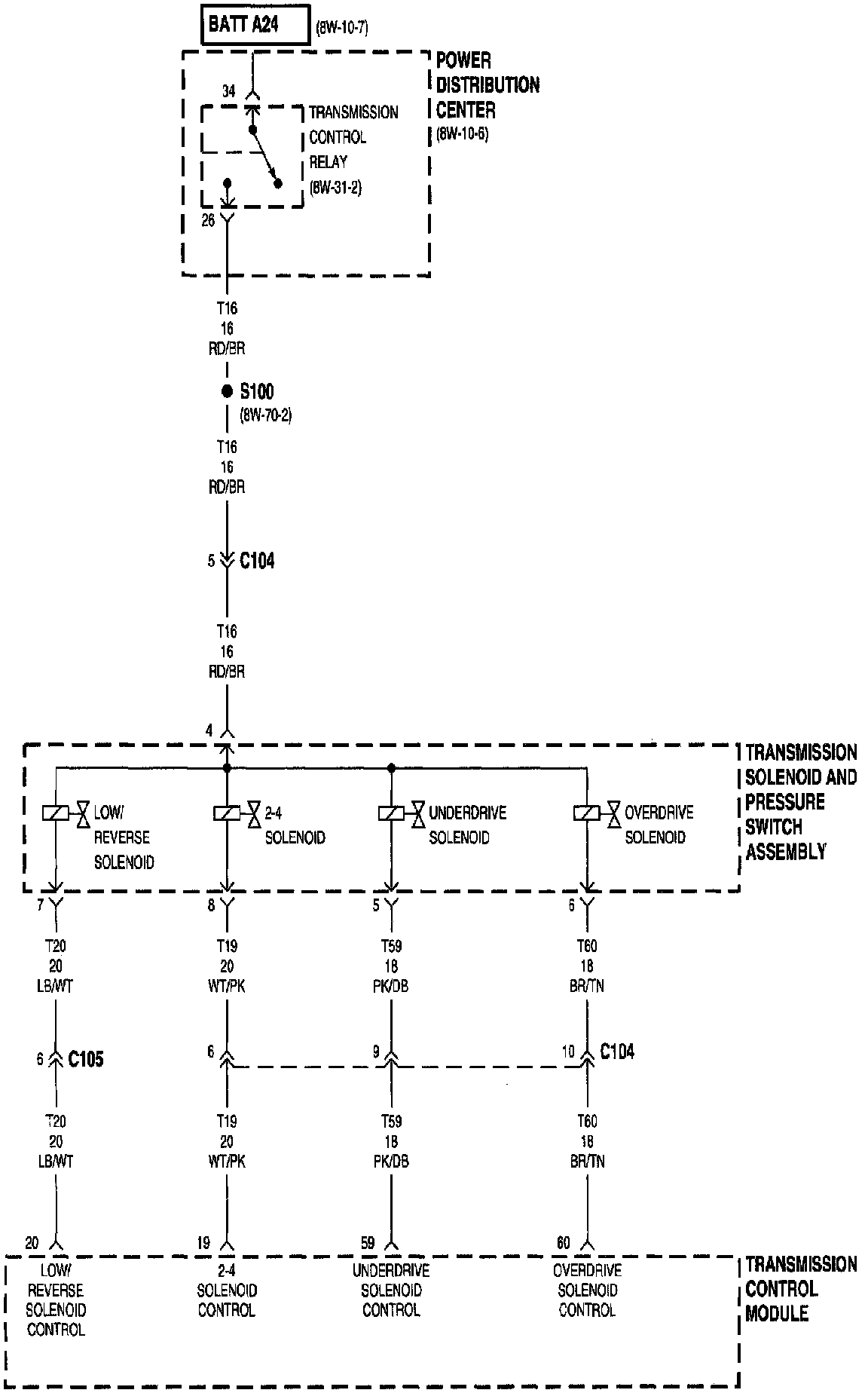

Transmission Control System (Part 6 Of 7):

Low/Reverse Solenoid
Overdrive Solenoid
Power Distribution Center
Transmission Control Module
Transmission Control Relay
Transmission Solenoid And Pressure Switch Assembly
Underdrive Solenoid

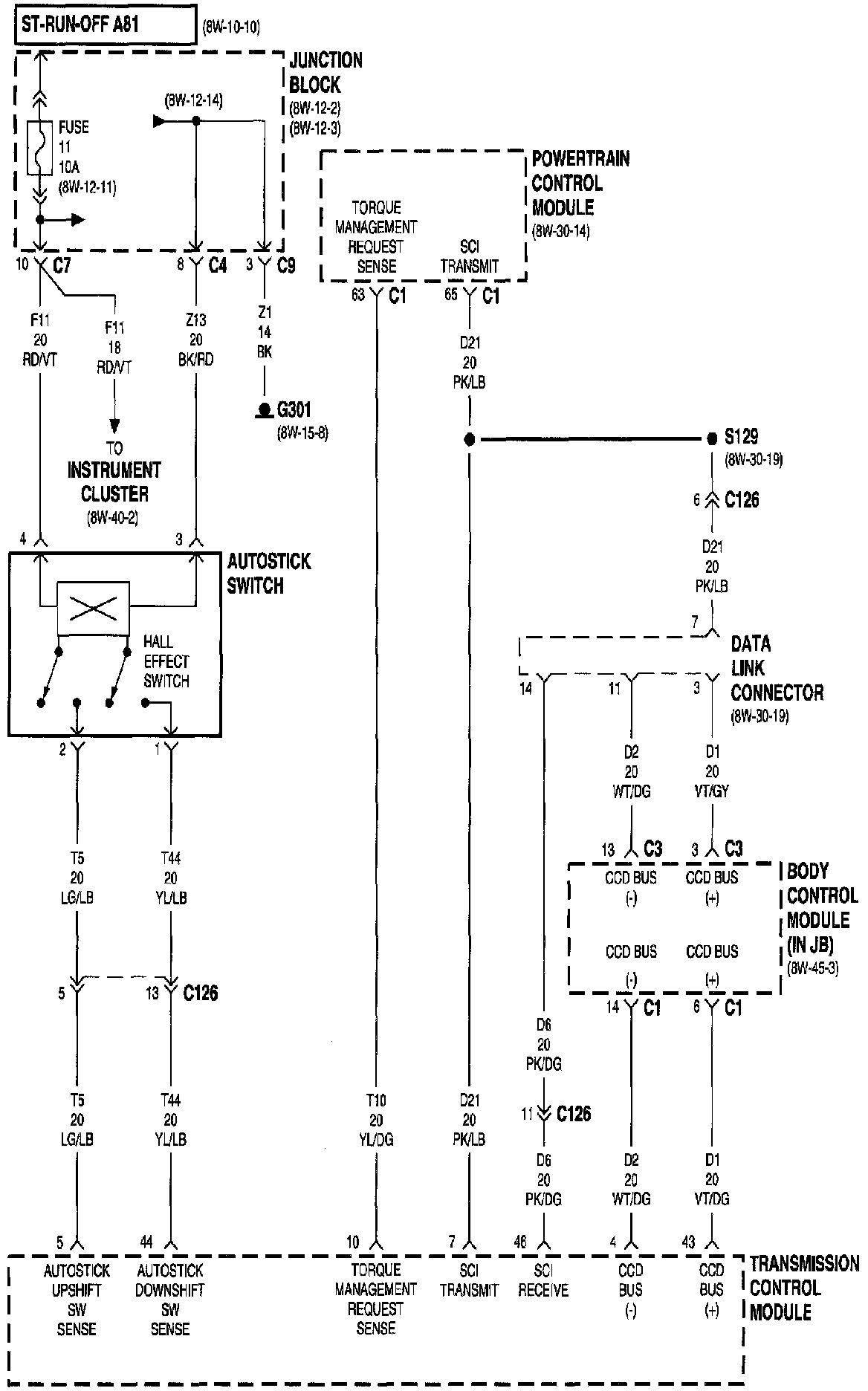

Transmission Control System (Part 7 Of 7):

Autostick Switch
Body Control Module
Data Link Connector
Fuse 11 (JB)
G301
Instrument Cluster
Junction Block
Powertrain Control Module
Transmission Control Module


NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
