Fuel/Ignition Systems - Wiring Schematic Revisions
NUMBER: 26-07-98GROUP: Miscellaneous
DATE: July, 1998
REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN
Models:
1998 Cirrus/Stratus/Breeze Service Manual - Publication Number 81-270-8121
DESCRIPTION OF CHANGES

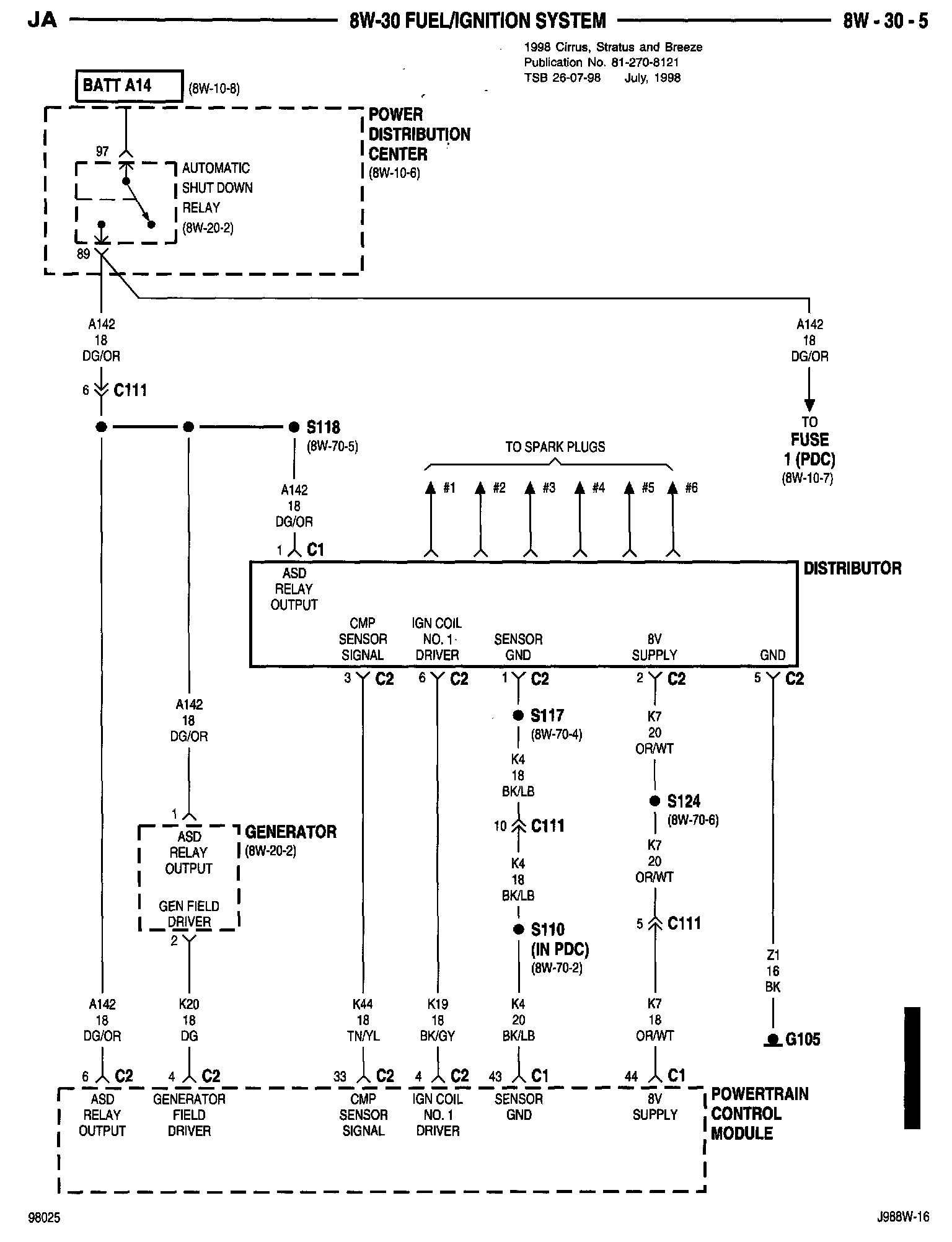

Revisions to the Fuel & Ignition System Wiring Schematics
8W-30-5
