Evaporative Emission Control Canister: Service and Repair

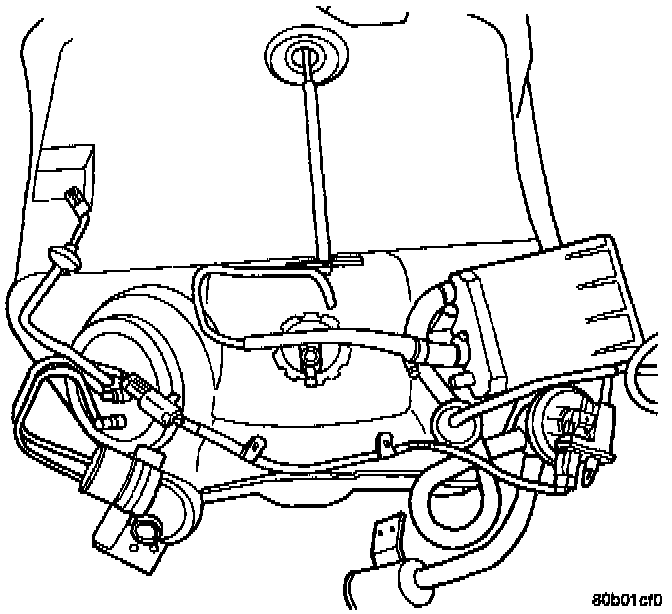

Fig 20 Fuel Tank Assembly:

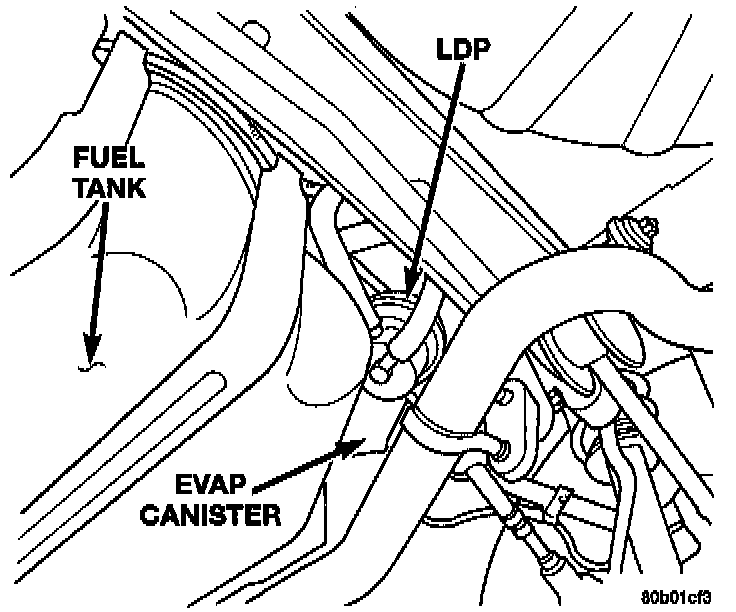

Fig 21 EVAP System:

REMOVAL
1. Release fuel pressure.

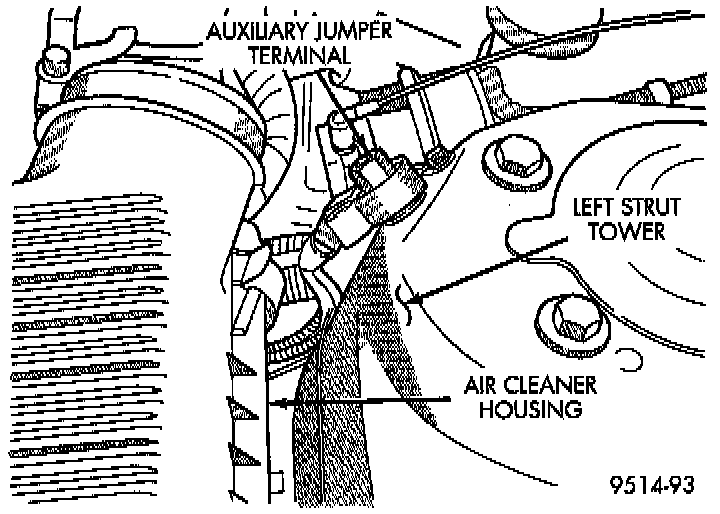

Fig 22 Battery Cable:

Fig 23 EVAP System:

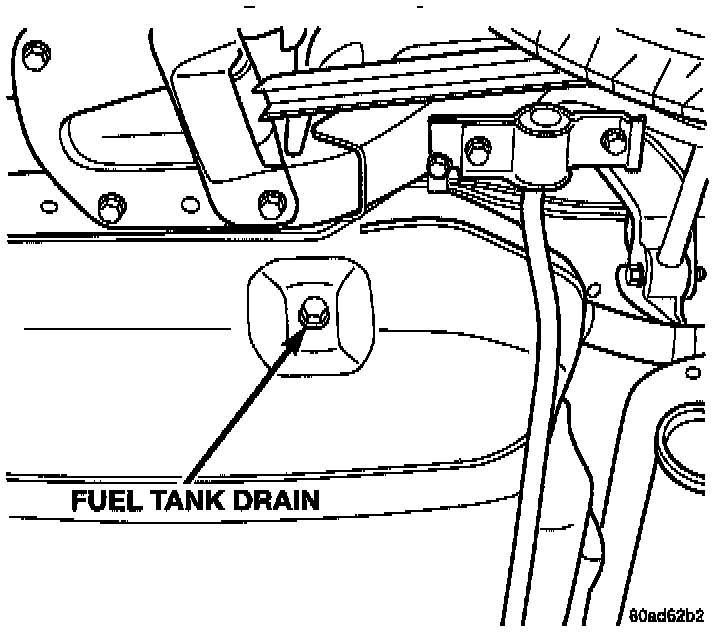

Fig 24 Fuel Tank Drain:

2. Disconnect battery cable (Fig. 22).
3. Raise vehicle and support.
4. Drain fuel tank.

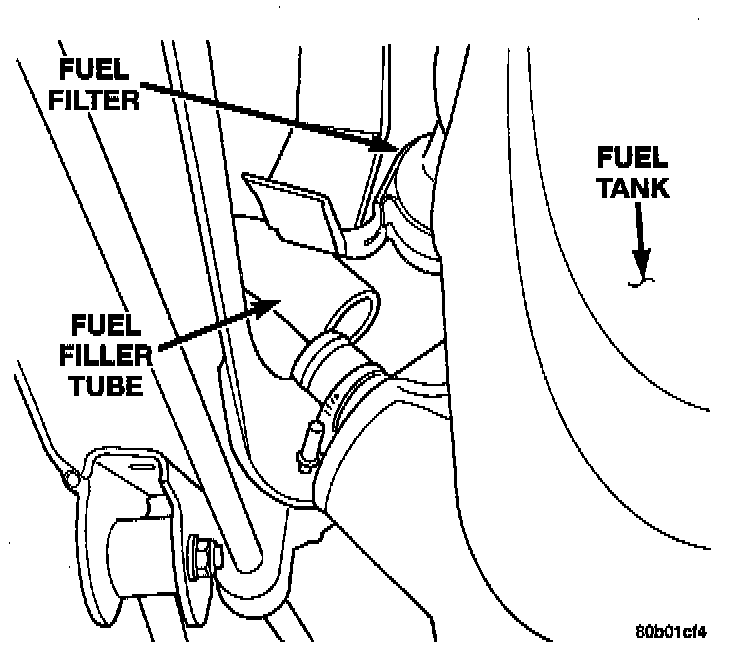

Fig 25 Fuel Filler Tube:

5. Loosen and remove fuel filler tube from fuel tank (Fig. 25).

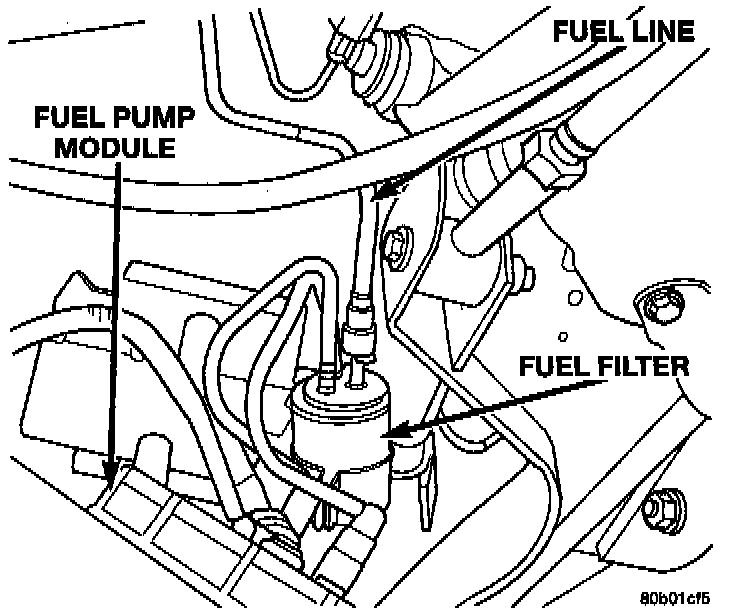

Fig 26 Fuel Line:

6. Disconnect fuel line (Fig. 26).
7. Position transmission jack under fuel tank assembly.
8. Remove fuel tank straps bolts. Passenger side first.

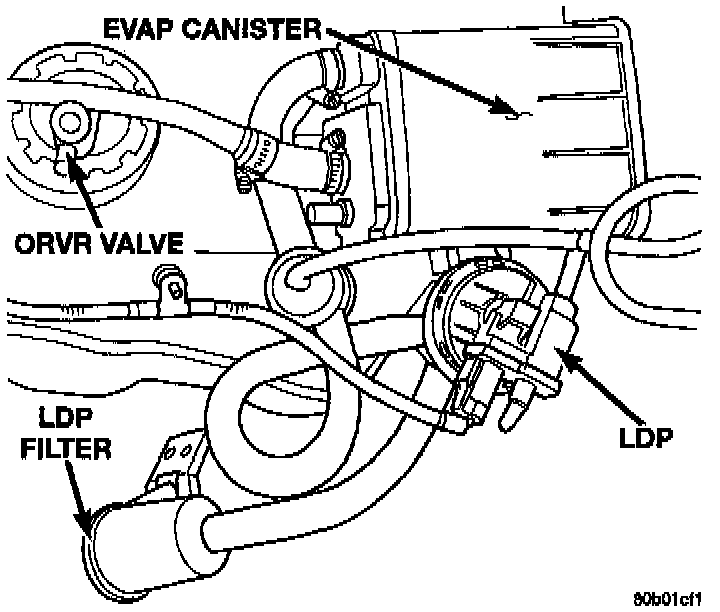

Fig 27 EVAP Components:

9. Lower fuel tank and remove the purge line and vent line (Fig. 27).
10. Remove hoses from EVAP canister.
11. Disconnect electrical connector for Leak Detection Pump (LDP).

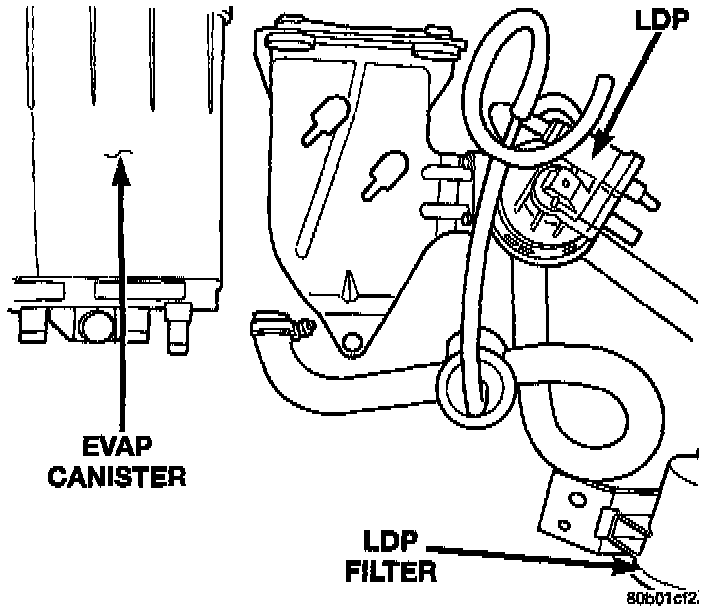

Fig 28 LDP And EVAP Canister:

12. Remove push pin from bracket for EVAP canister (Fig. 28).
- Remove canister.

INSTALLATION
1. Install EVAP canister to bracket install push pin.
2. Install hoses and lines.
3. Raise the fuel tank on the transmission stand.
4. Connect the purge and vent lines.
5. Connect LDP and fuel pump electrical connector.
6. Raise tank into position and install tank straps.
7. Install the fuel filler tube and tighten the clamp.
8. Lower vehicle.
9. Connect the battery cable.
10. Fill fuel tank. Use the DRB scan tool to pressurize the fuel system. Check for leaks.
