With Manual Transaxle

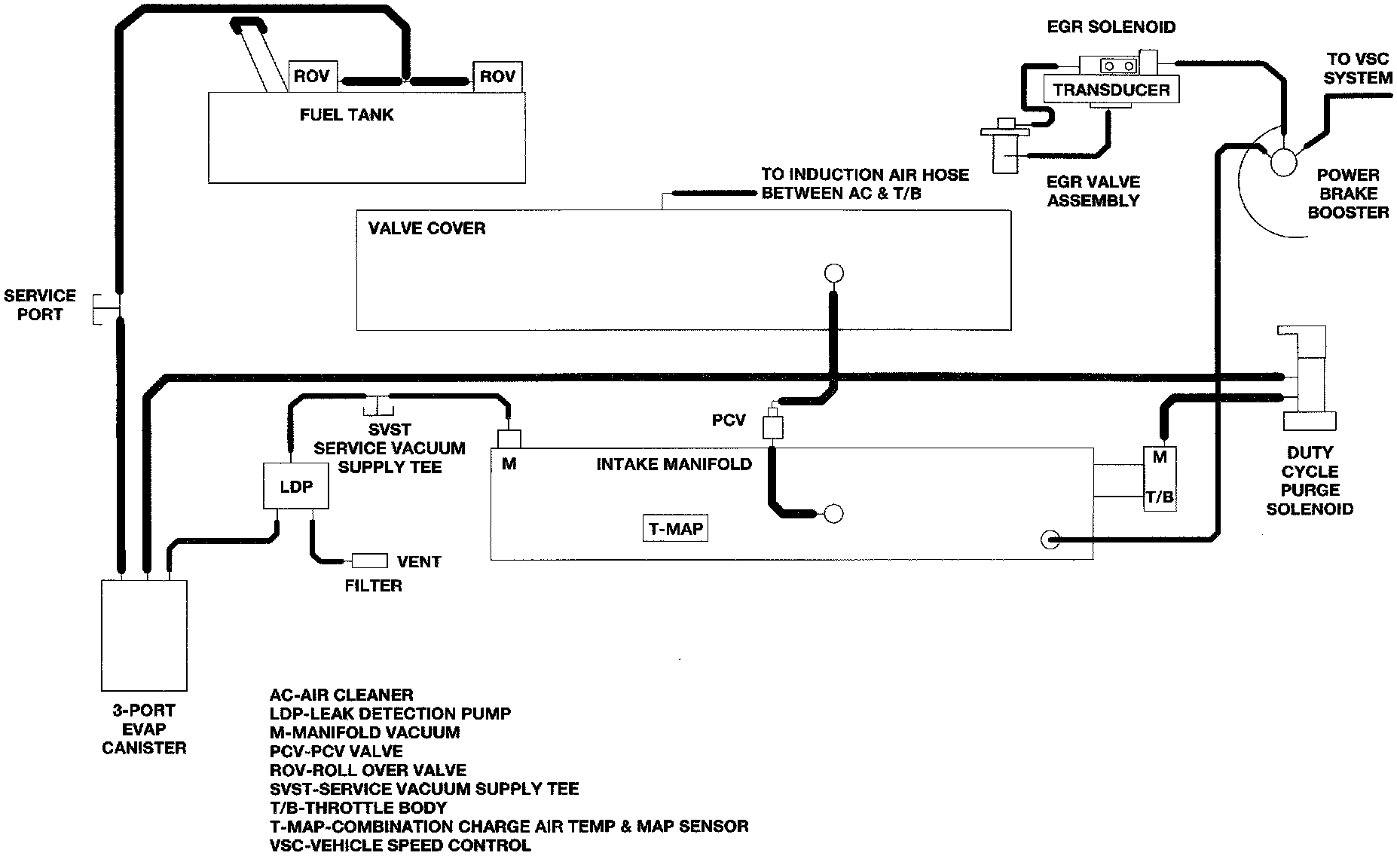

Vacuum Schematic:

NOTE: No Emission Control System vacuum diagrams were published by Chrysler for this year, make, model vehicle. A vacuum schematic for emission related items can be found on the VECI label. If any difference exists between the diagram on the Vehicle Emission Control Information (VECI) label and this illustration, refer to the label on the vehicle.
