Electrical Diagrams: Diagrams

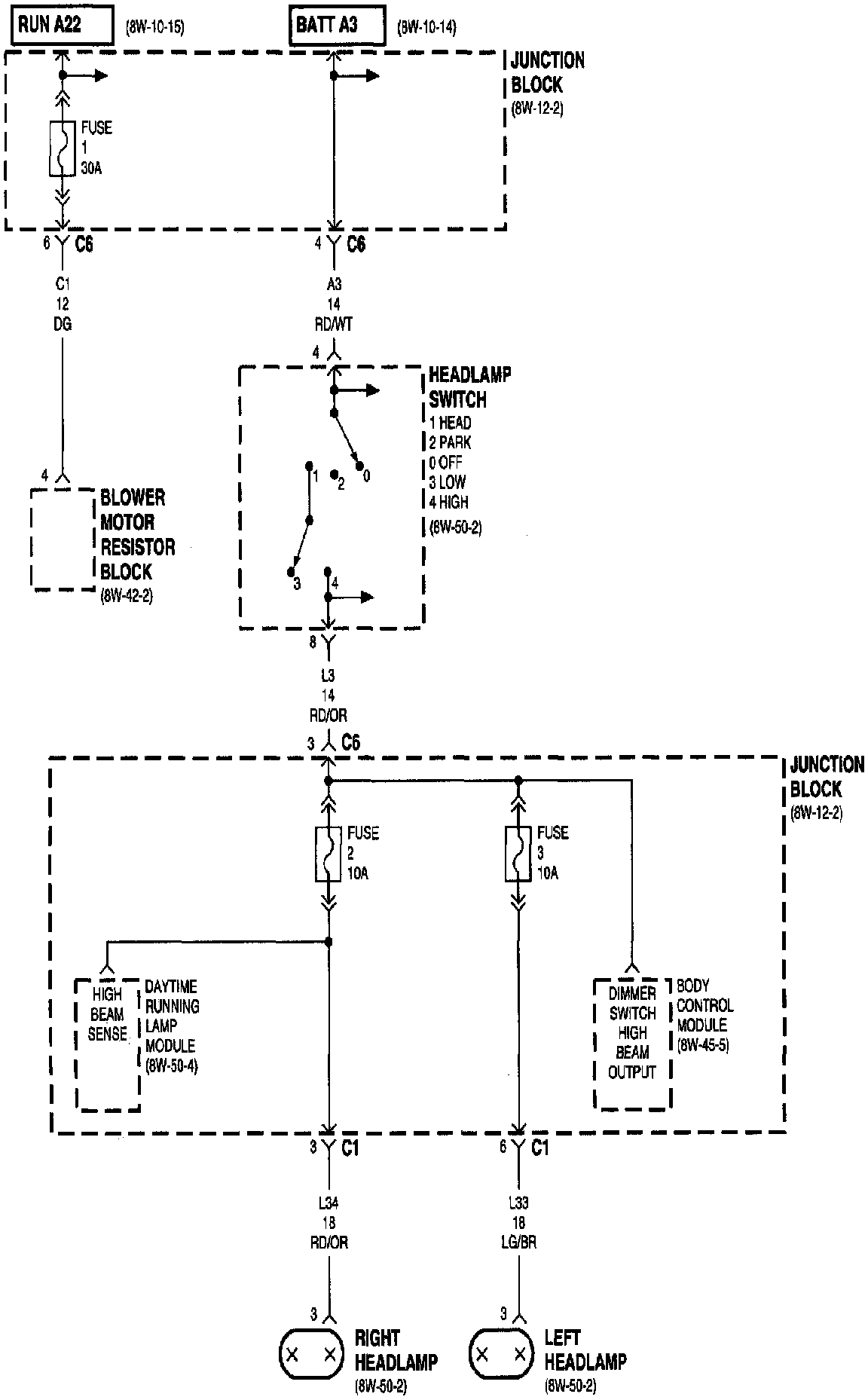

Junction Block (Part 1 Of 13):

Blower Motor Resistor Block
Body Control Module
Daytime Running Lamp Module
Fuse 1 (JB)
Fuse 2 (JB)
Fuse 3 (JB)
Headlamp Switch
Junction Block
Left Headlamp
Right Headlamp

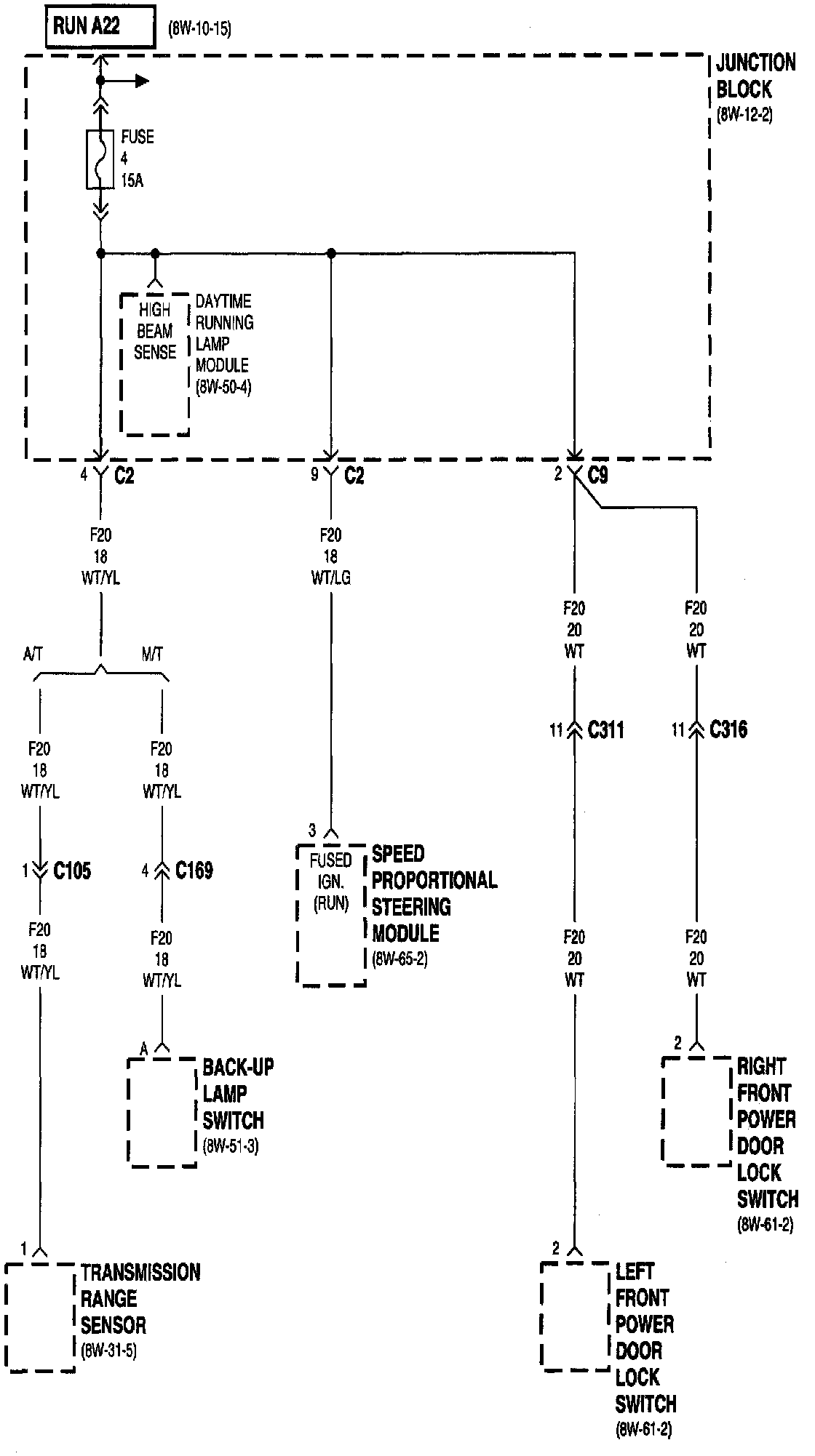

Junction Block (Part 2 Of 13):

Back-Up Lamp Switch
Daytime Running Lamp Module
Fuse 4 (JB)
Junction Block
Right Front Power Door Lock Switch
Speed Proportional Steering Module
Stop Lamp Switch
Transmission Range Sensor

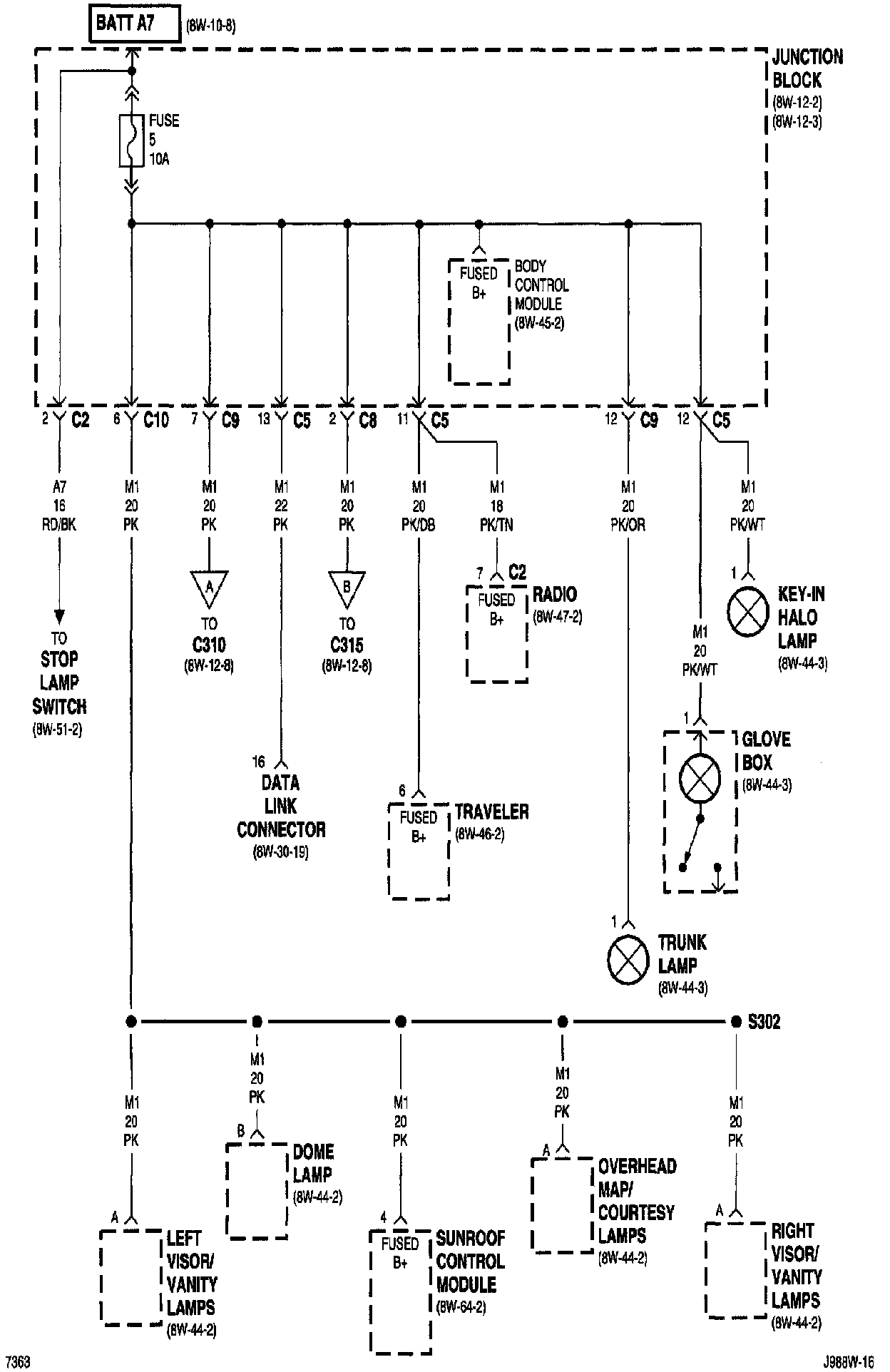

Junction Block (Part 3 Of 13):

Body Control Module
Data Link Connector
Dome Lamp
Fuse 5 (JB)
Glove Box
Junction Block
Key-In Halo Lamp
Left Front Power Door Lock Switch
Left Visor/Vanity Lamps
Overhead Map/Courtesy Lamps
Radio
Right Visor/Vanity Lamps
Stop Lamp Switch
Sunroof Control Module
Traveler
Trunk Lamp

Junction Block (Part 4 Of 13):

Left Front Door Arm/Disarm Switch
Left Front Power Door Lock Switch
Power Mirror Switch
Right Front Door Arm/Disarm Switch
Right Front Power Door Lock Switch

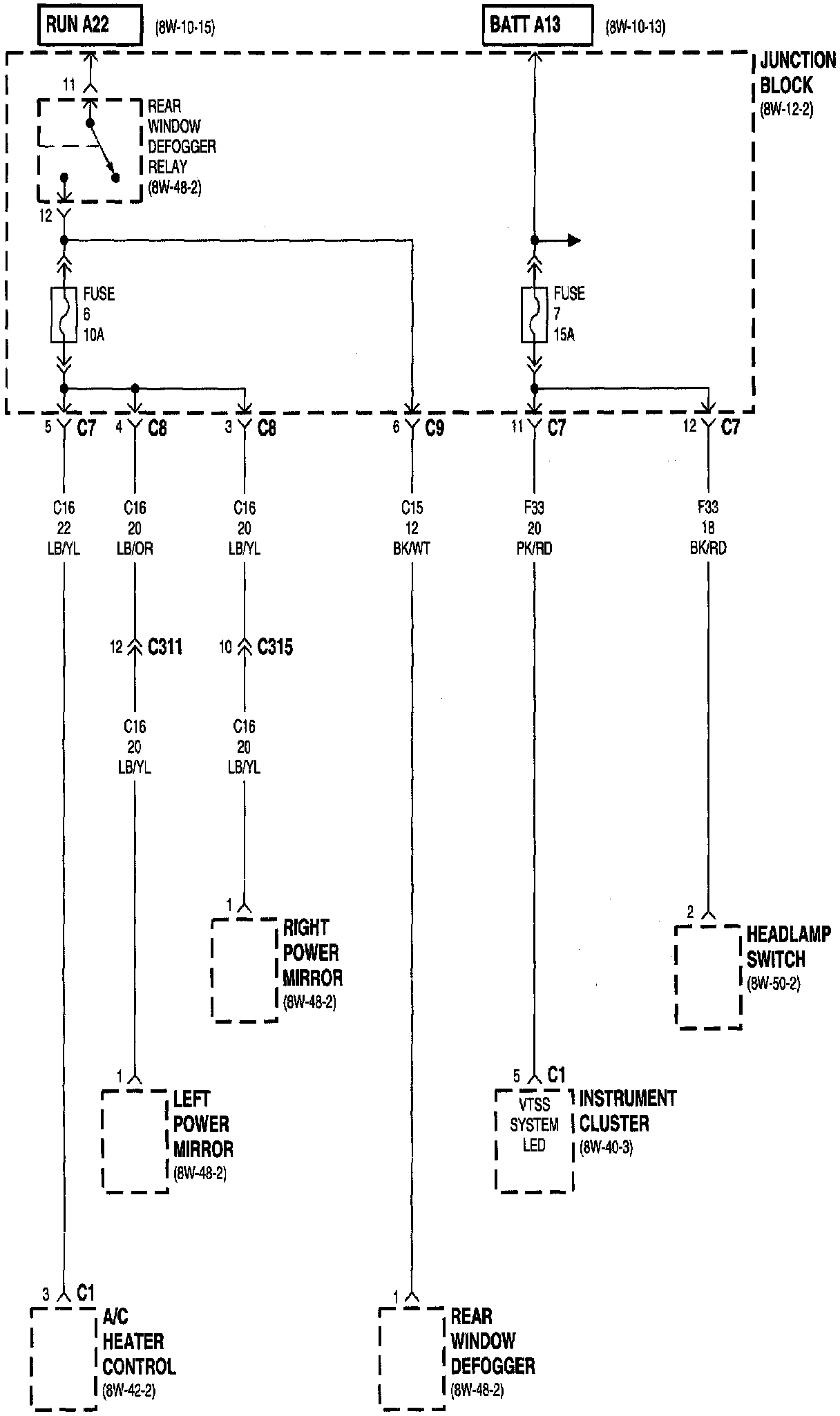

Junction Block (Part 5 Of 13):

A/C Heater Control
Fuse 6 (JB)
Fuse 7 (JB)
Headlamp Switch
Instrument Cluster
Junction Block
Left Power Mirror
Rear Window Defogger
Rear Window Defogger Relay
Right Power Mirror

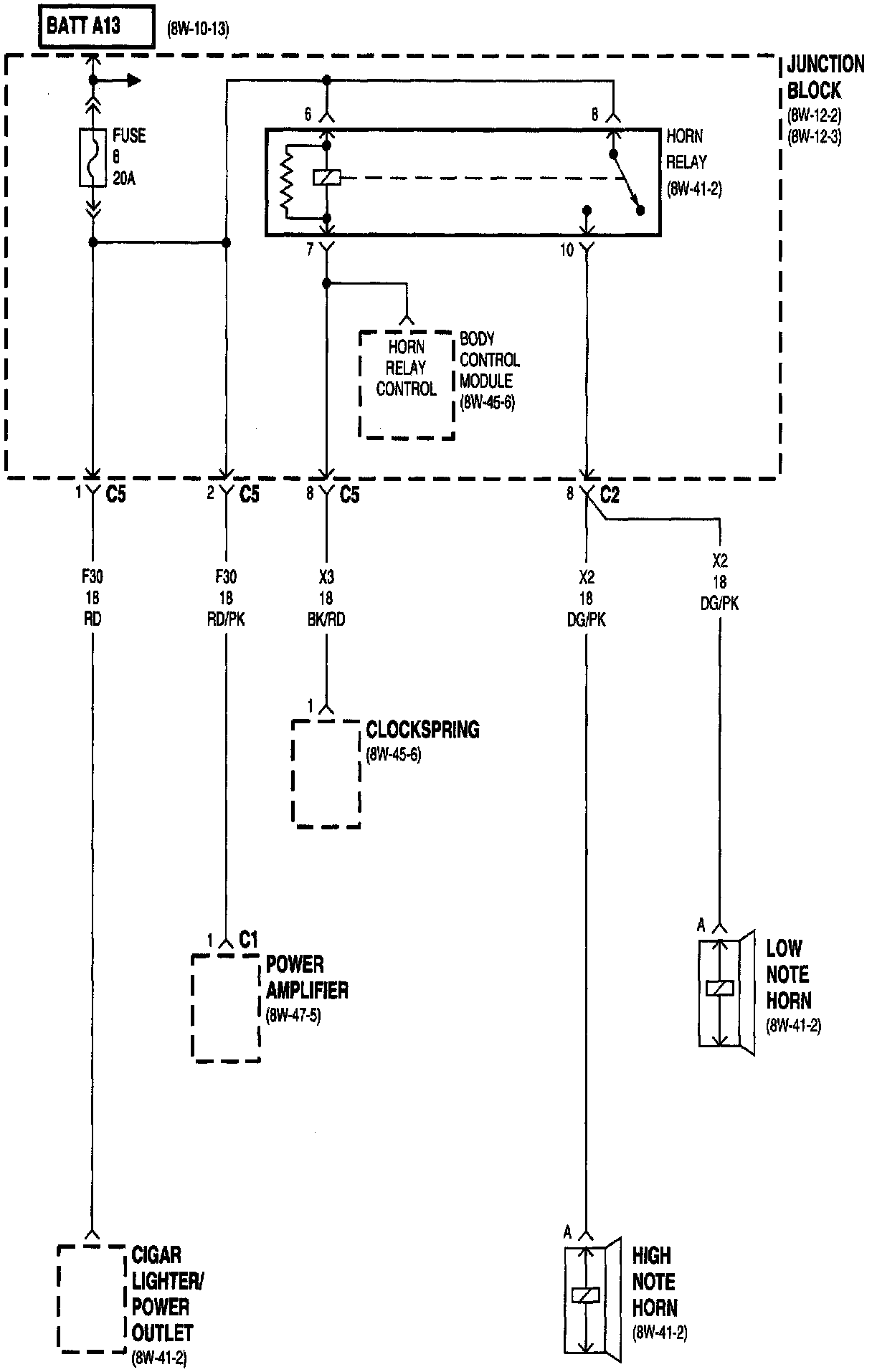

Junction Block (Part 6 Of 13):

Body Control Module
Cigar Lighter/Power Outlet
Clockspring
Fuse 8 (JB)
High Note Horn
Horn Relay
Junction Block
Low Note Horn
Power Amplifier

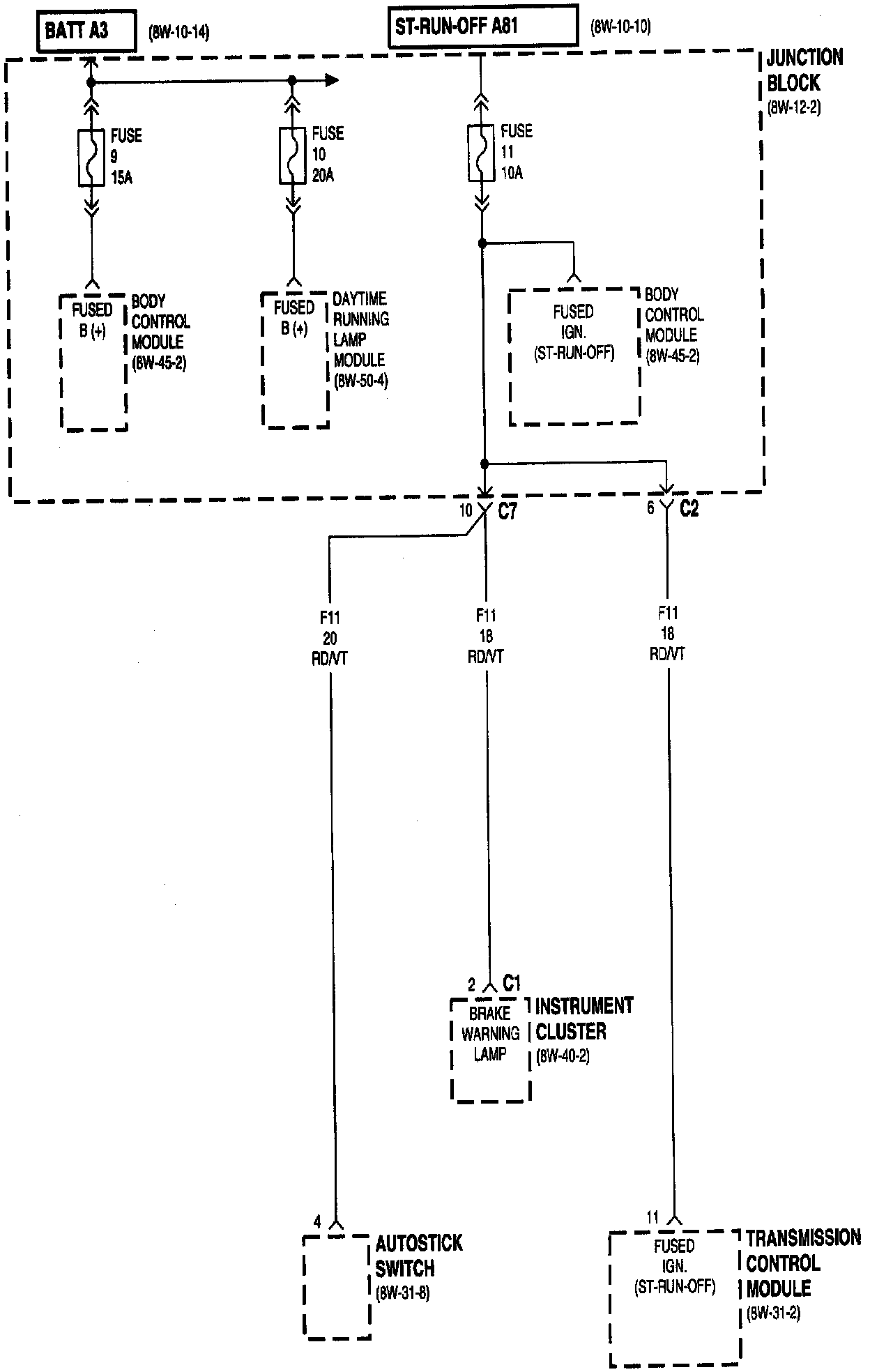

Junction Block (Part 7 Of 13):

Autostick Switch
Body Control Module
Daytime Running Lamp Module
Fuse 9 (JB)
Fuse 10 (JB)
Fuse 11 (JB)
Instrument Cluster
Junction Block
Transmission Control Module

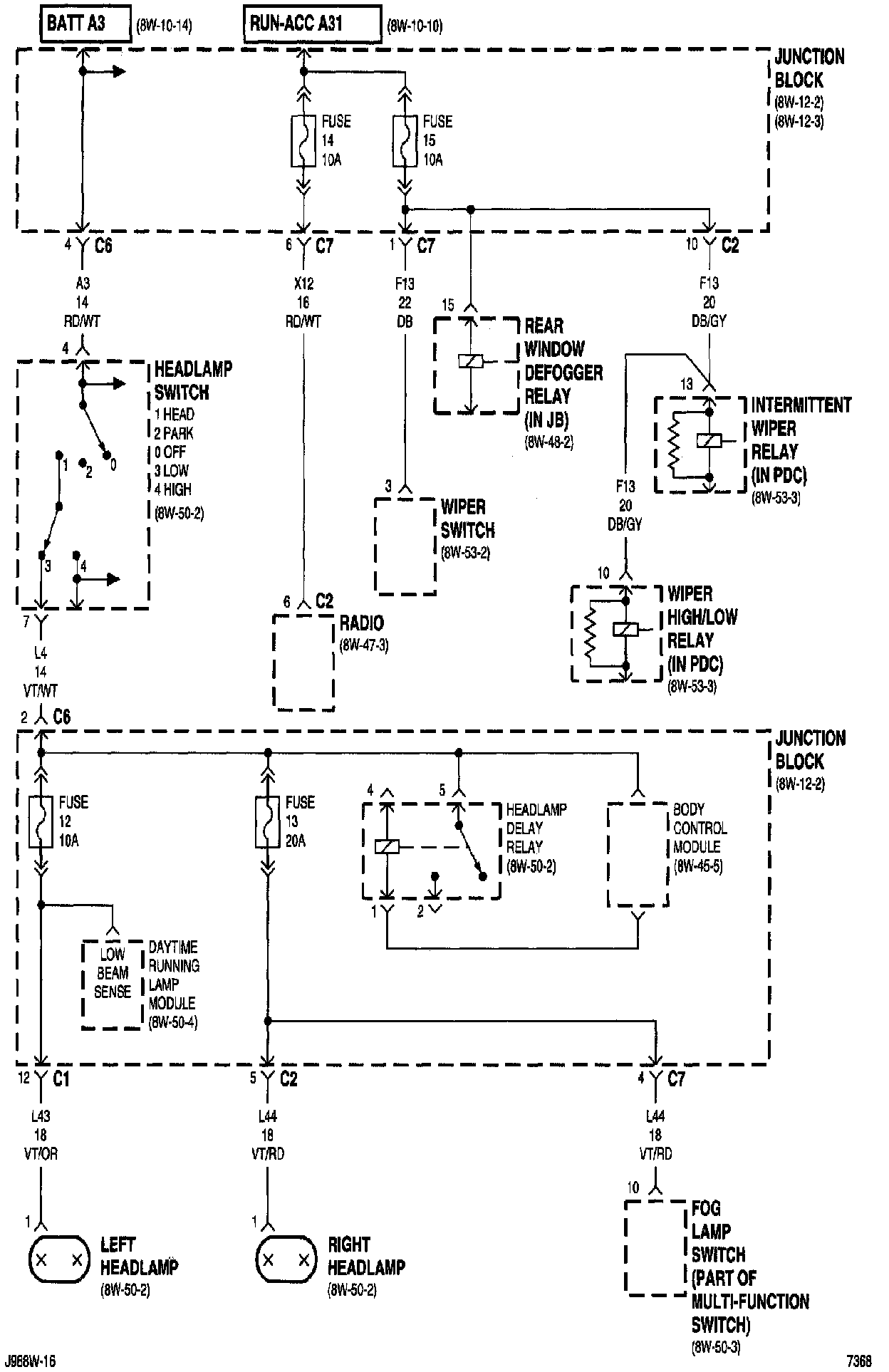

Junction Block (Part 8 Of 13):

Body Control Module
Daytime Running Lamp Module
Fog Lamp Switch
Fuse 12 (JB)
Fuse 13 (JB)
Fuse 14 (JB)
Fuse 15 (JB)
Headlamp Delay Relay
Headlamp Switch
Intermittent Wiper Relay
Junction Block
Left Headlamp
Radio
Rear Window Defogger Relay
Right Headlamp
Wiper High/Low Relay
Wiper Switch

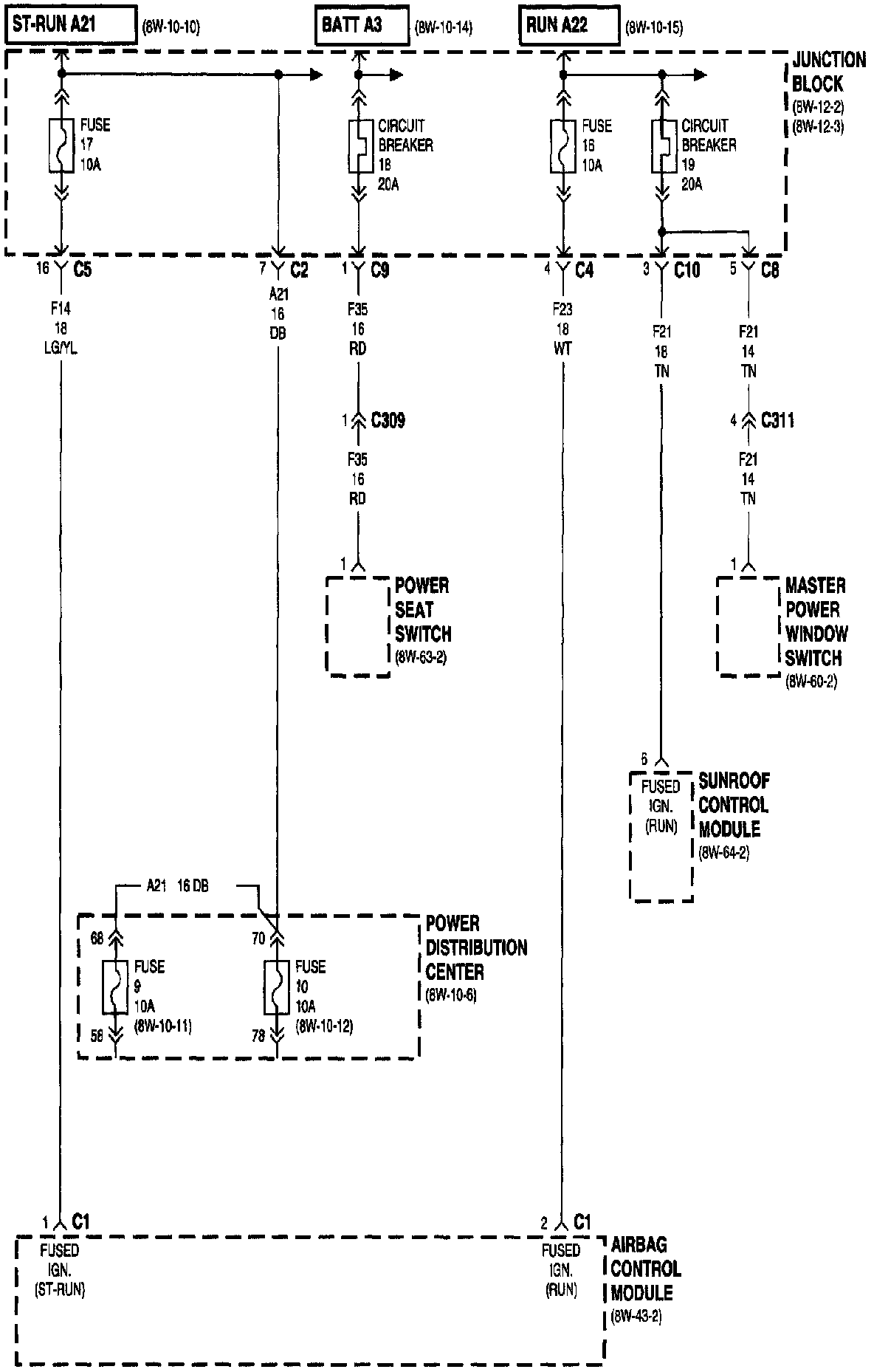

Junction Block (Part 9 Of 13):

Airbag Control Module
Circuit Breaker 18 (JB)
Circuit Breaker 19 (JB)
Fuse 9 ([1][2]PDC)
Fuse 10 ([1][2]PDC)
Fuse 16 (JB)
Fuse 17 (JB)
Junction Block
Master Power Window Switch
Power Distribution Center
Power Seat Switch
Sunroof Control Module

Junction Block (Part 10 Of 13):

Autostick Switch
Body Control Module
Data Link Connector
Daytime Running Lamp Module

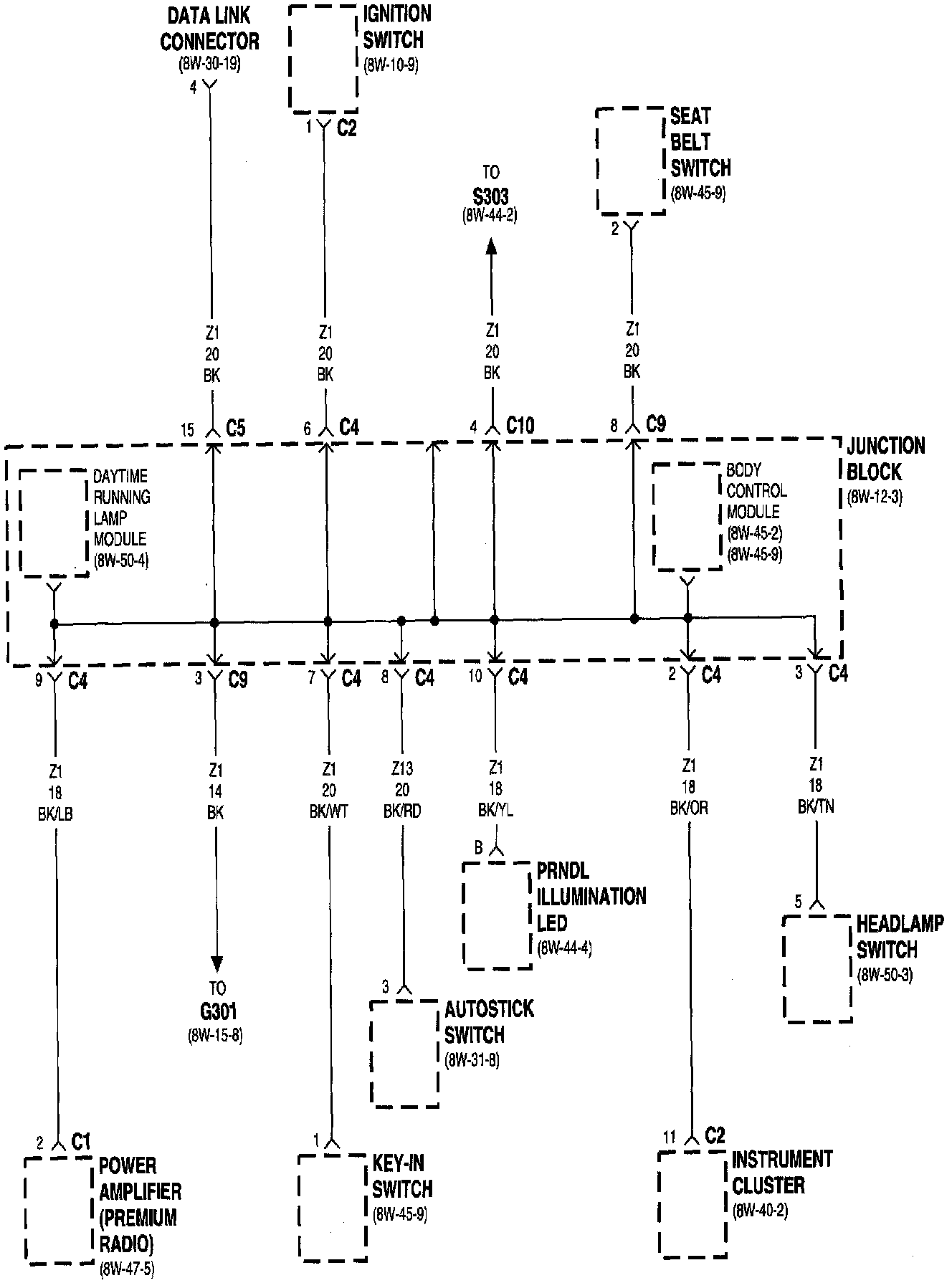

G301
Headlamp Switch
Ignition Switch
Instrument Cluster
Junction Block
Key-In Switch
Power Amplifier
PRNDL Illumination Led
Seat Belt Switch

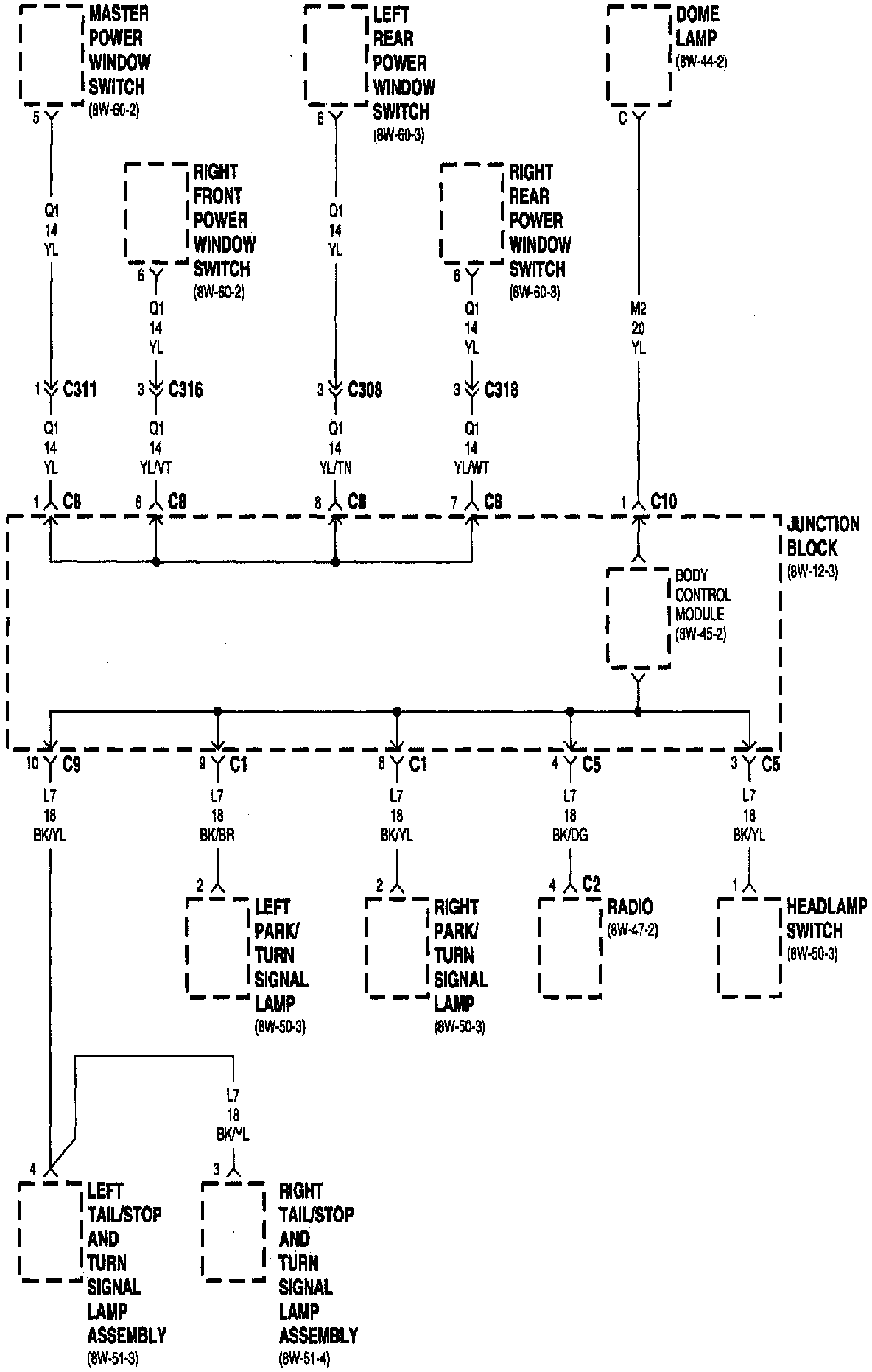

Junction Block (Part 11 Of 13):

Body Control Module
Junction Block
Left Park/Turn Signal Lamp
Master Power Window Switch
Radio
Right Front Power Window Switch
Right Park/Turn Signal Lamp
Right Rear Power Window Switch
Right Tail/Stop And Turn Signal Lamp Assembly

Junction Block (Part 12 Of 13):

Brake Warning Pressure Switch
Controller Anti-Lock Brake
Daytime Running Lamp Module
Fog Lamp Switch
Ignition Switch
Instrument Cluster
Junction Block
Left Fog Lamp
Park Brake Switch
Right Fog Lamp
Stop Lamp Switch

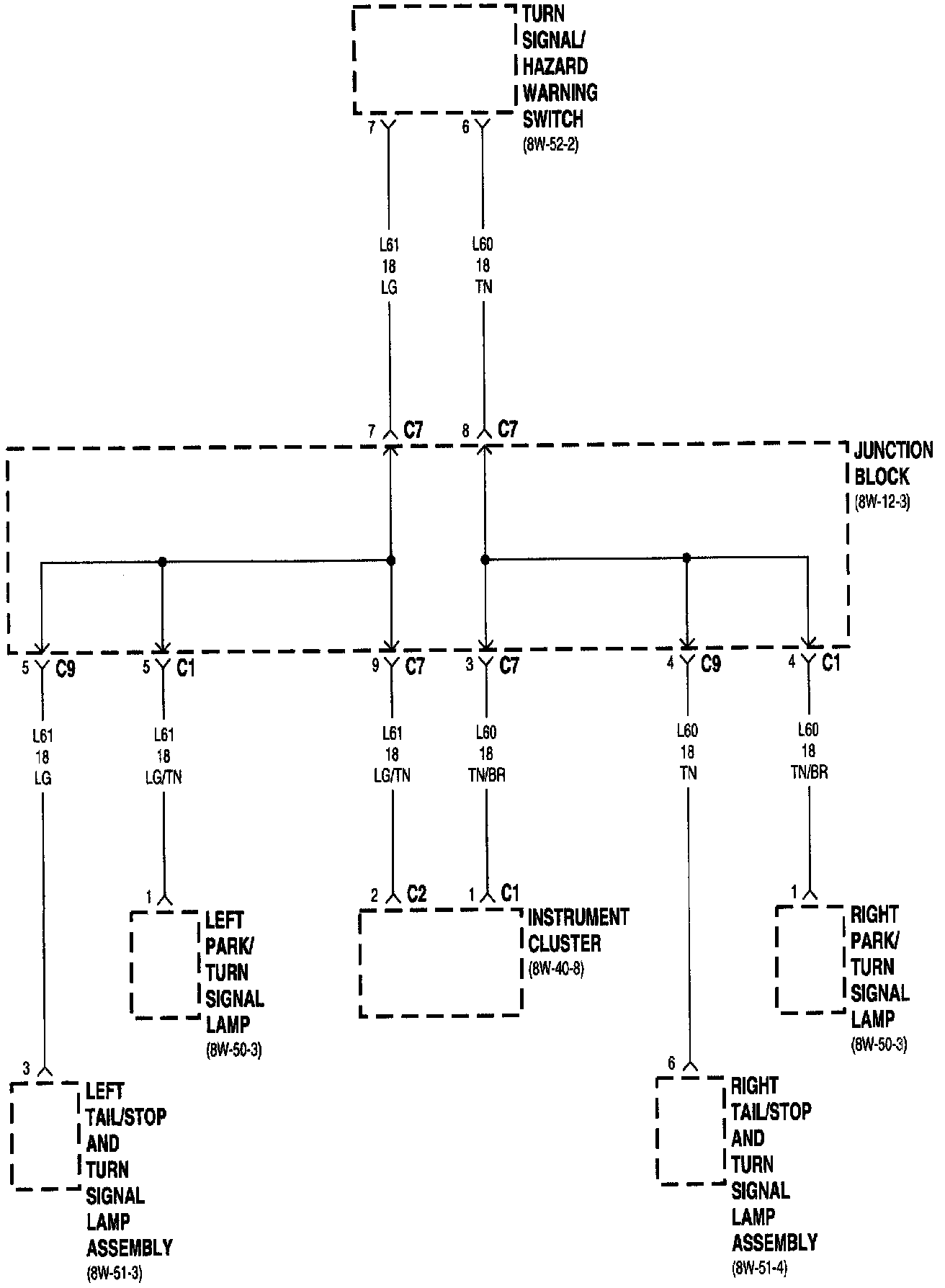

Junction Block (Part 13 Of 13):

Instrument Cluster
Junction Block
Left Park/Turn Signal Lamp
Left Tail/Stop And Turn Signal Lamp Assembly
Right Park/Turn Signal Lamp
Right Tail/Stop And Turn Signal Lamp Assembly
Turn Signal/Hazard Warning Switch


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
