Removal and Installation

The content of this article reflects changes called for in TSB 26-04-98.

AIR CONDITIONING COMPRESSOR AND GENERATOR BELT

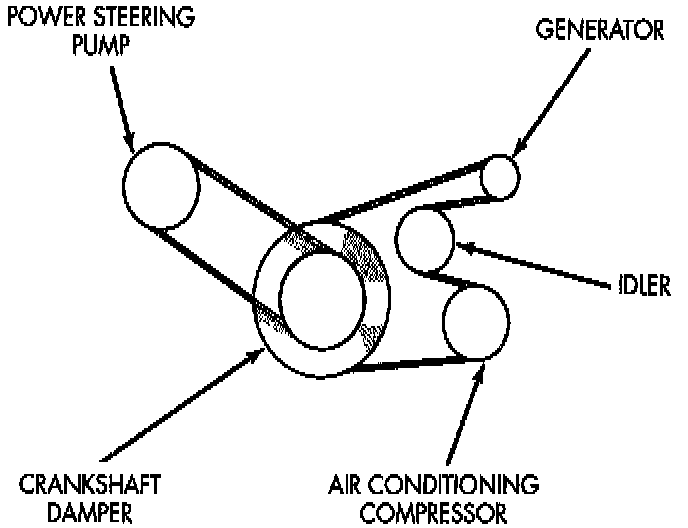

Accessory Drive Belt System - All Engines:

Accessory Drive Belt System - All Engines

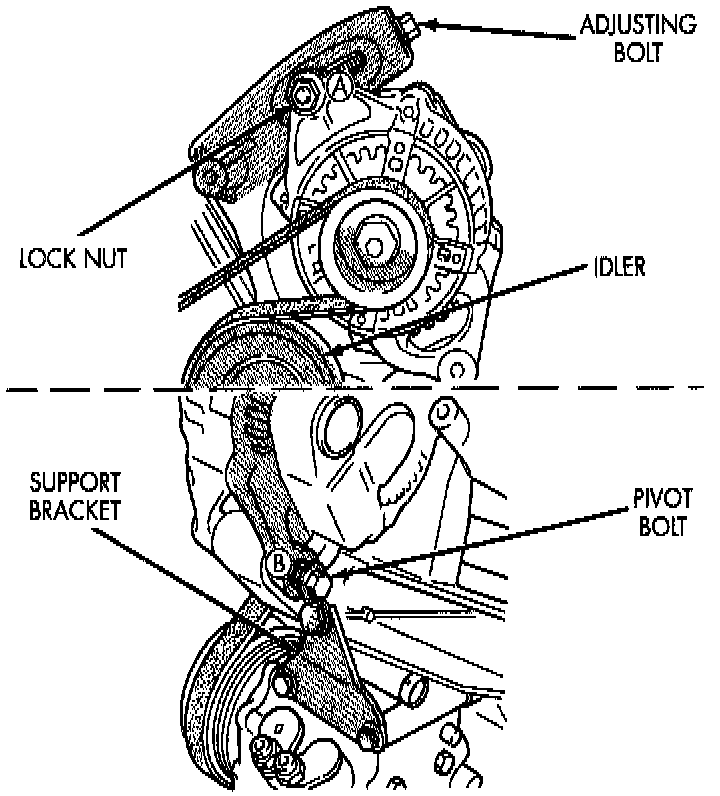

1. Loosen T-Bolt locking nut A and pivot bolt B to remove and install Poly V belt and/or adjust belt tension.
2. Tighten adjusting bolt to adjust belt tension to specification.

Air Conditioning Compressor And Generator Belt Adjustment:

3. Tighten T-Bolt locking nut A and pivot bolt B to 54 Nm (40 ft. lbs.).

POWER STEERING PUMP BELT

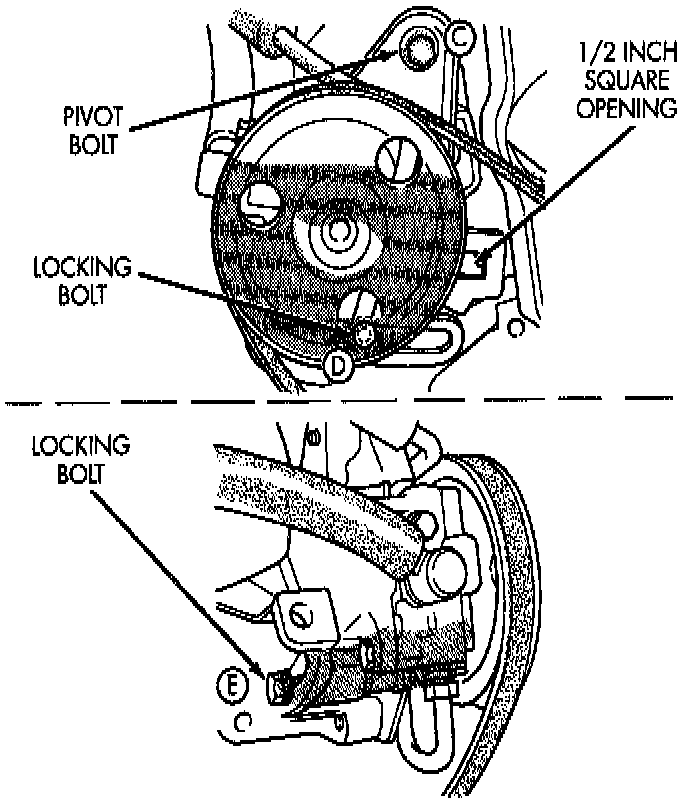

1. From the top of the vehicle loosen pivot bolt C.

Power Steering Belt Adjustment:

2. From under the vehicle loosen locking bolts D and E.
3. Install the belt. Adjust belt tension with 1/2 inch breaker bar installed in adjusting bracket.

NOTE: For accessory drive belt specifications, Adjustments

4. Tighten locking bolt D to 54 Nm (40 ft. lbs.).
5. Tighten locking bolt E and the pivot bolt C to 54 Nm (40 ft. lbs.).
